Optidrive Eco User Guide Revision 2.01
Using the Keypad & LED Display on IP20 Frame Size 2 & 3

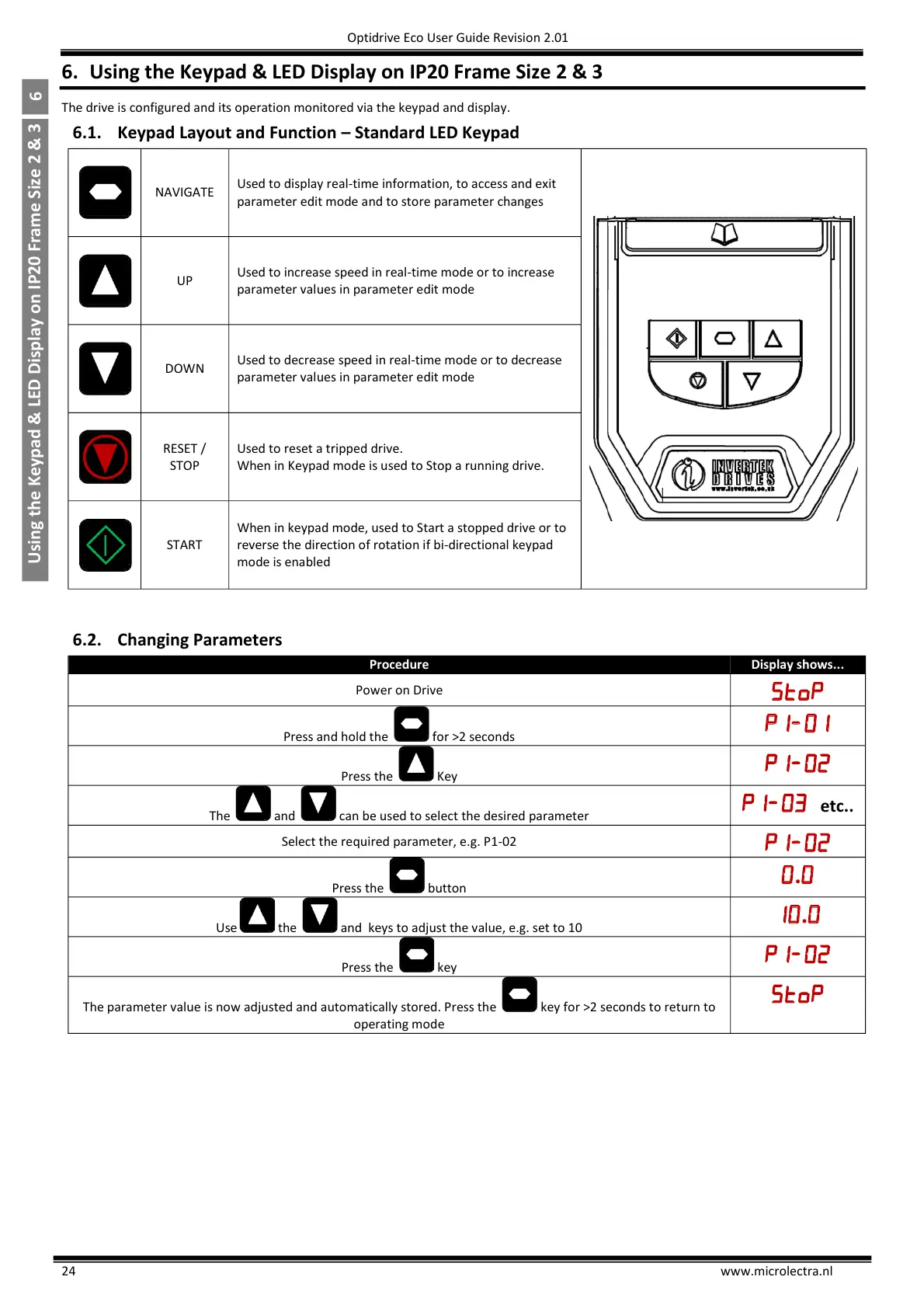

6. Using the Keypad & LED Display on IP20 Frame Size 2 & 3
The drive is configured and its operation monitored via the keypad and display.
6.1. Keypad Layout and Function – Standard LED Keypad
Used to display real-time information, to access and exit
parameter edit mode and to store parameter changes
Used to increase speed in real-time mode or to increase
parameter values in parameter edit mode
Used to decrease speed in real-time mode or to decrease
parameter values in parameter edit mode
Used to reset a tripped drive.
When in Keypad mode is used to Stop a running drive.
When in keypad mode, used to Start a stopped drive or to
reverse the direction of rotation if bi-directional keypad
mode is enabled
Press and hold the for >2 seconds
The and can be used to select the desired parameter
Select the required parameter, e.g. P1-02
Use the and keys to adjust the value, e.g. set to 10
The parameter value is now adjusted and automatically stored. Press the key for >2 seconds to return to
operating mode
