Technical Data
12

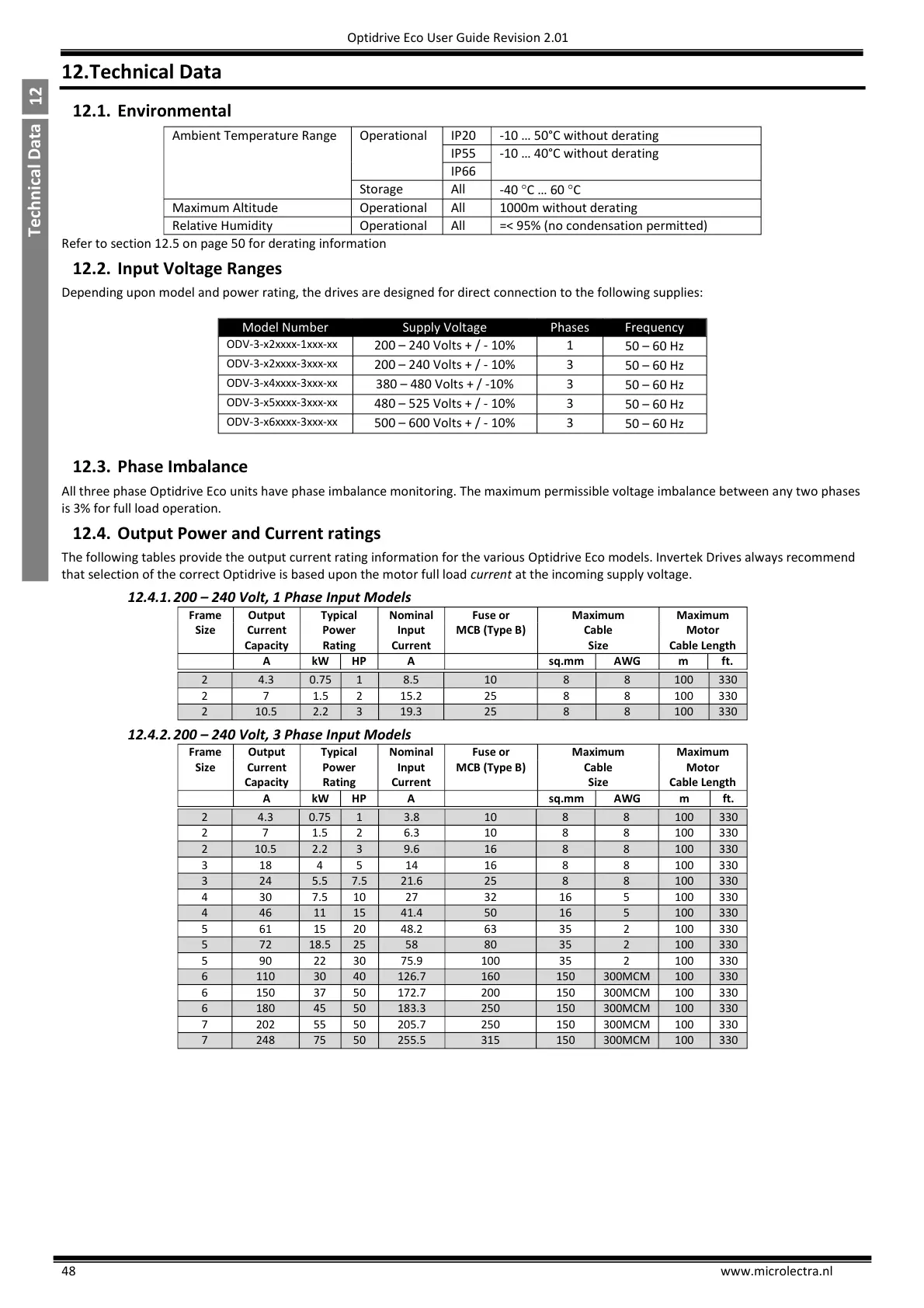

12.Technical Data
12.1. Environmental
Ambient Temperature Range
Operational
IP20
-10,,50°C,without,derating
IP55
-10,,40°C,without,derating
IP66
Storage
All
-40 C,,60,C
Maximum Altitude
Operational
All
1000m without derating
Relative Humidity
Operational
All
=< 95% (no condensation permitted)
Refer to section 12.5 on page 50 for derating information
12.2. Input Voltage Ranges
Depending upon model and power rating, the drives are designed for direct connection to the following supplies:
Model Number
Supply Voltage
Phases
Frequency
ODV-3-x2xxxx-1xxx-xx
200 – 240 Volts + / - 10%
1
50 – 60 Hz
ODV-3-x2xxxx-3xxx-xx
200 – 240 Volts + / - 10%
3
50 – 60 Hz
ODV-3-x4xxxx-3xxx-xx
380 – 480 Volts + / -10%
3
50 – 60 Hz
ODV-3-x5xxxx-3xxx-xx
480 – 525 Volts + / - 10%
3
50 – 60 Hz
ODV-3-x6xxxx-3xxx-xx
500 – 600 Volts + / - 10%
3
50 – 60 Hz
12.3. Phase Imbalance
All three phase Optidrive Eco units have phase imbalance monitoring. The maximum permissible voltage imbalance between any two phases
is 3% for full load operation.
12.4. Output Power and Current ratings
The following tables provide the output current rating information for the various Optidrive Eco models. Invertek Drives always recommend
that selection of the correct Optidrive is based upon the motor full load current at the incoming supply voltage.
12.4.1. 200 – 240 Volt, 1 Phase Input Models
Frame
Output
Typical
Nominal
Fuse or
Maximum
Maximum
Size
Current
Power
Input
MCB (Type B)
Cable
Motor
Capacity
Rating
Current
Size
Cable Length
A
kW
HP
A
sq.mm
AWG
m
ft.
2
4.3
0.75
1
8.5
10
8
8
100
330
2
7
1.5
2
15.2
25
8
8
100
330
2
10.5
2.2
3
19.3
25
8
8
100
330
12.4.2. 200 – 240 Volt, 3 Phase Input Models
Frame
Output
Typical
Nominal
Fuse or
Maximum
Maximum
Size
Current
Power
Input
MCB (Type B)
Cable
Motor
Capacity
Rating
Current
Size
Cable Length
A
kW
HP
A
sq.mm
AWG
m
ft.
2
4.3
0.75
1
3.8
10
8
8
100
330
2
7
1.5
2
6.3
10
8
8
100
330
2
10.5
2.2
3
9.6
16
8
8
100
330
3
18
4
5
14
16
8
8
100
330
3
24
5.5
7.5
21.6
25
8
8
100
330
4
30
7.5
10
27
32
16
5
100
330
4
46
11
15
41.4
50
16
5
100
330
5
61
15
20
48.2
63
35
2
100
330
5
72
18.5
25
58
80
35
2
100
330
5
90
22
30
75.9
100
35
2
100
330
6
110
30
40
126.7
160
150
300MCM
100
330
6
150
37
50
172.7
200
150
300MCM
100
330
6
180
45
50
183.3
250
150
300MCM
100
330
7
202
55
50
205.7
250
150
300MCM
100
330
7
248
75
50
255.5
315
150
300MCM
100
330
