Optidrive Eco User Guide Revision 2.01
Using the OLED Keypad (Standard on IP55 & IP66 Units)

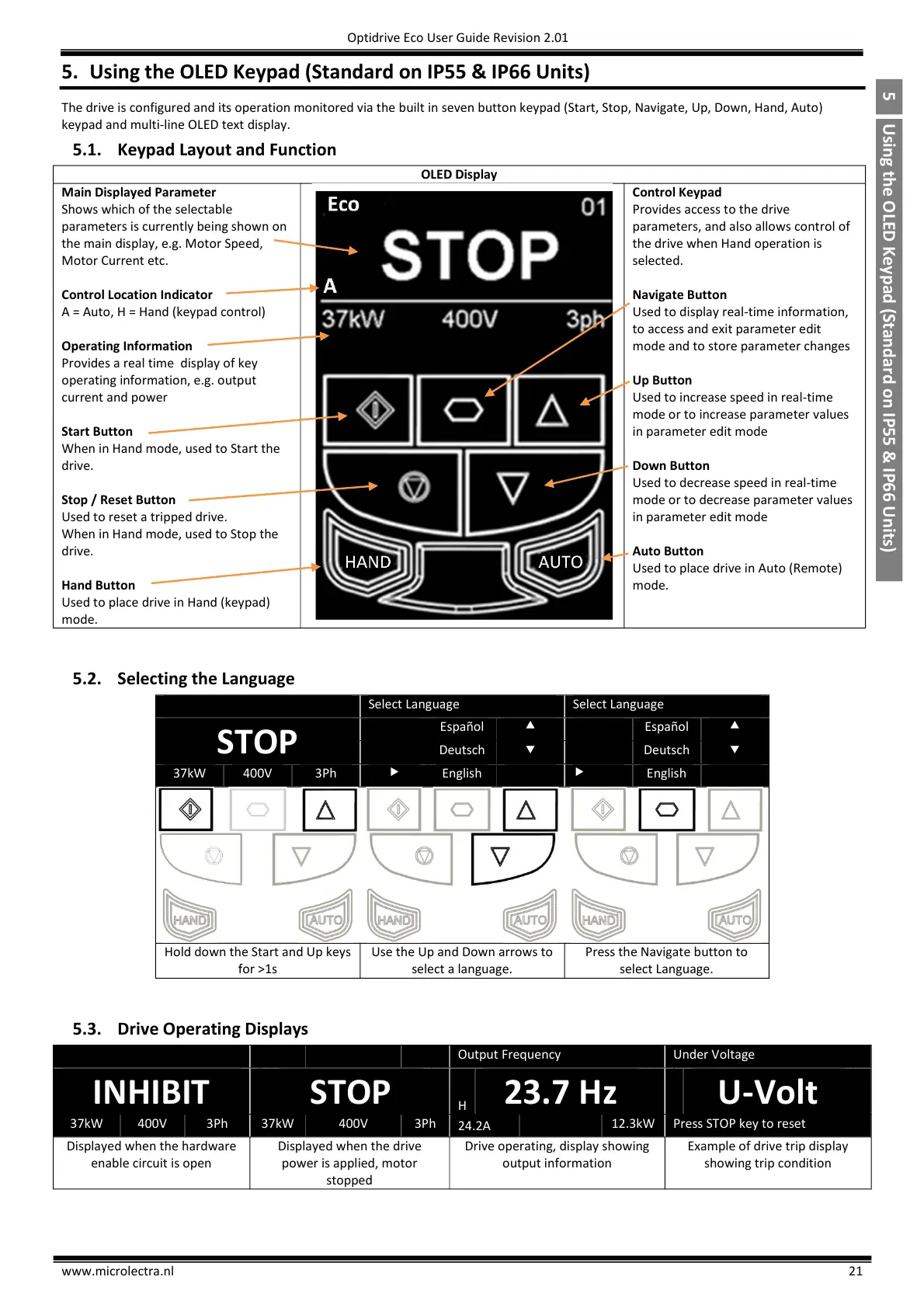

5. Using the OLED Keypad (Standard on IP55 & IP66 Units)
The drive is configured and its operation monitored via the built in seven button keypad (Start, Stop, Navigate, Up, Down, Hand, Auto)
keypad and multi-line OLED text display.
5.1. Keypad Layout and Function
Shows which of the selectable
parameters is currently being shown on
the main display, e.g. Motor Speed,
Motor Current etc.
Control Location Indicator
A = Auto, H = Hand (keypad control)
Operating Information
Provides a real time display of key
operating information, e.g. output
current and power
Start Button
When in Hand mode, used to Start the
drive.
Stop / Reset Button
Used to reset a tripped drive.
When in Hand mode, used to Stop the
drive.
Hand Button
Used to place drive in Hand (keypad)
mode.
Provides access to the drive
parameters, and also allows control of
the drive when Hand operation is
selected.
Navigate Button
Used to display real-time information,
to access and exit parameter edit
mode and to store parameter changes
Up Button
Used to increase speed in real-time
mode or to increase parameter values
in parameter edit mode
Down Button
Used to decrease speed in real-time
mode or to decrease parameter values
in parameter edit mode
Auto Button
Used to place drive in Auto (Remote)
mode.
5.2. Selecting the Language
Hold down the Start and Up keys
for >1s
Use the Up and Down arrows to
select a language.
Press the Navigate button to
select Language.
5.3. Drive Operating Displays
Displayed when the hardware
enable circuit is open
Displayed when the drive
power is applied, motor
stopped
Drive operating, display showing
output information
Example of drive trip display
showing trip condition
