Invertek Drives Optidrive E3 ODE-3 Series User Manual

Version 1.02 | Fieldbus Guide | 17www.invertekdrives.com
6
Ethernet Connection
6.4. Optional Interface for Compact 2 Basic Drives
6.4.1. Installation
The Ethernet/IP interface is mounted underneath the control pod.
Remove the control pod as described in the Compact 2 installation guide.
Locate the Ethernet/IP interface in the slot below the control pod.
Refi t the control pod.

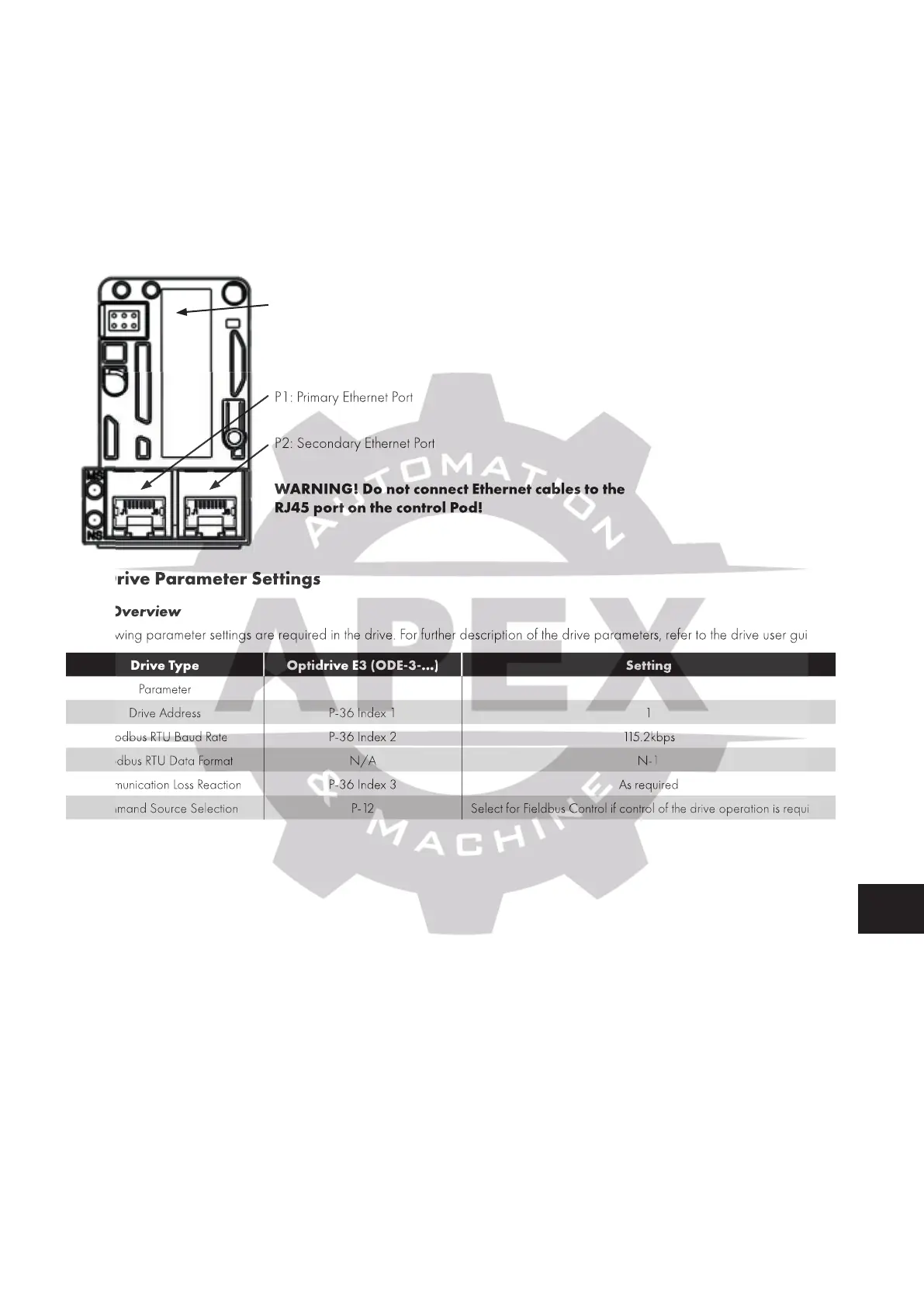

6.4.2. Layout
MAC Address shown here
P1: Primary Ethernet Port
P2: Secondary Ethernet Port
WARNING! Do not connect Ethernet cables to the
RJ45 port on the control Pod!
6.5. Drive Parameter Settings
6.5.1. Overview
The following parameter settings are required in the drive. For further description of the drive parameters, refer to the drive user guide.
Drive Type Optidrive E3 (ODE-3-…) Setting
Parameter
Drive Address P-36 Index 1 1
Modbus RTU Baud Rate P-36 Index 2 115.2kbps
Modbus RTU Data Format N/A N-1
Communication Loss Reaction P-36 Index 3 As required
Command Source Selection P - 12 Select for Fieldbus Control if control of the drive operation is required
P1: Primary Ethernet Port
P2: Secondary Ethernet Port
WARNING
! Do not connect Ethernet cables to the
RJ45 port on the control Pod!
6.5. Drive Parameter Settings
6.5.1. Overview
The following parameter settings are required in the drive. For further description of the drive parameters, refer to the drive user guide.
Drive Type
Optidrive E3 (ODE-3-…)
Setting
Parameter
Drive Address
P-36 Index 1
1
Modbus RTU Baud Rate
P-36 Index 2
115.2kbps
Modbus RTU Data Format
N/A
N-1
Communication Loss Reaction
P-36 Index 3
As required
Command Source Selection
P - 12
Select for Fieldbus Control if control of the drive operation is required
