Fieldbus Gateways
10.4. Subnetwork Connection
The drive sub network connects to the connector on the bottom of the gateway, using the supplied DB9-RJ45 cable. For a single drive
installation, the cable can be connected directly from the gateway to the Optidrive. For a network of multiple drives, the network can
be easily constructed using suitable RJ45 cables and splitters available from your Invertek Drives Sales Partner.

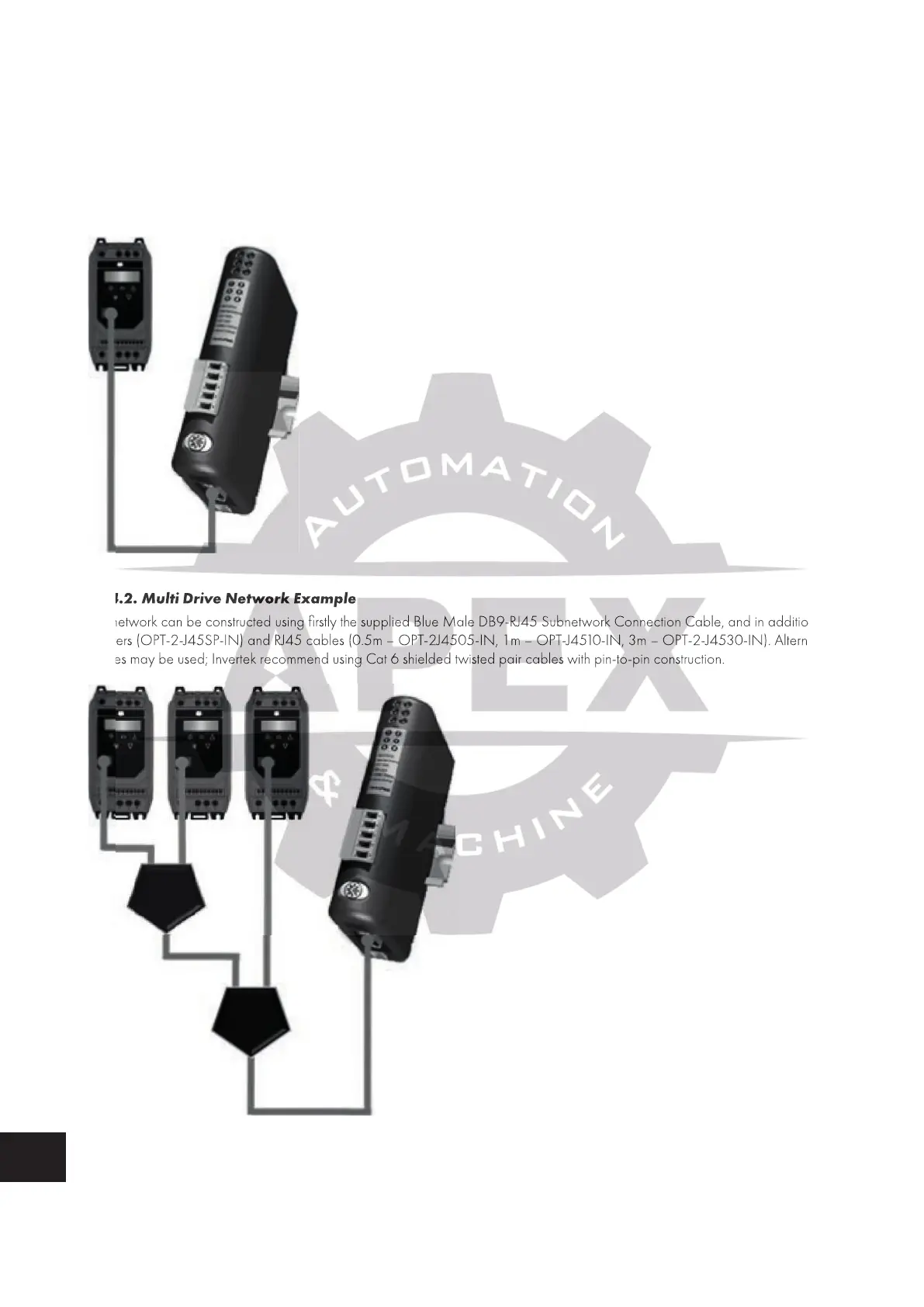

10.4.1. Single Drive Network Example
The gateway is connected to the drive using the supplied Blue Male DB9-RJ45 Subnetwork Connection Cable.
10.4.2. Multi Drive Network Example
The network can be constructed using fi rstly the supplied Blue Male DB9-RJ45 Subnetwork Connection Cable, and in addition, RJ45
Splitters (OPT-2-J45SP-IN) and RJ45 cables (0.5m – OPT-2J4505-IN, 1m – OPT-J4510-IN, 3m – OPT-2-J4530-IN). Alternative
cables may be used; Invertek recommend using Cat 6 shielded twisted pair cables with pin-to-pin construction.
10.4.2. Multi Drive Network Example
The network can be constructed using fi rstly the supplied Blue Male DB9-RJ45 Subnetwork Connection Cable, and in addition, RJ45
Splitters (OPT-2-J45SP-IN) and RJ45 cables (0.5m – OPT-2J4505-IN, 1m – OPT-J4510-IN, 3m – OPT-2-J4530-IN). Alternative
cables may be used; Invertek recommend using Cat 6 shielded twisted pair cables with pin-to-pin construction.
