Ethernet Connection
6. Ethernet Connection
6.1. Available Interface Options
Ethernet interfaces are optionally available for Optidrive E3 and Optidrive Compact 2 products which support either Ethernet/IP
protocol or Modbus TCP protocol. Part numbers for these interfaces are shown in the table below. The correct interface should be
selected according to the drive type.
Drive Family
Interface Type
Ethernet/IP Interface
Model Code
Modbus TCP Interface
Model Code
Optidrive E3 IP20 External Option OPT-2-ETHEG-IN OPT-3-MTPEG-IN
Optidrive E3 IP66 Internal Option Drive Model Code + “-EIP“ Drive Model Code + “-MTP“
Optidrive Compact 2 Plug in Option OPT-2-ETHIG-IN OPT-2-MTPEG-IN

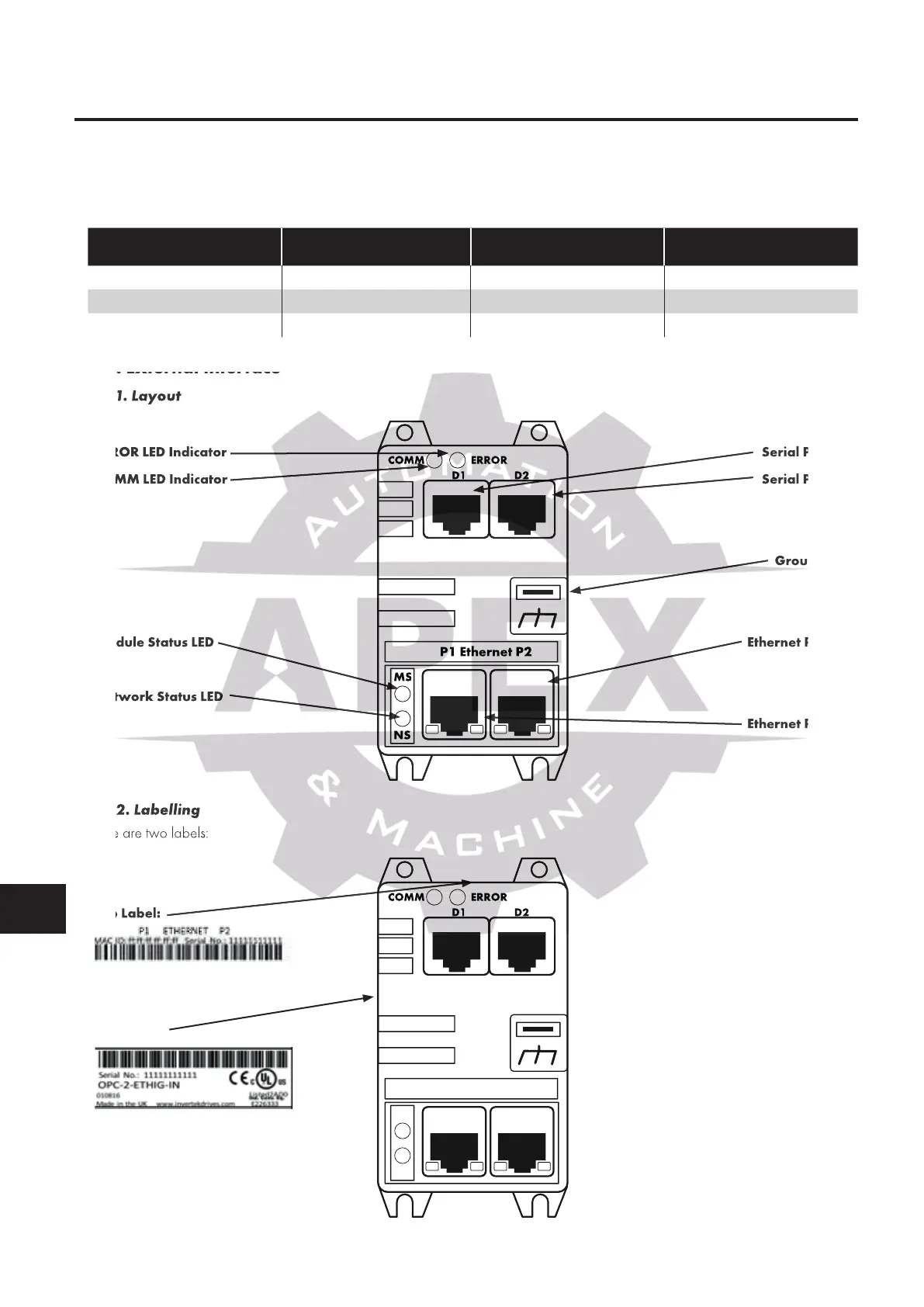

6.2. External Interface
6.2.1. Layout
ERROR LED Indicator
COMM LED Indicator
Module Status LED
Network Status LED
COMM ERROR
P1 Ethernet P2
D1
MS
NS
D2
Serial Port D1
Serial Port D2
Ground Tab
Ethernet Port P2
Ethernet Port P1
6.2.2. Labelling
There are two labels:
Top Label:
Provides the MAC ID for the module
Side Label:
Provides, the model code and
serial number data
COMM ERROR
P1 Ethernet P2
D1
MS
NS
D2
6.2. External Interface
6.2.1. Layout
ERROR LED Indicator
COMM LED Indicator
Module Status LED
Network Status LED
COMM ERROR
COMM ERROR
P1 Ethernet P2
D1
MS
NS
D2
Serial Port D1
Serial Port D2
Ground Tab
Ethernet Port P2
Ethernet Port P1
6.2.2. Labelling
There are two labels:
Top Label:
COMM ERROR
COMM ERROR
D1
D2
COMM ERROR
COMM ERROR
COMM ERROR
