Ethernet/IP Communication
Cofi guration Settings
Message Type CIP Generic
Service Type Get Attribute Single (0x0E)
Class ID 0x0F
Instance The relevant Modbus RTU Register Number (For ODE-3 i.e.: P-01 = 129 [128+01], P-02 = 130 [128+02])
Attribute 1
Source Length 2 Bytes
Destination Element Must be a 16-bit data type
Path ‘Device Name or IP Address, 3, 1’
8.8.2.1.2. Write Parameter Value
Please add the MSG function to the program.
Massage Confi guration – Parameter Write
Confi guration Tab: Communication Tab:
Cofi guration Settings
Message Type CIP Generic
Service Type Parameter Write (0x10)
Class ID 0x0F
Instance The relevant Modbus RTU Register Number (For ODE-3 i.e.: P-01 = 129 [128+01], P-02 = 130 [128+02])
Attribute 1
Source Length 2 Bytes
Destination Element Must be a 16-bit data type
Path ‘Device Name or IP Address, 3, 1’
8.9. Trouble Shooting
8.9.1. Status Indicator LEDs
Refer to 6. Ethernet Connection on page 14 for status LED location information.
Status LED Function
NS Ethernet Network Status Indicator
MS MS: Ethernet/IP Network Status Indicator
COMM COMM: Modbus Communication Indicator (OPC-2-ETHIG-IN <-> Drive)
ERROR Modbus Error Indicator (OPC-2-ETHIG-IN <-> Drive)

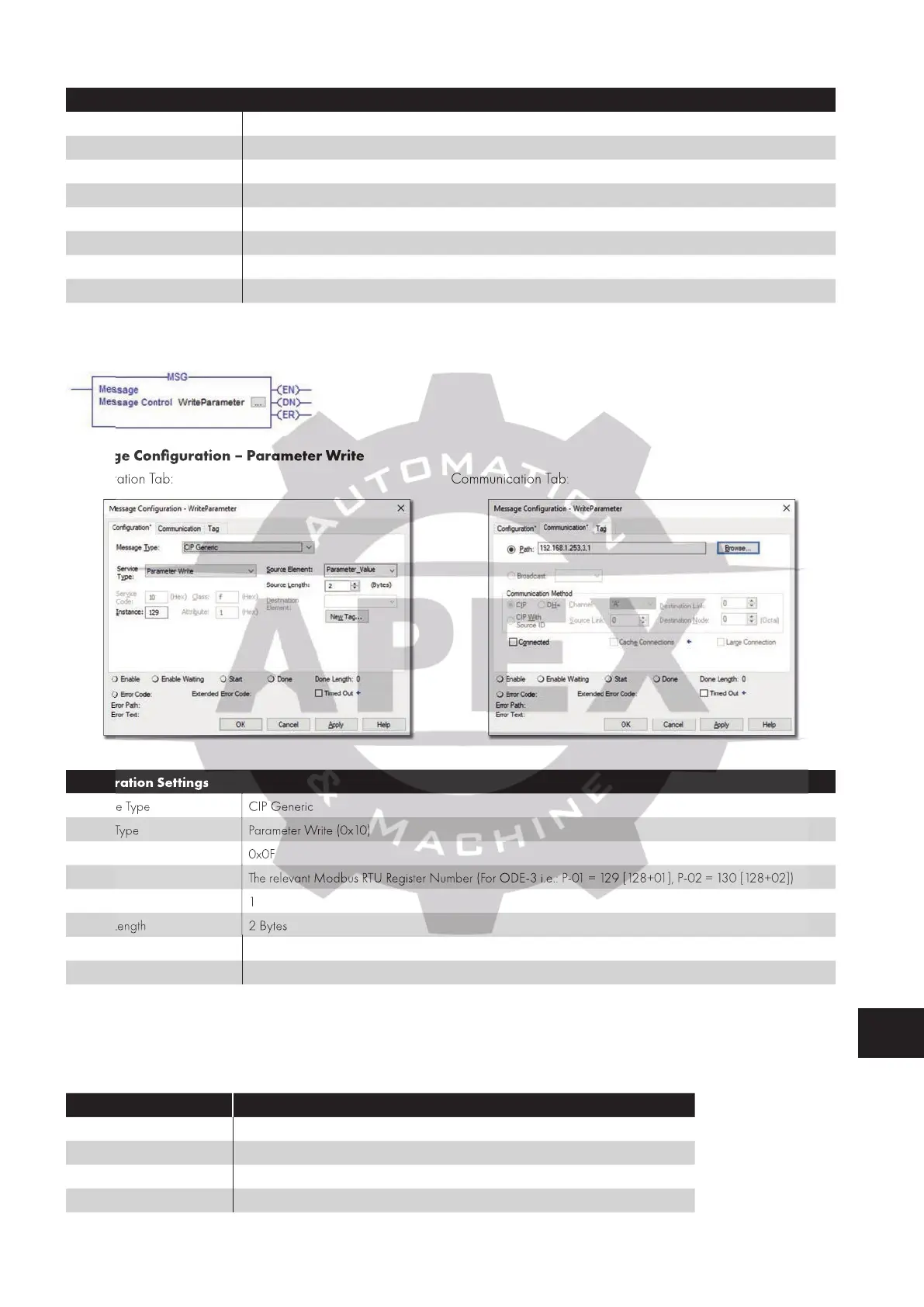

Massage Confi guration – Parameter Write
Confi guration Tab:
Communication Tab:
Cofi guration Settings
Message Type
CIP Generic
Service Type
Parameter Write (0x10)
0x0F
The relevant Modbus RTU Register Number (For ODE-3 i.e.: P-01 = 129 [128+01], P-02 = 130 [128+02])
1
Source Length
2 Bytes
