Goodrive300-19 series open loop vector inverter special for hosit Basic operation instruction
-156-

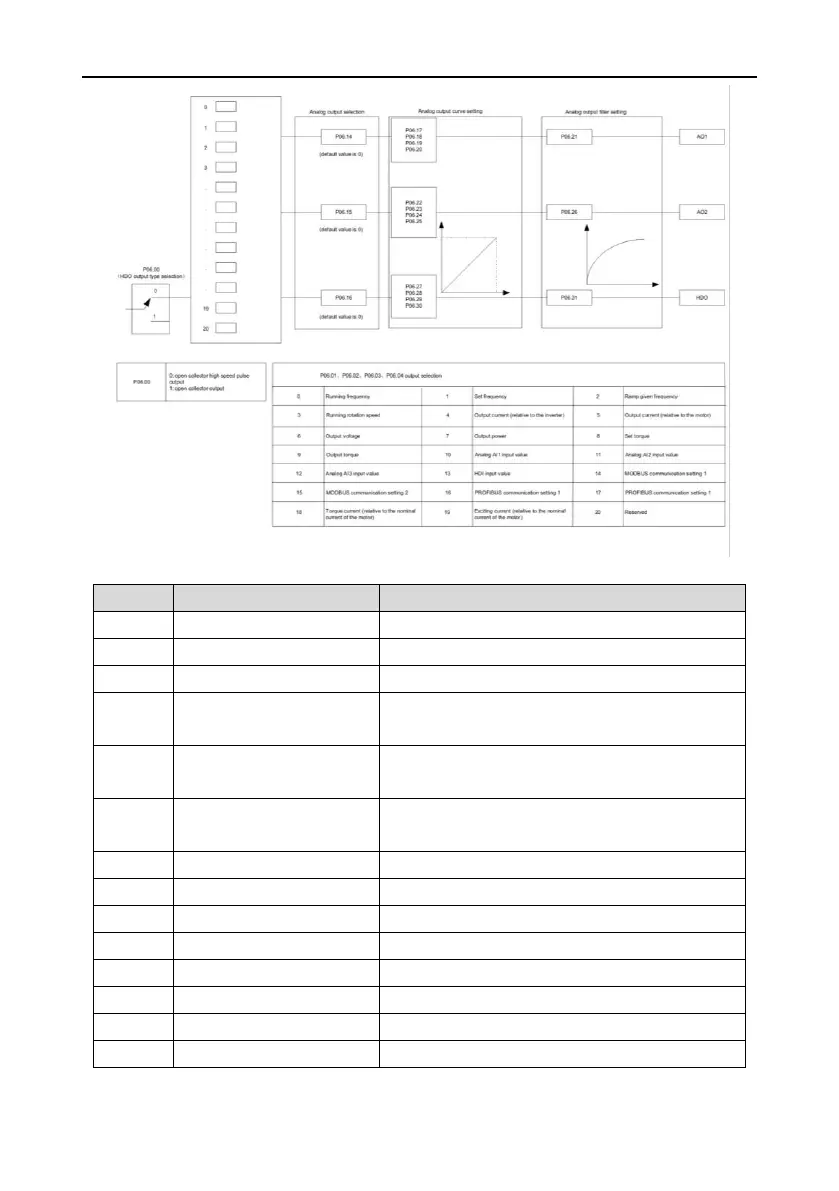

Output instructions:
Set value
Function
Instruction
0
Running frequency
0~the Max. output frequency
1
Set frequency
0~ the Max. output frequency
2
Ramp reference frequency
0~ the Max. output frequency
3
Running speed
0~2 times of the rated synchronous rotation speed of
the motor
4
Output current (relative to the
inverter)
0~2 times of the rated current of the inverter
5
Output current (relative to the
motor)
0~2 times of the rated current of the motor
6
Output voltage
0~1.5 times of the rated voltage of the inverter
7
Output power
0~2 times of the rated power
8
Setting torque value
0~2 times of the rated current of the motor
9
Output torque
0~2 times of the rated current of the motor
10
AI1
0~10V/0~20mA
11
AI2
0~10V/0~20mA
12
AI3
-10V~10V
13
HDI
0.00~50.00kHz
