Goodrive300-19 series open loop vector inverter special for hosit Installation guidelines
-21-

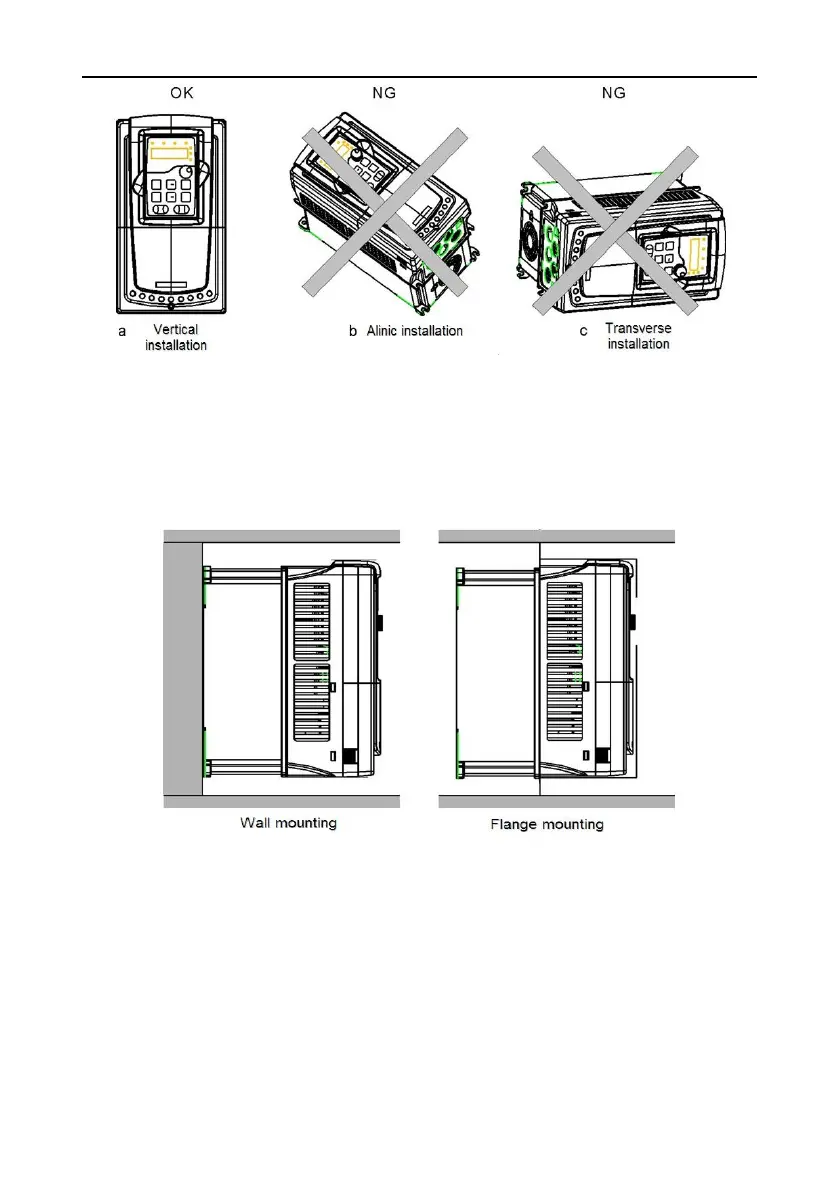

Fig 4-1 Installation direction of the inverter
4.2.3 Installation manner
The inverter can be installed in three different ways, depending on the frame size:
a) Wall mounting (for the inverters of 380V ≤315kW)
b) Flange mounting (for the inverters of 380V ≤200kW)
c) Floor mounting (for the inverters of 380V 220-315kW)
Fig 4-2 Installation manner
(1) Mark the hole location. The location of the holes is shown in the dimension drawings in the
appendix.
(2) Fix the screws or bolts to the marked locations.
(3) Put the inverter against the wall.
(4) Tighten the screws in the wall securely.
Note: The flange installation for the inverters of 380V 1.5~30kW needs flange board, while the
flange installation for the inverters of 380V 37~200kW does not need.
