Goodrive300-19 series open loop vector inverter special for hosit Installation guidelines
-22-
4.2.4 Single installation

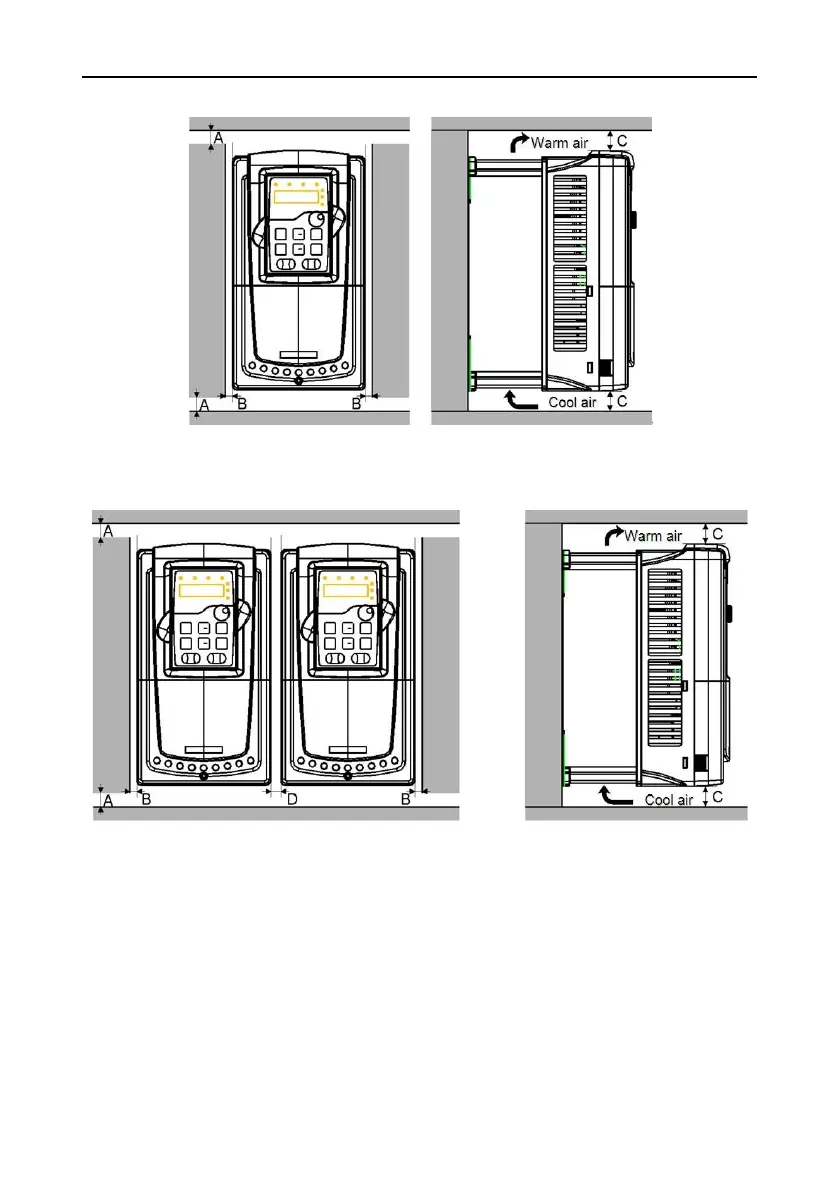

Fig 4-3 Single installation
Note: The minimum space of B and C is 100mm.
4.2.5 Multiple installations
Parallel installation
Fig 4-4 Parallel installation
Note:
Before installing the inverters in different sizes, please align their top position for the
convenience of later maintenance.
The minimum space of B, D and C is 100mm.
