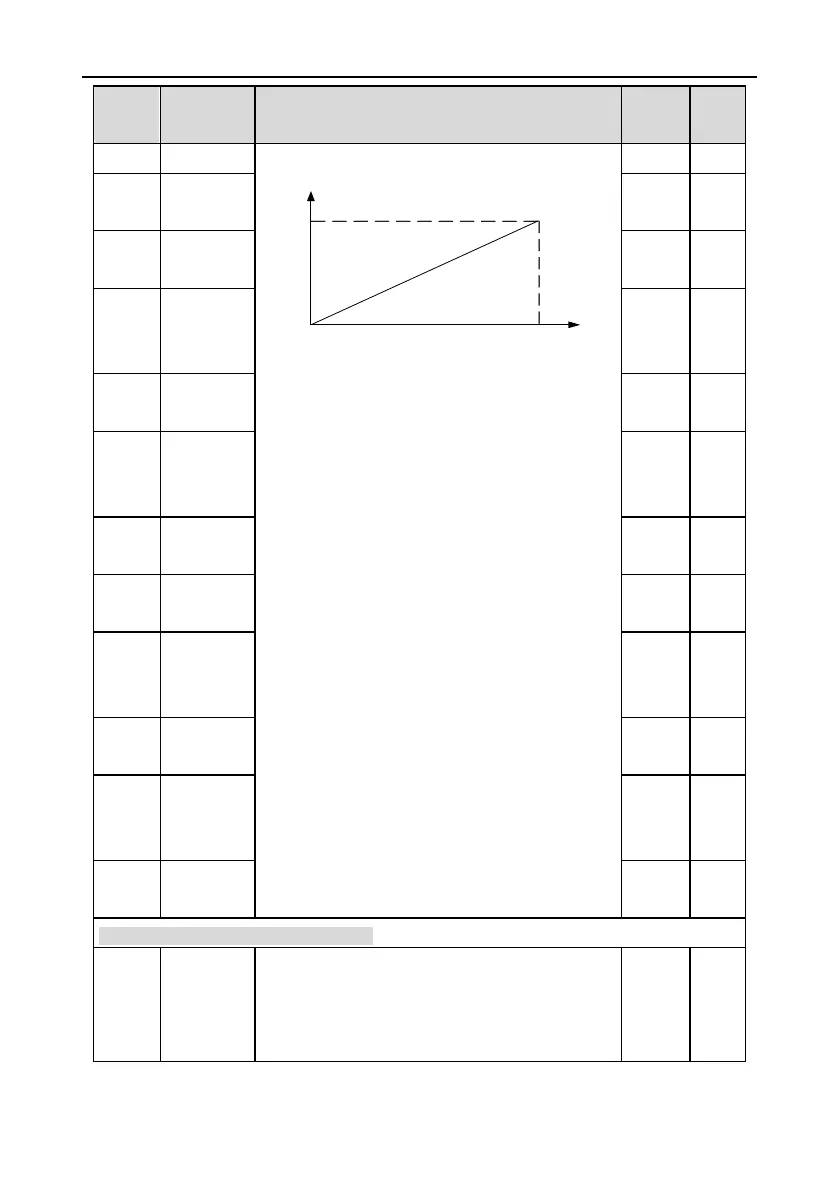

Goodrive300-19 series open loop vector inverter special for hosit Function parameters
-81-
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
of upper limit
application for detailed information.
10V (20mA)
0.0% 100.0%
AO
Setting range of P06.17: -100.0%~P06.19
Setting range of P06.18: 0.00V~10.00V
Setting range of P06.19: P06.17~100.0%
Setting range of P06.20: 0.00V~10.00V
Setting range of P06.21: 0.000s~10.000s
Setting range of P06.22: 0.0%~P06.24
Setting range of P06.23: 0.00V~10.00V
Setting range of P06.24: P06.22~100.0%
Setting range of P06.25: 0.00V~10.00V
Setting range of P06.26: 0.000s~10.000s
Setting range of P06.27: -100.0%~P06.29
Setting range of P06.28: 0.00~50.00kHz
Setting range of P06.29: P06.27~100.0%
Setting range of P06.30: 0.00~50.00kHz
Setting range of P06.31: 0.000s~10.000s
P06.21
AO1 output
filter time
0.000s
○
P06.22
Lower output
limit of AO2
0.0%
○
P06.23
Correspondin
g AO2 output
of lower limit
0.00V
○
P06.24
Upper output
limit of AO2
100.0%
○
P06.25
Correspondin
g AO2 output
of upper limit
10.00V
○
P06.26
AO2 output
filter time
0.000s
○
P06.27
Lower output
limit of HDO
0.00%
○
P06.28
Correspondin
g HDO output
of lower limit
0.00kHz
○
P06.29
Upper output
limit of HDO
100.0%
○
P06.30
Correspondin
g HDO output
of upper limit
50.00kHz
○
P06.31
HDO output
filter time
0.000s
○
P07 Group Human machine interface
P07.00
User’s
password
0~65535
The password protection will be valid when setting
any non-zero number.
00000: Clear the previous user’s password, and
0
○
