INVT Goodrive35 Series User Manual

Goodrive35 Series Closed-loop Vector Control VFD Basic operation instruction
162

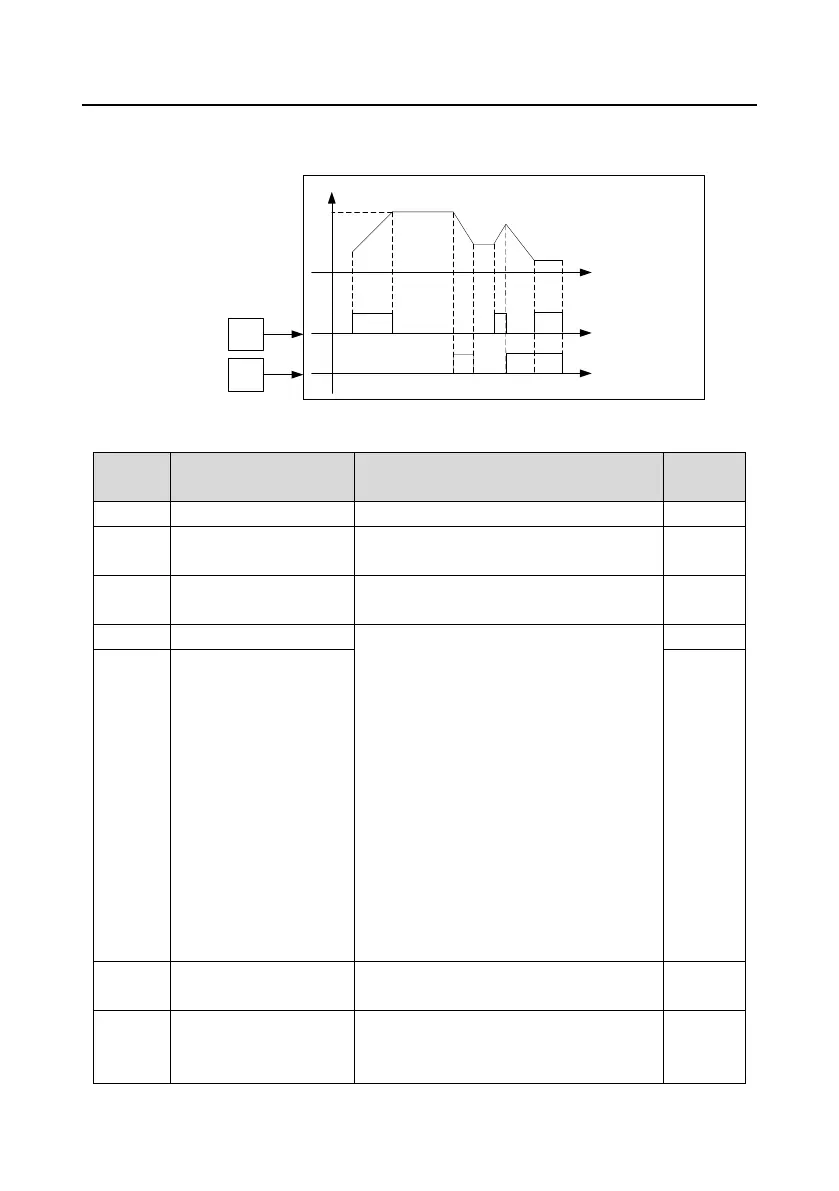

When select multi-function terminal UP (10) and DOWN (11) to set the internal assistant frequency,
P08.44 and P08.45 can be set to increase or decrease the set frequency quickly.
Sx
Sy
Up terminal function
selection=10
DOWN terminal function
selection=11
UP terminal state
DOWN terminal state
T
F
T
T
UP terminal frequency increasing integral rate P08.45
DOWN terminal frequency increasing integral rate P08.46
Relative parameters list:
Function
code
Name
Detailed instruction of parameters
Default
value
P00.03
Max. output frequency
P00.04–400.00 Hz
50.00 Hz
P00.04
Upper limit of the running
frequency
P00.05–P00.03
50.00 Hz
P00.05
Lower limit of the running
frequency
0.00 Hz–P00.04
0.00 Hz
P00.06
A frequency command
0: Keypad
1: AI1
2: AI2
3: AI3
4: High-speed pulse HDI setting
5: Simple PLC program setting
6: Multi-step speed running setting
7: PID control setting
8: Modbus communication setting
9: PROFIBUS/CANopen communication
setting
10: Ethernet communication setting
11: Reserved
12: Pulse string AB setting
0
P00.07
B frequency command
2
P00.08
B frequency command
reference
0: Maximum output frequency
1: A frequency command
0
P00.09
Combination of the setting
source
0: A
1: B
2: (A+B) combination
0
