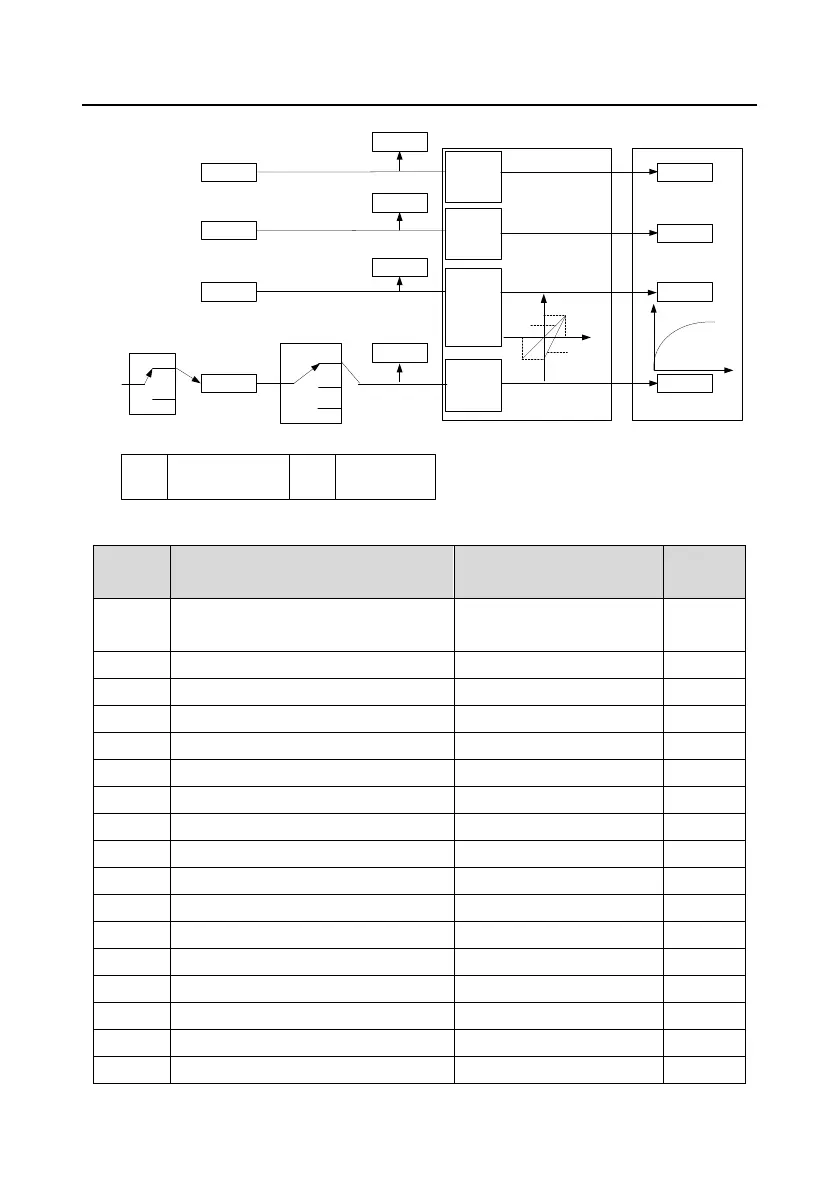

Goodrive35 Series Closed-loop Vector Control VFD Basic operation instruction
165
AI1
AI3
HDI
P05.32
P05.33
P05.34
P05.35
P05.42
P05.43
P05.44
P05.45
P05.46
P05.47
P05.50
P05.51
P05.52
P05.53
P05.48
P05.36
P05.54
P17.19
P17.21
P17.22
AI2
P05.37
P05.38
P05.39
P05.40
P05.41
P17.20
P05.00
（HDI input type selection ）
0
1
1
2
0
P05.49
（HDI high speed pulse input function selection ）
AI1 input voltage
AI2 input voltage
AI3 input voltage
HDI input frequency
AI3
AI1/AI2/
HDI
P05.00
0: HDI is high speed pulse
input
1: HDI is digital input
P05.49
0: Frequency setting
input
1-2: Reserved
Analog input curve setting
Analog input filter
Relative parameters list:
Function
code
Name
Detailed instruction of
parameters
Default
value
P05.00
HDI input selection
0: High pulse input
1: Digital input.
0
P05.32
Lower limit of AI1
0.00 V–P05.34
0.00 V
P05.33
Corresponding setting of lower limit of AI1
-300.0%–300.0%
0.0%
P05.34
Upper limit of AI1
P05.23–10.00 V
10.00 V
P05.35
Corresponding setting of upper limit of AI1
-300.0%–300.0%
100.0%
P05.36
AI1 input filter time
0.000s–10.000s
0.030 s
P05.37
Lower limit of AI2
0.00 V–P05.39
0.00 V
P05.38
Corresponding setting of lower limit of AI2
-300.0%–300.0%
0.0%
P05.39
Upper limit of AI2
P05.37–10.00 V
10.00 V
P05.40
Corresponding setting of upper limit of AI2
-300.0%–300.0%
100.0%
P05.41
AI2 input filter time
0.000s–10.000 s
0.030 s
P05.42
Lower limit of AI3
-10.00 V–P05.44
-10.00 V
P05.43
Corresponding setting of lower limit of AI3
-300.0%–300.0%
-100.0%
P05.44
Zero-drift value of AI3
P05.42–P05.46
0.00 V
P05.45
Zero-point deadzone voltage of AI3
0.00–10.00 V
0.04 V
P05.46
Upper limit of AI3
P05.44–10.00 V
10.00 V
P05.47
Corresponding setting of upper limit of AI3
-300.0%–300.0%
100.0%
