INVT Goodrive35 Series User Manual

Goodrive35 Series Closed-loop Vector Control VFD Installation guide
29

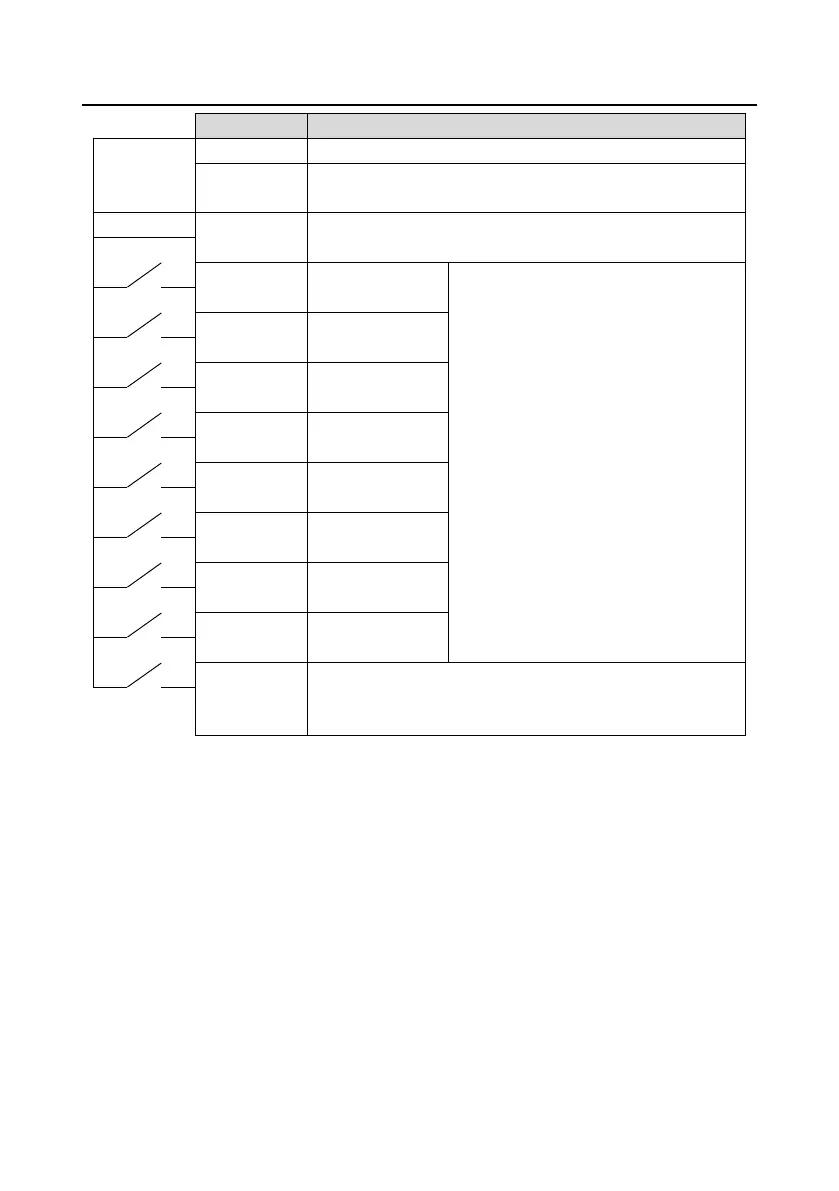

Terminalname
Description
Voltage range: 12–24V
24V
The VFD provides user power; the maximum output current is
200mA
COM
Common port of +24V
S1
Digital input 1
1. Internal impedance: 3.3kΩ
2. Accept 12–30V voltage input
3. This terminal is bi-directional input
terminal and supports NPN/PNP
connection modes
4. Max. input frequency: 1kHz
5. All are programmable digital input
terminals, and users can set the terminal
function via function codes
S2
Digital input 2
S3
Digital input 3
S4
Digital input 4
S5
Digital input 5
S6
Digital input 6
S7
Digital input 7
S8
Digital input 8
HDI
Besides S1–S8 functions, it can also act as high frequency pulse
input channel
Max. input frequency: 50kHz
