INVT SV-DA200 Series

INVT SV-DA200 AC Servo Drive PROFINET Technical Guide V2.63
14

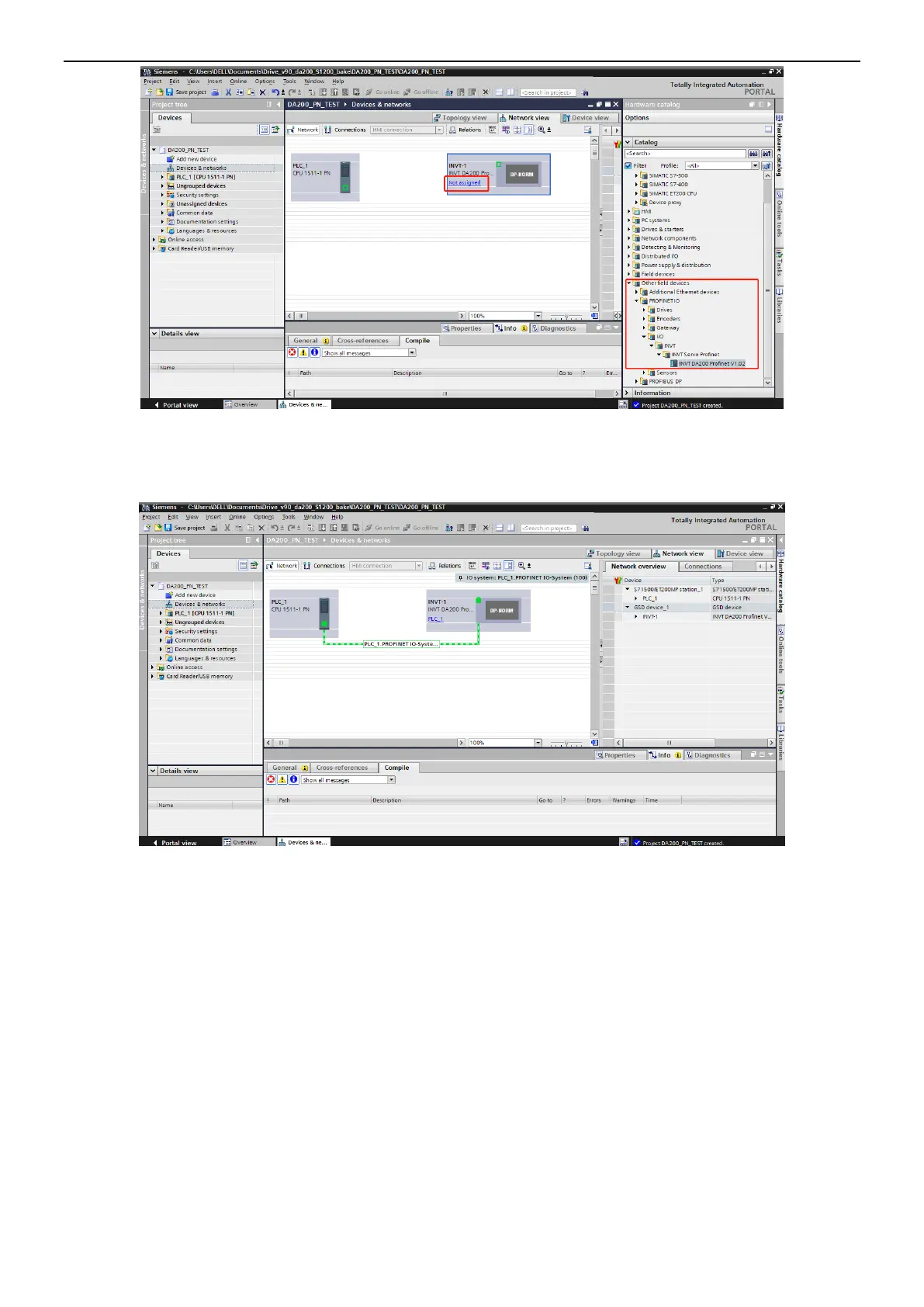

Click the Not assigned option of INVT Profinet Adapter V1.0, and select the IO controller
PLC_1.PROFINET interface_1. In the network view, the CPU and INVT PROFINET have been
connected to the same PROFINET sub network.
③ Add INVT I/O sub modules to the project.
Double-click the INVT Profinet Adapter V1.0 icon to enter the device view. See the following figure.
