INVT SV-DA200 User Manual

SV-DA200 series AC servo drives Faults and solutions
‐128‐
Note:

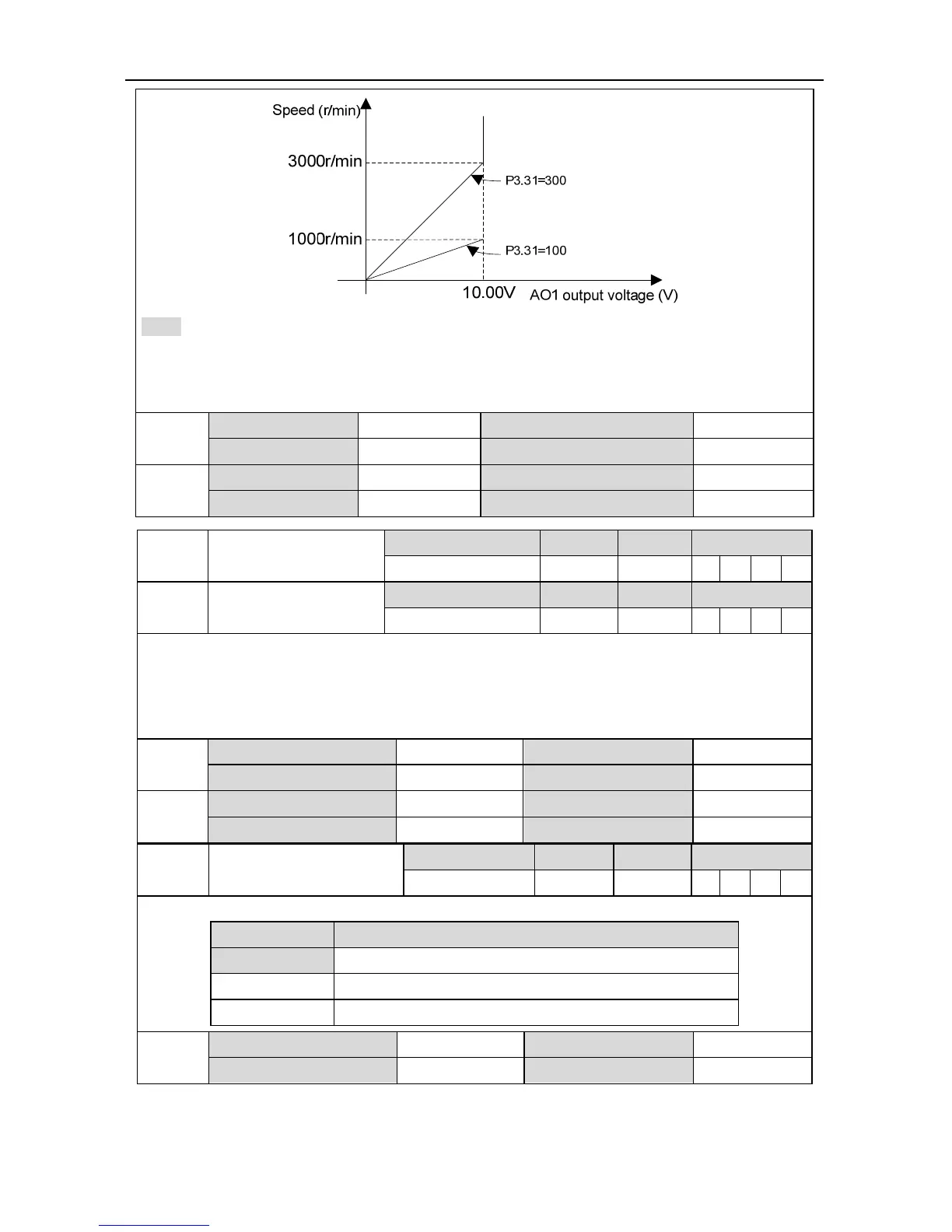

1. If the actual output speed is more than 3000r/min, AO1 output is 10V. Please select the gain
according to the actual range of the parameter.
2. When P3.30 and P3.32 select other functions, the gain setting is the same.
P3.31
Data size 32bit Data format DEC
Modbus address 1662, 1663 CANopen address 0x231F, 0x00
P3.33
Data size 32bit Data format DEC
Modbus address 1666, 1667 CANopen address 0x2321, 0x00
P3.34
Offset voltage of analog
output 1
Setting range Default Unit Available mode
-10.000~10.000 0.000 V P S T F
P3.35
Offset voltage of analog
output 2
Setting range Default Unit Available mode
-10.000~10.000 0.000 V P S T F
This parameter can be used to adjust the AO1 and AO2 to regulate the actual value of analog
output voltage.
Actual value of analog output voltage = Original value of analog output voltage + Offset value of
analog output voltage
P3.34
Data size 32bit Data format DEC
Modbus address 1668,1669 CANopen address 0x2322,0x00
P3.35
Data size 32bit Data format DEC
Modbus address 1670,1671 CANopen address 0x2323,0x00
P3.36
1
Analog output monitor
setting
Setting range Default Unit Available mode
0~2 0 - P S T F
This parameter is used to set the output mode and voltage range of the analog output.
Setting value Output mode
[0] Voltage output with sign(-10V~10V)
1 Absolute voltage output (0V~10V)
2 Voltage output with zero offset (0V~10V, 5V center)
P3.36
1
Data size 16bit Data format DEC
Modbus address 1672,1673 CANopen address 0x2324,0x00
