 The max. input pulse frequency is 200kHz; if the local 24V power supply (it only can provide
100mA current) or the 24V power supply provided by the user is used, there is no need to connect to
current limit resistor. Generally, most of Japanese PLC is NPN module, while most of European PLC
is PNP module.

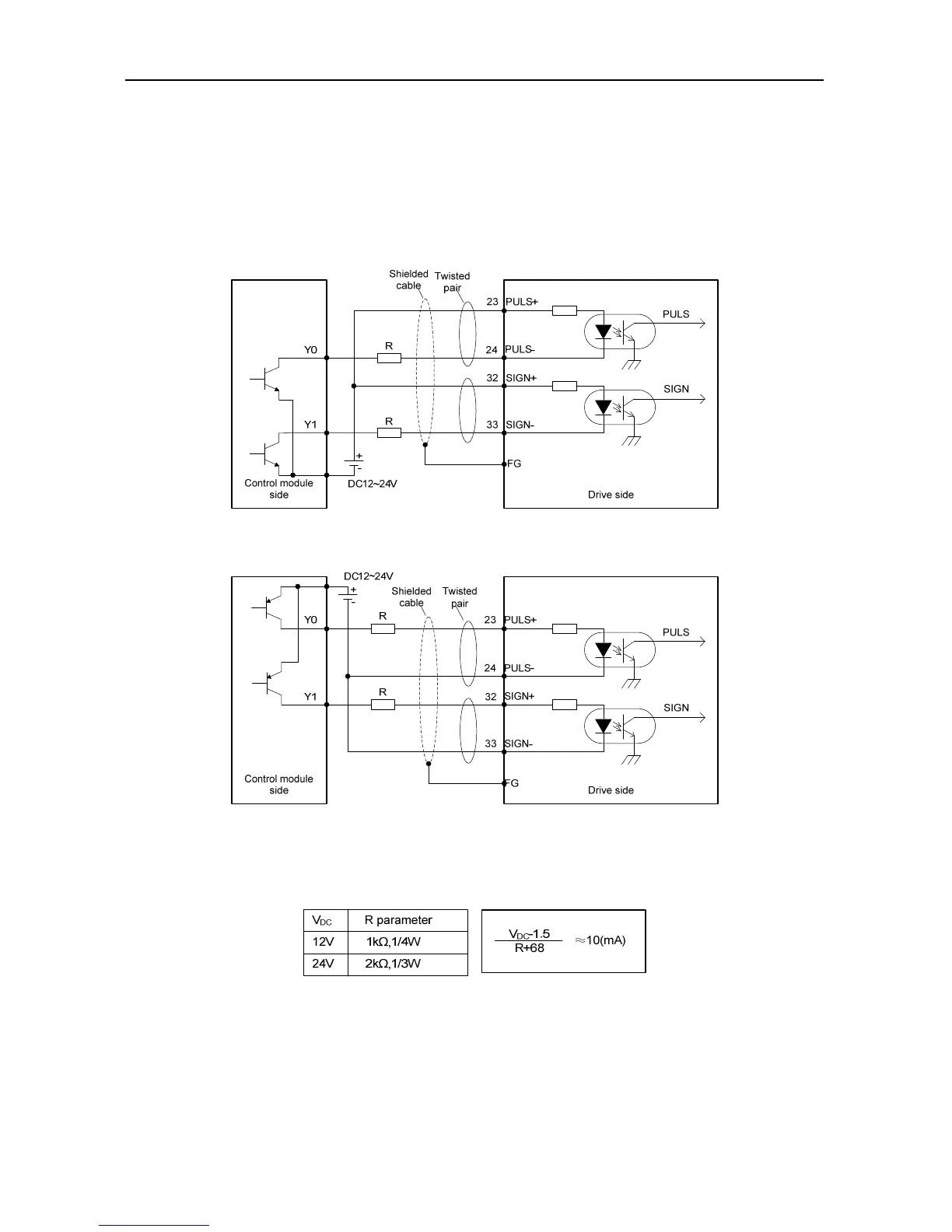

Connection mode 3: Open collector mode 2
The control module is NPN (common cathode):
The control module is PNP (common anode):
 The input pulse frequency is 200kHz; if the local 24V power supply (it only can provide 100mA current)
or the 12~24V power supply provided by the user is used, it is required to connect to current-limiting
resistor R(the resistance is selected as the below table).
For all the 3 methods, shielded twisted-pair must be used and the length should be less than 3m.
