40 Chapter 5: TempScan/1100 Scanning Cards TempScan / MultiScan User's Manual

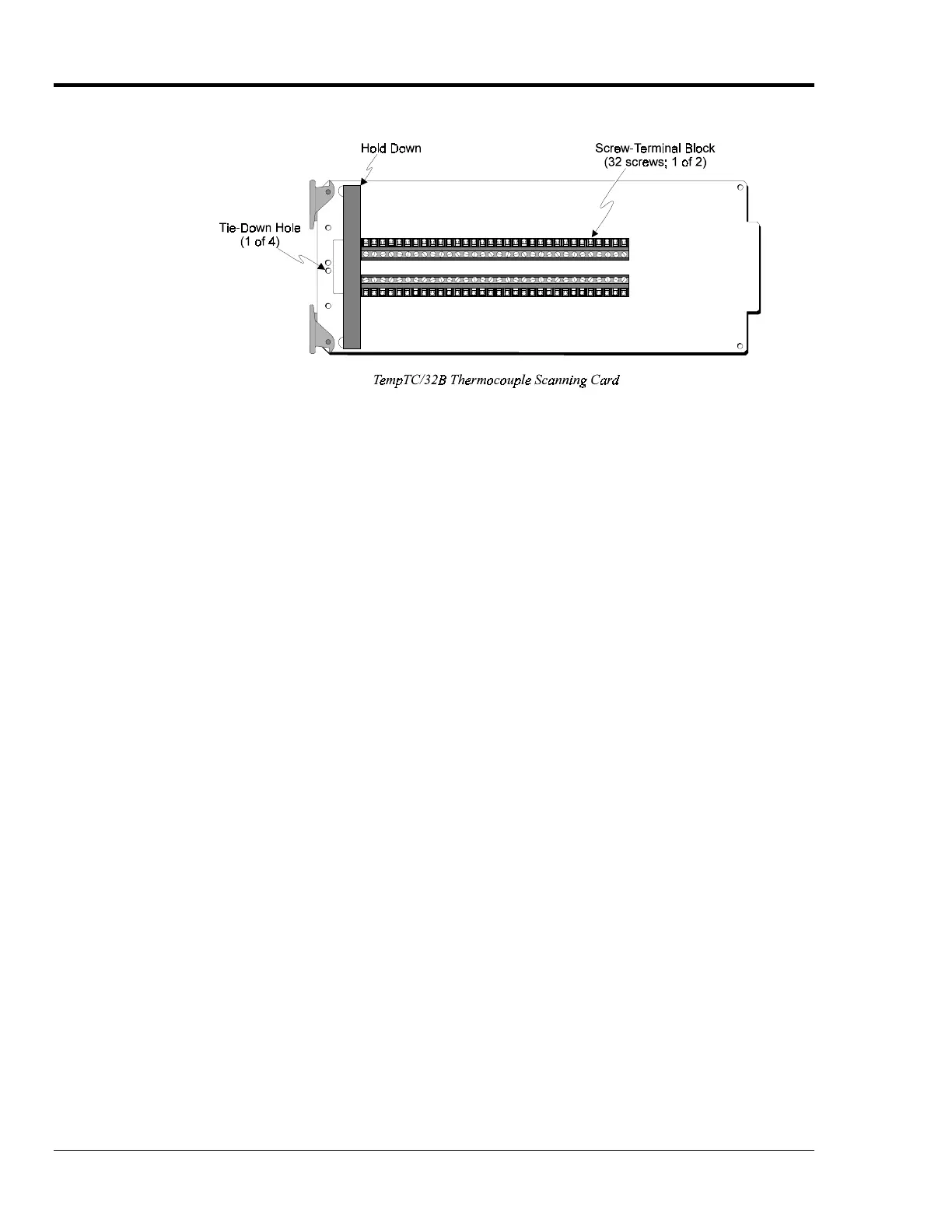

TempTC/32B Thermocouple Scanning Card
TempTC/32B Specifications
Note:
These specifications are subject to change without notice.
Number of Channels: 32 differential; programmable by channel for specific thermocouple type or
±100 mV full scale input.
Input Types: J, K, T, E, N, R, S, B, N14, N28, custom thermocouple, and millivolts.
Input Connector: Screw terminal.
Thermocouple Wire: #16 AWG maximum, #24 AWG minimum; #20 AWG recommended for type J,
K, T, E and N; #24 AWG recommended for type R, S, and B.
Temperature Range, Accuracy, and Resolution: Accuracy is based on 18 to 28°C, 1 year; includes
cold junction compensation; excludes thermocouple errors; thermocouple readings based on NIST
Monograph 175. Resolution given is the typical value.
Thermocouple Range Accuracy Resolution
Type J: -200° to +760°C; ± 0.5°C; 0.10°C.
Type K: -100° to +1372°C; ± 0.5°C; 0.10°C.
Type T: -100° to +400°C; ± 0.5°C; 0.10°C.
Type E: -100° to +1000°C; ± 0.5°C; 0.10°C.
Type N: -200° to +1300°C; ± 0.5°C; 0.10°C.
Type R: 0.0° to +1768°C; ± 0.10°C; 0.20°C.
Type S: 0.0° to +1768°C; ± 0.10°C; 0.20°C.
Type B: +350° to +1820°C; ± 0.10°C; 0.20°C.
Type N14: 0.0° to +1300°C; ± 0.5°C; 0.10°C.
Type N28: -270° to +400°C; ± 0.5°C; 0.10°C.
Temperature Units: °C, °F, °K, °R, and mV.
