TempV/32B Description
The TempV/32B voltage scanning module contains 32 differential input channels and is capable of
measuring analog input signals on any of four programmable ranges: ±100 millivolt, ±1 volt, ±5 volt
and ±10 volt.
For differential input configuration, each input must have biasing currents. A certain amount of current
must be flowing into the differential inputs or else capacitance-induced noise will make the inputs
appear as noise.

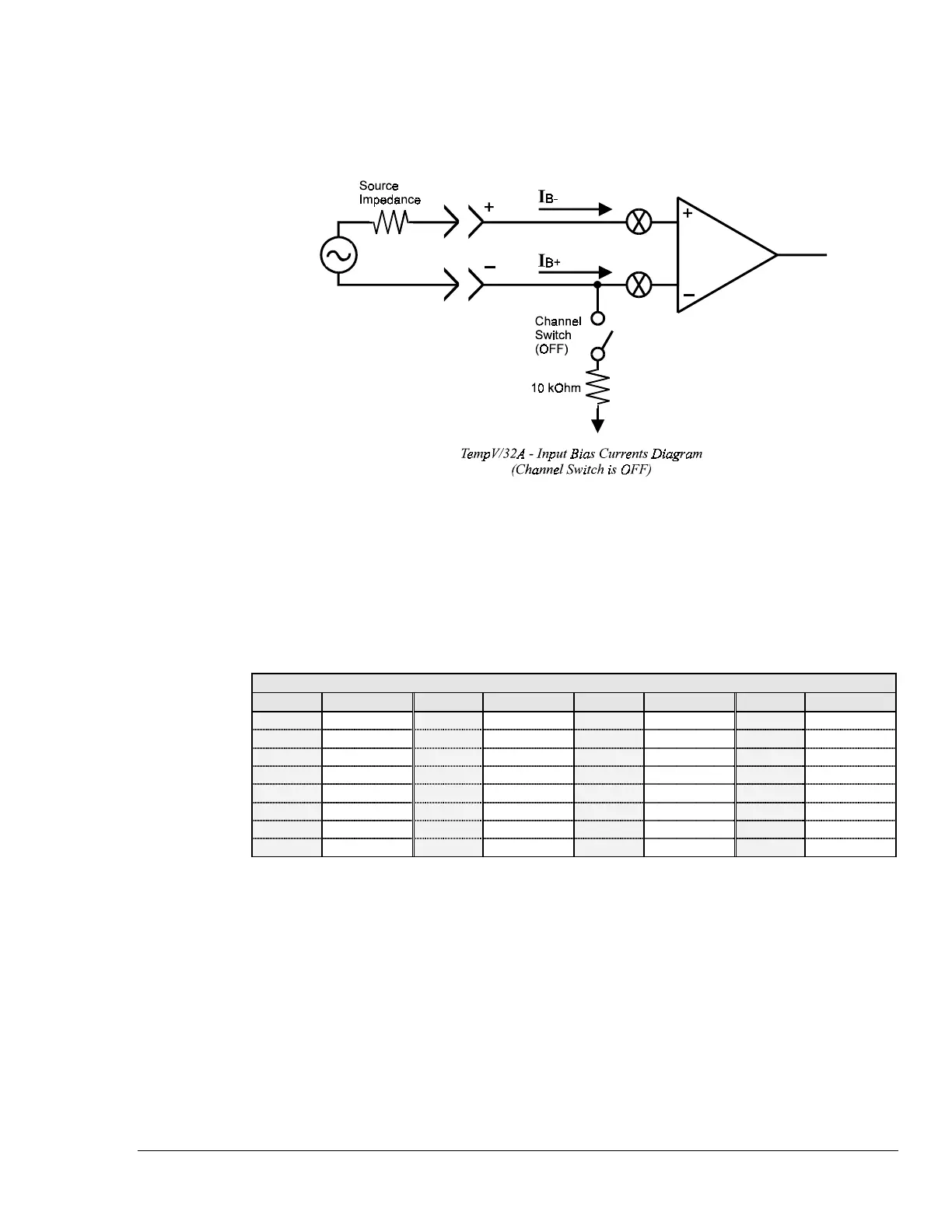

The low side of each differential input channel is provided with a switchable 10-kΩ resistor to analog
common. This allows a current path when no current is flowing due to no common ground connections
or a high-impedance input source. With no common ground connection, closing the switch connects a
10-kΩ resistor between the (L) input and ground and provides a common mode impedance.
The relationships between the DIP microswitches and specific channels are described in the table.
TempV/32B Channel-to-Microswitch Relationships
Channel Microswitch Channel Microswitch Channel Microswitch Channel Microswitch
1S6-89S3-817 S5-8 25 S4-8
2S6-710 S3-7 18 S5-7 26 S4-7
3S6-611 S3-6 19 S5-6 27 S4-6
4S6-512 S3-5 20 S5-5 28 S4-5
5S6-413 S3-4 21 S5-4 29 S4-4
6S6-314 S3-3 22 S5-3 30 S4-3
7S6-215 S3-2 23 S5-2 31 S4-2
8S6-116 S3-1 24 S5-1 32 S4-1
