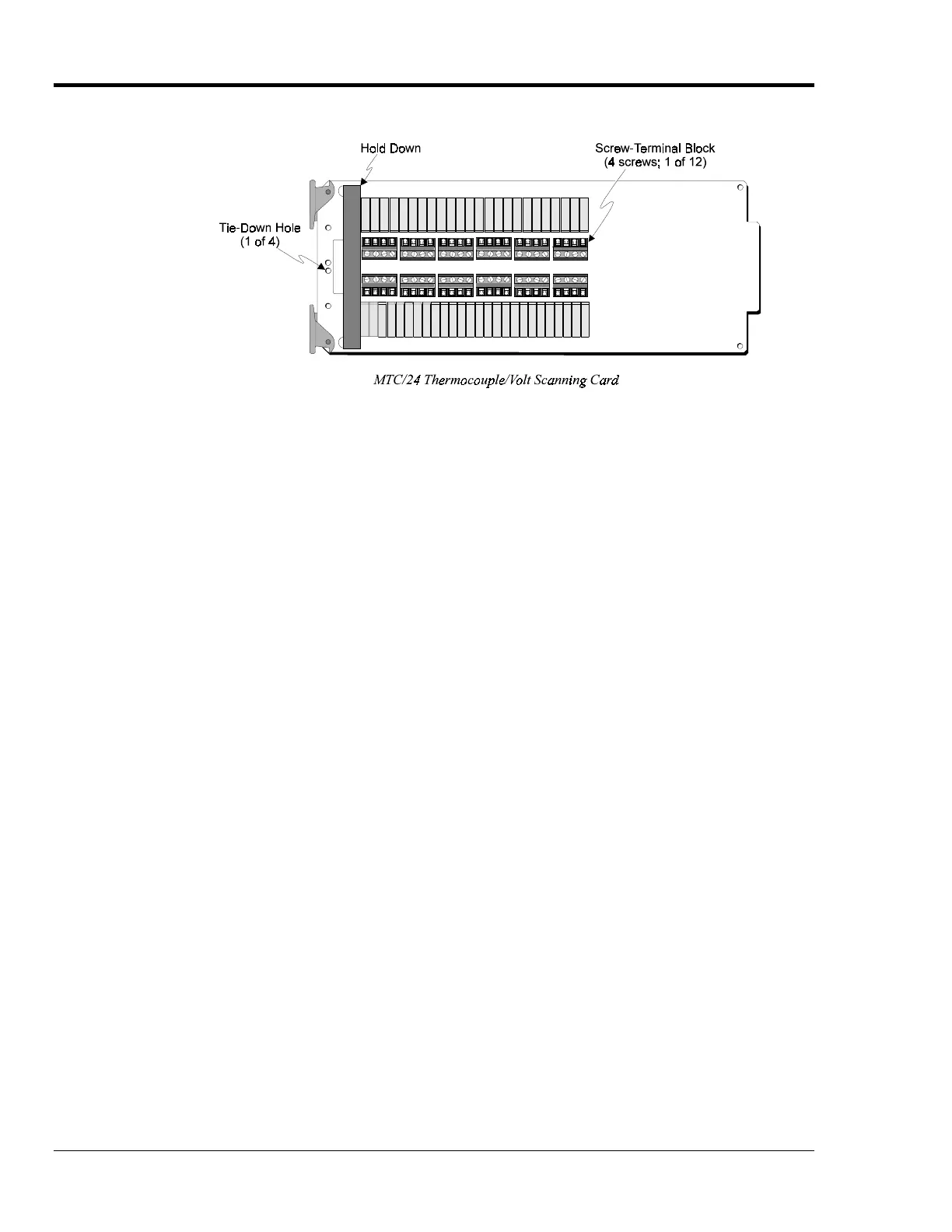

MTC/24 Thermocouple/Volt Scanning Card
MTC/24 Specifications
Note:
These specifications are subject to change without notice.
Number of Channels: 24 differential; programmable by channel as specific thermocouple type or a
voltage input.
Input Types: J, K, T, E, R, S, B, N custom thermocouple, and voltage.
Input Connectors: Screw Terminal
Thermocouple Wire: #16 AWG maximum, #24 AWG minimum; #20 AWG recommended for type J,
K, T, E and N; #24 AWG recommended for type R, S, and B.
Temperature Range, Accuracy, and Resolution: Accuracy is based on 18 to 28°C, 1 year; includes
cold junction compensation; excludes thermocouple errors; thermocouple readings based on NIST
Monograph 175. Resolution given is the typical value; excludes thermocouple errors.
Thermocouple Range Accuracy Resolution
Type J: -100° to +760°C; ± 0.5°C; 0.10°C.
Type J: -200° to -100°C; ± 0.8°C; 0.20°C.
Type K: -100° to +1372°C; ± 0.6°C; 0.10°C.
Type K: -200° to -100°C; ± 0.8°C; 0.20°C.
Type T: -100° to +400°C; ± 0.5°C; 0.15°C.
Type T: -200° to -100°C; ± 0.8°C; 0.25°C.
Type E: -100° to +1000°C; ± 0.7°C; 0.10°C.
Type E: -200° to -100°C; ± 0.9°C; 0.20°C.
Type R: 0.0° to +1780°C; ± 2.0°C; 0.40°C.
Type S: 0.0° to +1780°C; ± 2.0°C; 0.40°C.
Type B: +350° to +1820°C; ± 2.0°C; 0.50°C.
Type N: -100° to +1300°C; ± 0.6°C; 0.15°C.
Type N: -200° to -100°C; ± 0.9°C; 0.20°C.
Temperature Units: °C, °F, °K, °R, and mV.
