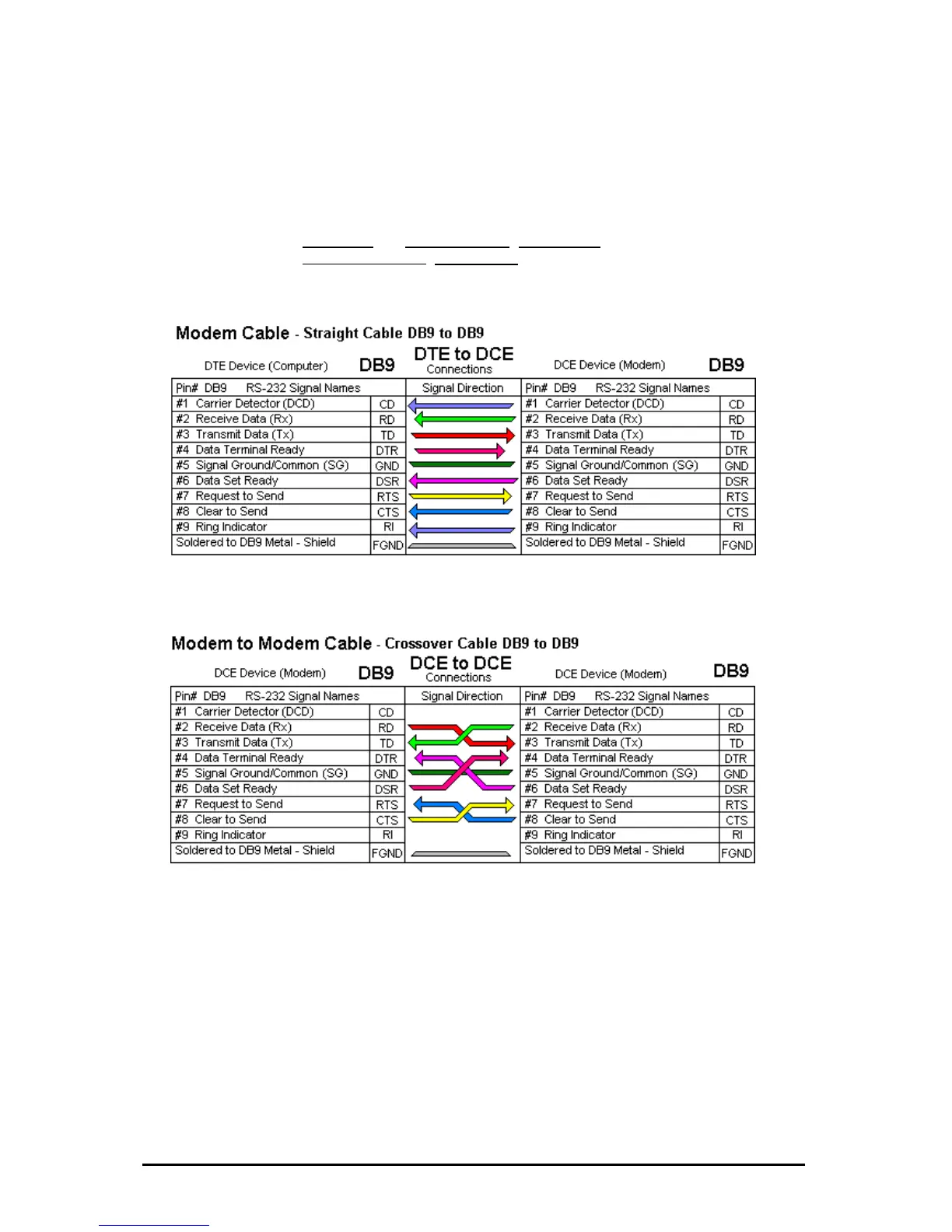

10.3 RS232 Connection Cable
you have to choose the complying connection cable.
From the following graphics you can take out the information to your needed
connection cable.
(also shown at Chapter Pin Allocation)
For ipEther232
Whichever Device is used,
and ipEther232.PPP "DTE-Device"
For ipEther232.Modem
"DCE-Device"
Änderungen vorbehalten Stand 09.09.05
ipcas GmbH ipEther232 V11.01 Seite 133 von 150
