Exception ipNTP, here the LEDs have the following
meaning including Version 10.9:
moment there is
cates that the
AN ork.
• LAN Rx ackets are received by the Ethernet.
• LAN Tx
• SECOND 7.
• MINUTE -77.
• ANTENNA

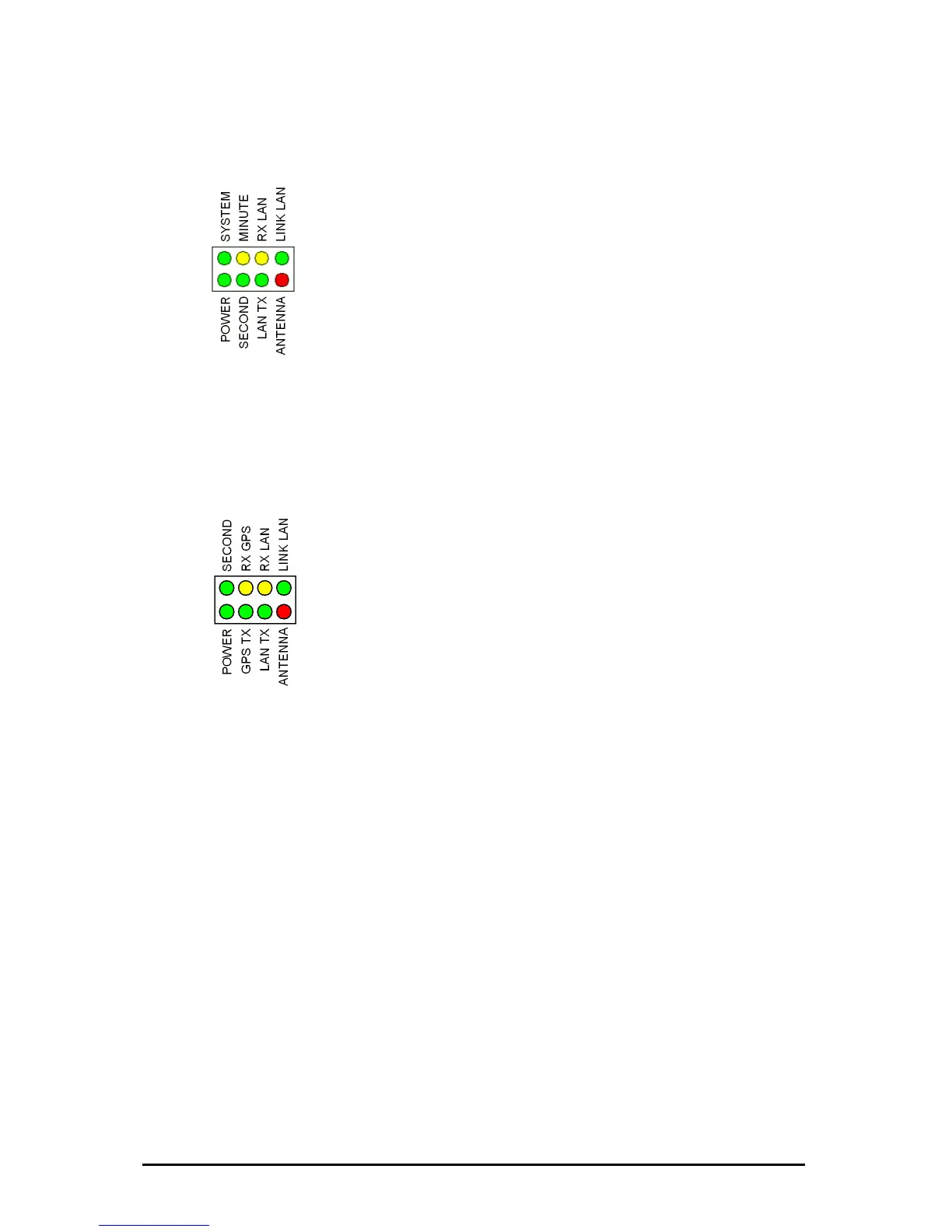

For the ipNTP ex version 10.10 with DCF and GPS realization the LEDs have the
following signification:
• POWER The Device is switched on.
• SECOND
(1) Second impulses received by the DCF-77.
• GPS RX
(2) Packets are received by the GPS.
• GPS TX
(2) Packets are sent to the GPS.
• LAN RX Packets are received by the Ethernet.
• LAN TX Packets are sent to the Ethernet.
• LINK LAN There is a physical connection to the network.
• ANTENNA If the LED is durable glowing it means that no
DCF77or GPS-Signal is received. If the LED is flashing
it means no optimal Transmission is established and
that’s why it can’t be synchronized.
(1) Only for ipNTP with DCF-77-Antenna
(2) Only for ipNTP with GPS-Antenna
• POWER The device is switched on.
• System Slow flashing indicates that at the
no synchronisation. Fast flashing indi
device is in use.
• LINK L There is a physical connection to the netw
P
Packets are sent to the Ethernet.
Second impulse is received by the DCF-7
Minute impulse is received by the DCF
DCF-77 signal is lost.
Änderungen vorbehalten Stand 09.09.05
ipcas GmbH ipEther232 V11.01 Seite 9 von 150
