Iseo X1R Smart User Manual

26

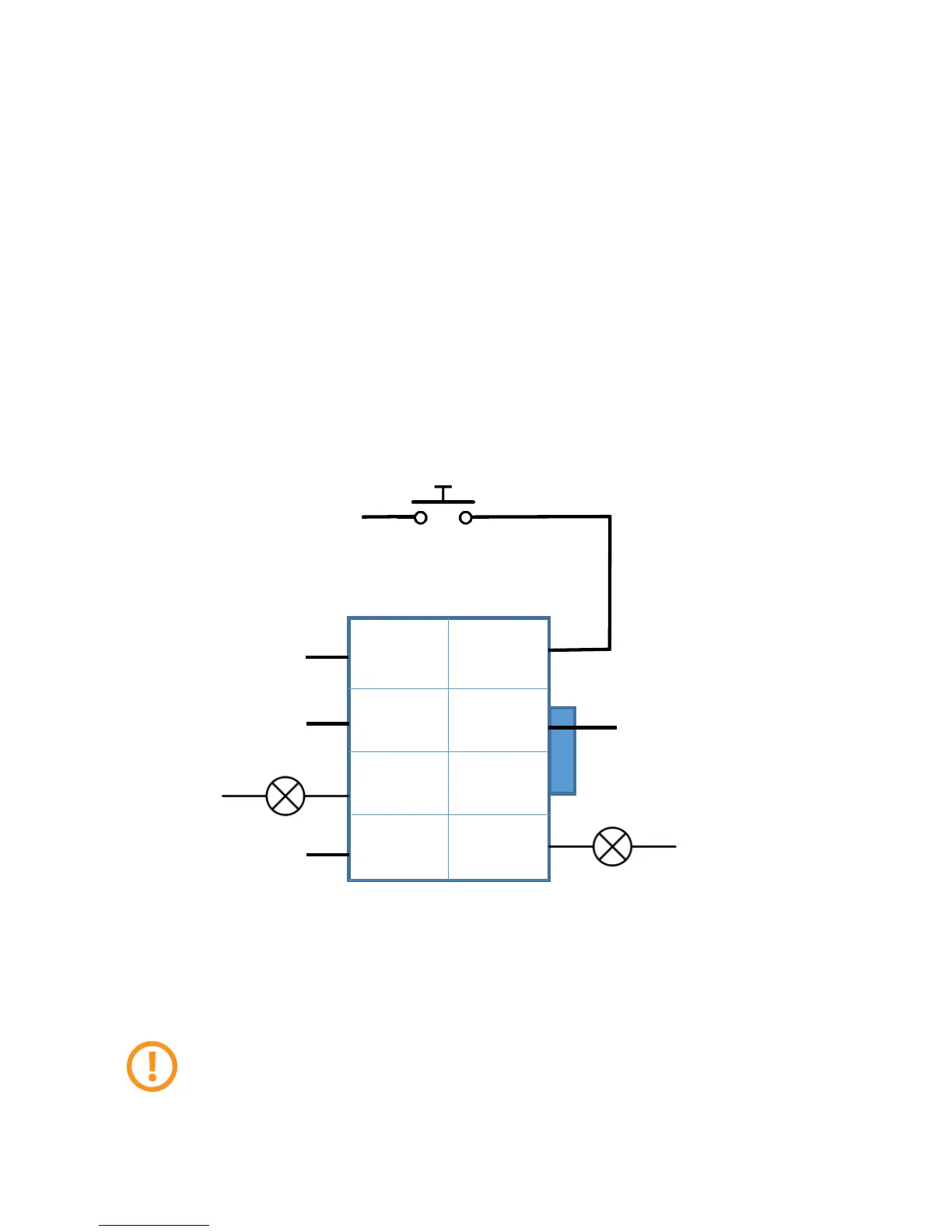

Example of 8 poles Multifunction Cable wiring scheme
See below a connection example related to the following specifications:
 External power supply by cable gland spring.
 Relay outputs connected to 2 light bulbs, green and red, to show the door status:
o NC output connected to green light (door closed and safe);
o NO output connected to red light (door opening or opened).
 Optoisolated input connected to a remote opening button.
Remote opening
push-button
Blue
Opto1
Orange
Relay* NO
Green
Relay*COM
Black
GND
Yellow
Relay* NC
White
Not used
Red
+Vcc
Brown
Opto2
Ext. power supply (+)
x1R power supply (-)
Green light bulb
Red light bulb
* Relay contact type (resistive): 30Vdc/ac, 1A MAX
** Remote opening command power supply: 8-30Vdc/ac. Light bulb power supply: refer to its
technical data.
8 Poles Multifunction
cable connector
Overview
1
4
8
5
The very first batch of 8 poles Multifunction cables had the next different wires colors:
Opto1 = Yellow / Opto2 = Green
Relay COM = Blue / Relay NC = Brown
Ext. power supply (-)
x1R power supply (+)
Ext. power
supply (+)**
Ext. power supply (-)**
Ext. power supply (+)**
