50
Remote opening command
The x1RSmart electronic motorized lock, provides an optoisolated input embedded into the
electronic board. This input allows to connect a remote opening command, that can be, for example,
the intercom button or a push button located in the reception or concierge table. This command
can also be sent by an external control unit, belonging to an home automation system, alarm system
or centralized opening system.

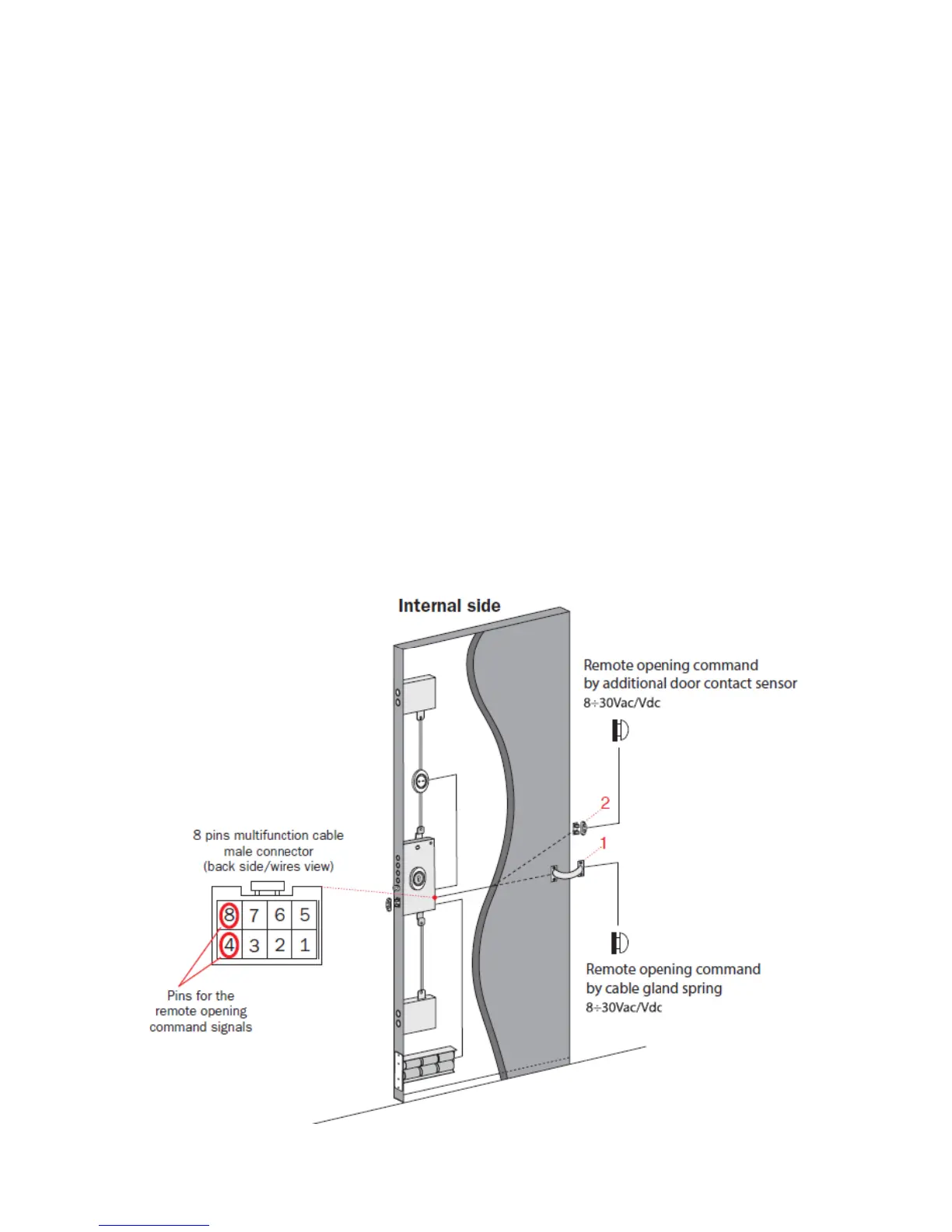

The remote opening command is connected to the optoisolated input, into the 8 Poles Multifunction
Cable connector, pin 4 and 8 (see paragraph Electrical Connection), and can be done:
1. By cable gland spring.
2. By an additional Door contact sensor (to be ordered separately), placed in the hinge side of
the door.
