ISHIDA UNI-7 User Manual

Chapter 1 BEFORE USE

1.7 REMOVING & REPLACING OF WEIGH PLATTER

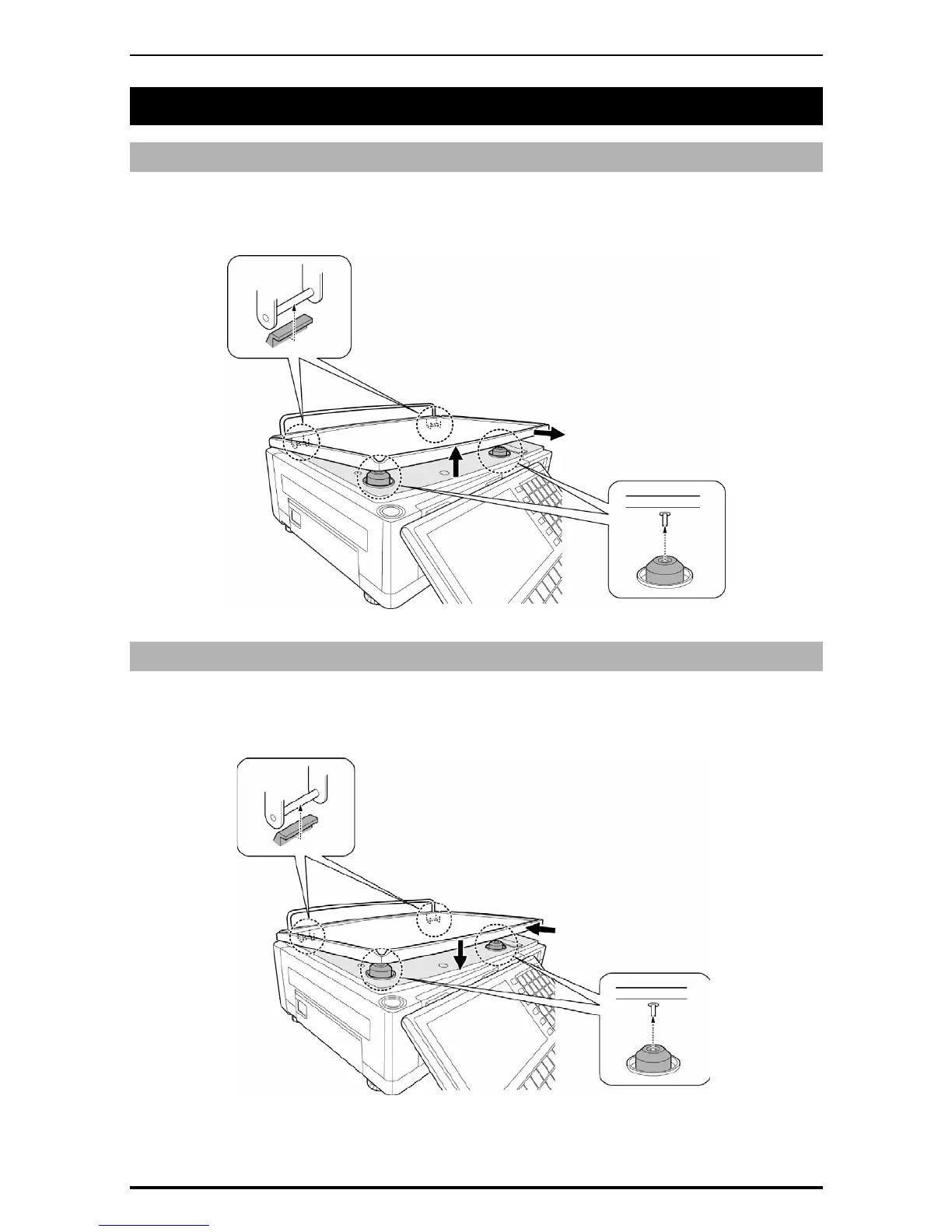

1.7.1 REMOVING THE WEIGH PLATTER
When removing the weigh platter from the main body, lift the front side to pull out the two pins from
the two rubber platter holders and remove the platter by pulling it to disengage the two hooks at the
rear side of the platter.
1.7.2 REPLACING THE WEIGH PLATTER
When replacing the weigh platter onto the main body, engage the two hooks at the rear side of the
platter and lower the platter so that the two pins on the bottom of the platter are inserted into holes of
the rubber platter holders.
UNI-7 User’s Manual 1-9

ISHIDA UNI-7 Specifications

General

Use conditions	Temperature: -5 to 35°C Humidity: 30 to 85%, Non condensing.
Power supply:	AC100 – 240V, 50 / 60Hz
Power consumption	1.0A/0.5A
Weighing capacity Scale interval	15 kg: 0 to 6/0.002 kg, 6 to 15/0.005 kg 30 lb: 0 to 15/0.005 lb, 15 to 30/0.01 lb
Weighting accuracy	1/3000
Printing method	Direct thermal method
Printing speed	100mm/second, 120mm/second Note: The printing speed may vary according to label conditions.
Printing effective size	56mm
Label size	Label width: 30mm to 60mm Label length: 20mm to 150mm
Operator/Customer display	7.0 inch color liquid crystal with back light, 480 X 234dots
Thermal head	2 inches (448dots) and 8 dots/mm
Number of label cassettes	7 cassettes
Program store medium	Flash ROM (32M bytes)
Input/Output	LAN 1 channel USB 1 channel CF 1 channel Drawer 2 channels
