DISMANTLING THE TRAP ASSEMBLY
The procedure for dismantling the trap assembly (see diagram below), is as follows:
1. Remove the trap ceramic from the trap (item 35) if it has remained in position.
2. Remove the screw and washer (items 22 and 27) that hold the trap to the trap bracket.
Remove the trap.
3. Remove the screw and washer that hold the trap bracket to the support block. Lift off
the ceramics (items 35 and 36).

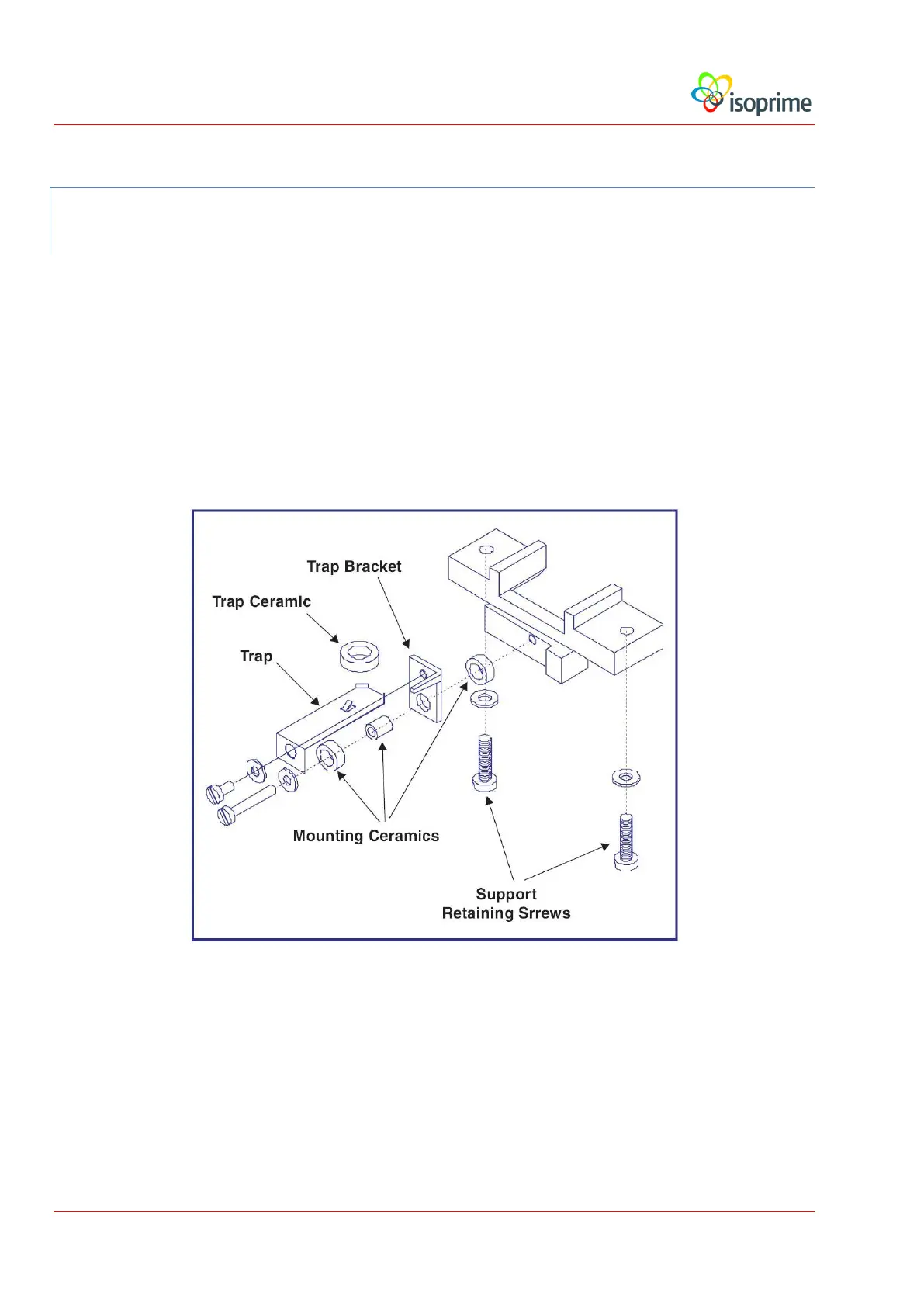

Diagram of the Trap Assembly
