IsoPrime User’s Guide
Version 1.01 IsoPrime100 User’s Guide Page 89 of 219
The map filename is shown in the title bar. If any changes are made to the map, an
asterisk is displayed next to the file name. The asterisk will remain there until the file is saved.
EDIT DISPLAY MAP
To edit a display map, either press the button or choose Map, Edit Display Map. This
allows the user to determine how the instrument readbacks will be displayed. The operation of
the display map editor is the same as the acquisition map editor.
To open a different map, choose File, Open and select a different map file. All the maps listed
are those that are present in the current project. Both acquisition map files and display map files
have the extension .map.
The names of the four most recently used map files are displayed in the File menu.
CHANGING A MAP FILE

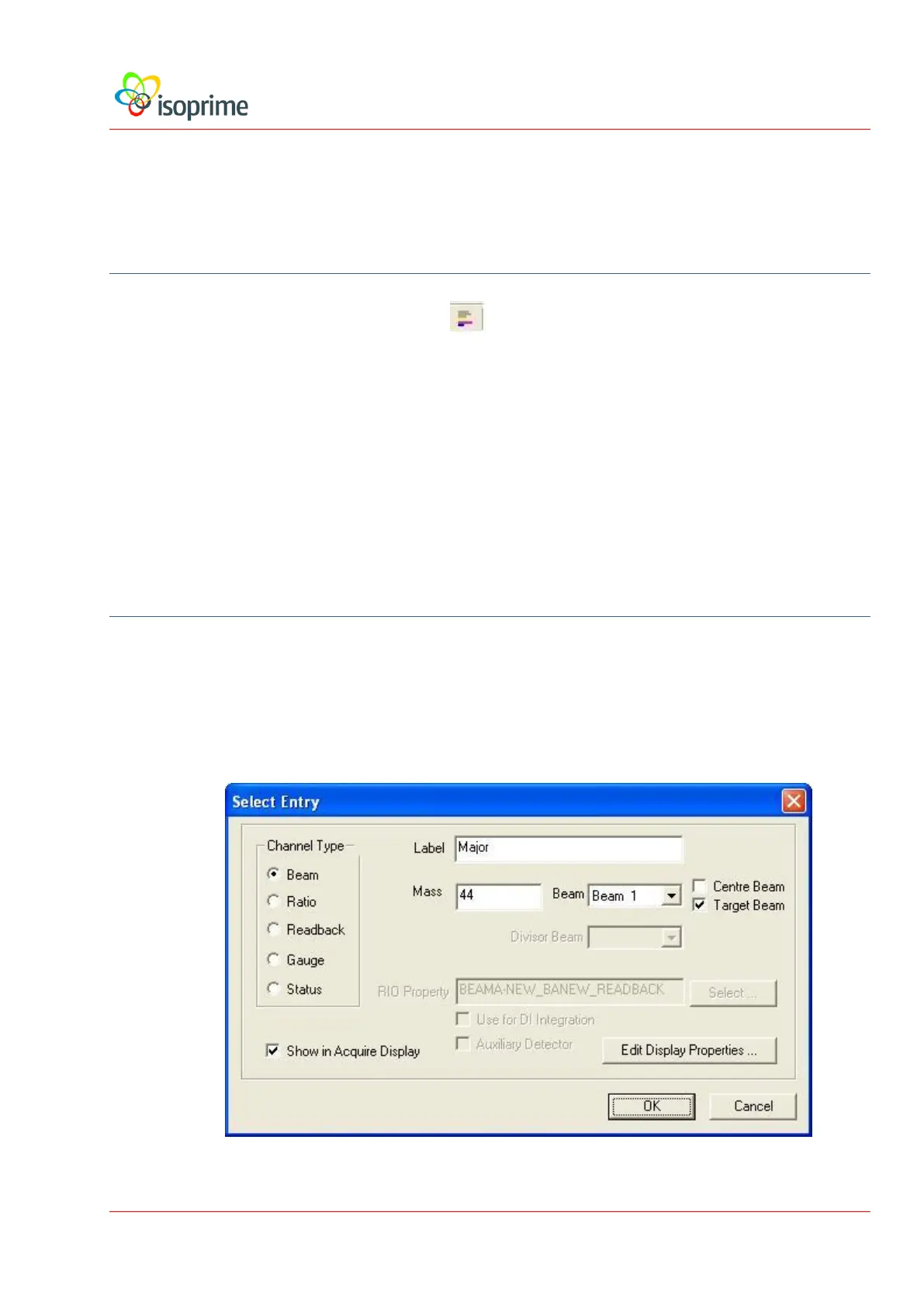

To add new entries to a map file, choose Edit, Add Entry. To modify an entry, either highlight
the entry and then select Edit, Edit Entry, or double click on the entry. In both cases, the
following Select Entry dialog is displayed:
