A charcoal filter is positioned in the path of the helium mass 4 beam. This filter absorbs the ions,
so preventing unwanted scattering throughout the collector assembly.

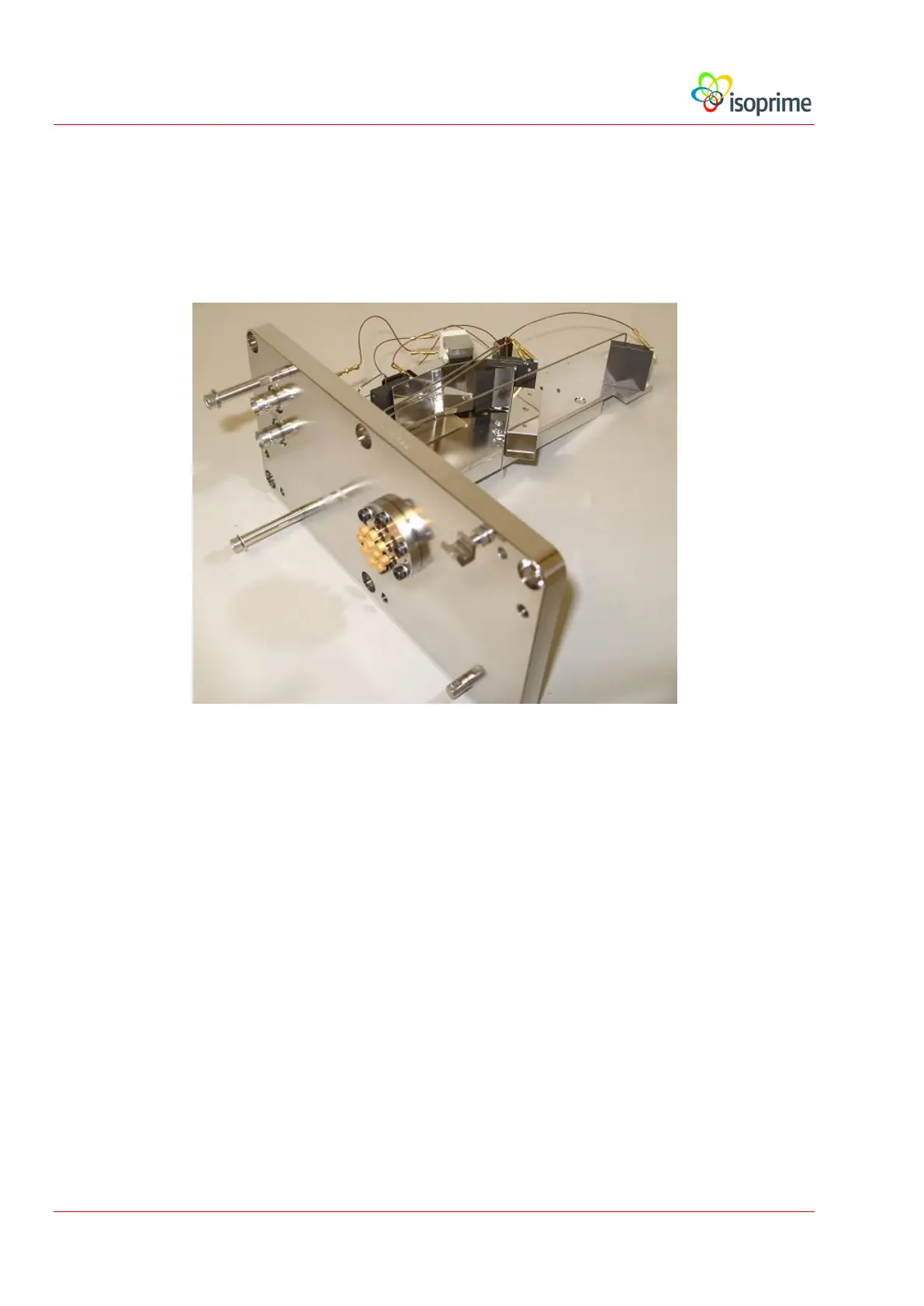

The following photograph shows the ESF collector with the ten pin feed-through:
Plan View of the ESF Hydrogen Collector
