Isoprime User’s Guide
Version 1.02 IsoPrime100 User’s Guide Page 82 of 219

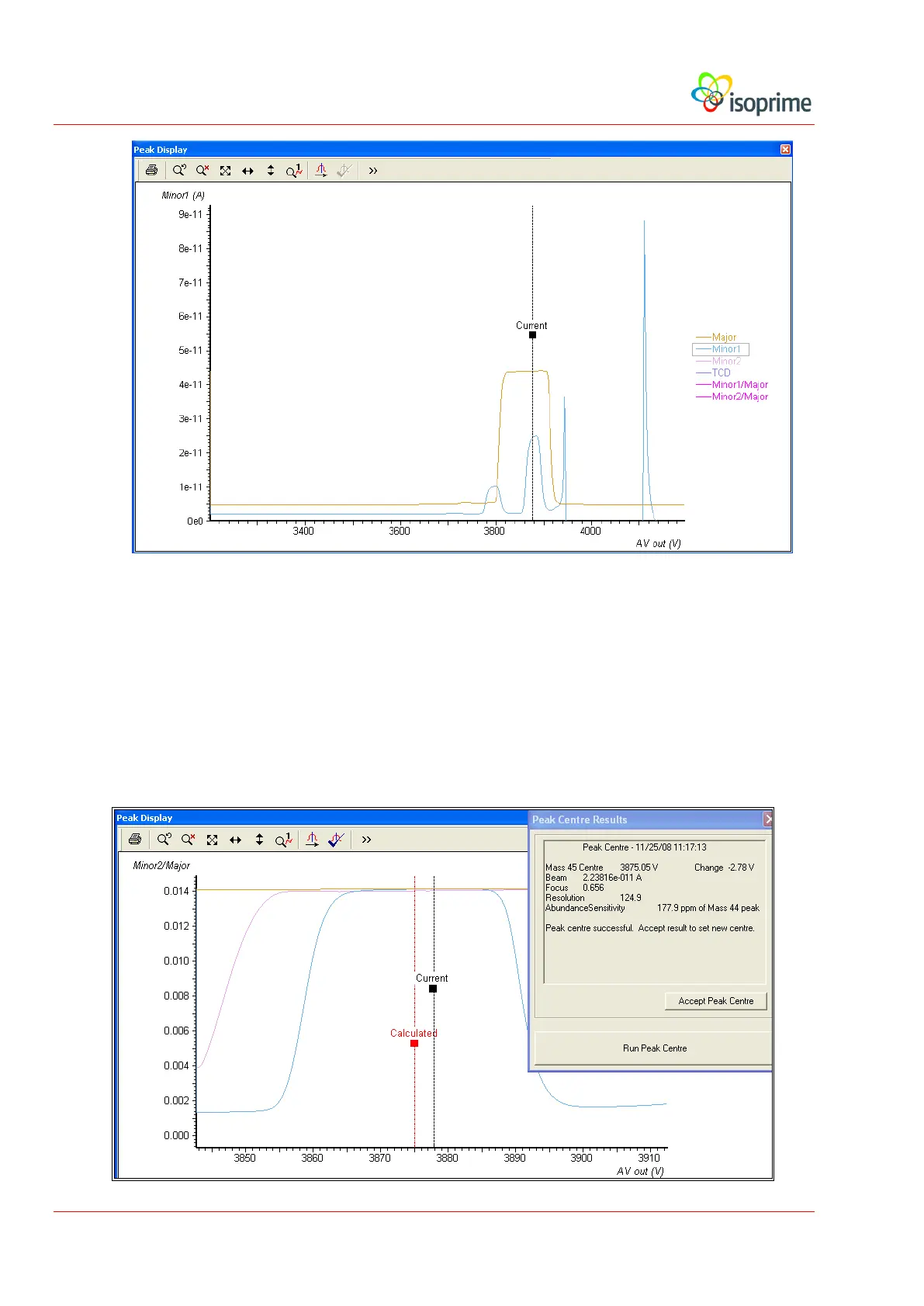

Using the Major channel as a guide the mass 44 beam is clearly visible at around 3900V. The 45
beam, being coincident with the mass 44 can be identified underneath the 44. Drag and drop
the Current slider bar somewhere over the centre of the 45 peak as shown above.
Run a peak centre (Acquire, Run Peak Centre):
