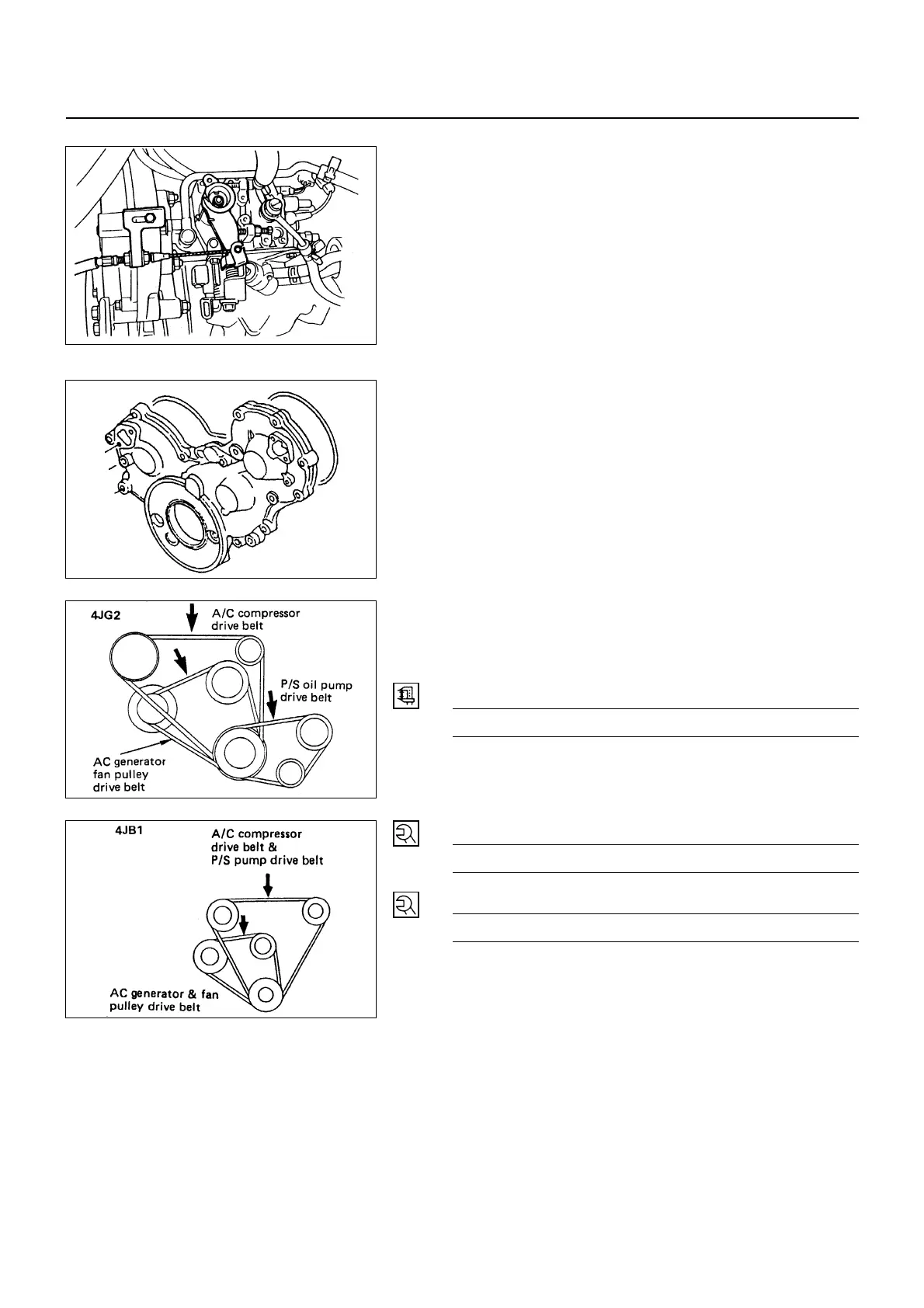

ENGINE FUEL 6C - 29
10. Fuel Hose
• Connect the fuel feed hose and fuel return hose.
• Connect the leak off hose.
9. Injection Pump Control Cable
1) Install the control wire to the engine control lever.
2) Hold the accelerator lever in the fully closed position
and stretch the control cable in the direction indicated
by the arrow to remove any slack.
3) Tighten the accelerator cable bracket bolt.
8. Air Intake Duct
7. Noise Cover Spacer
6. Noise Shield Cover
5. AC Generator Drive Belt
• Install AC generator drive belt and adjust belt tension.
• Depress the drive belt mid-portion with a 98 N (10
kg/22 lb) force.
Drive Belt Deflection mm (in)
8 (0.31) - 10 (0.39)
• Install fixing bolt and tighten bolts to the specified
torque.
Generator Fixing Bolt N∙m (Kg∙m/lb∙ft)
40 (4.1/30)
Adjust Plate Fixing Bolt N∙m (Kg∙m/lb∙ft)
19 (1.9/14)
6C-28-1.tif
6C-28-2.tif
6C-28-3.tif
6C-28-4.tif
To Next Page
