6C - 30 ENGINE FUEL
4. A/C Compressor Drive Belt (A/C Model)
• Install A/C compressor drive belt and adjust belt
tension.
• Depress the drive belt mid-portion with a 98N (10
kg/22 lb) force.
Drive Belt Deflection mm (in)
8 (0.31) - 10 (0.39)
• Tighten the idler lock nut to the specified torque
N∙m (Kg∙m/lb∙ft)
27 (2.8/20)
3. Power Steering Pump Drive Belt (P/S Model)
• Install P.S pump drive belt and adjust belt tension.
• Depress the drive belt mid-portion with a 98 N (10 kg/
22 lb) force.
Drive Belt Deflection mm (in)
8 (0.31) - 10 (0.39)
• Tighten the idler lock nut to the specified torque.
N∙m (Kg∙m/lb∙ft)
27 (2.8/20)
2. Fan Shroud
• Install the fan shroud and reservoir tank hose.

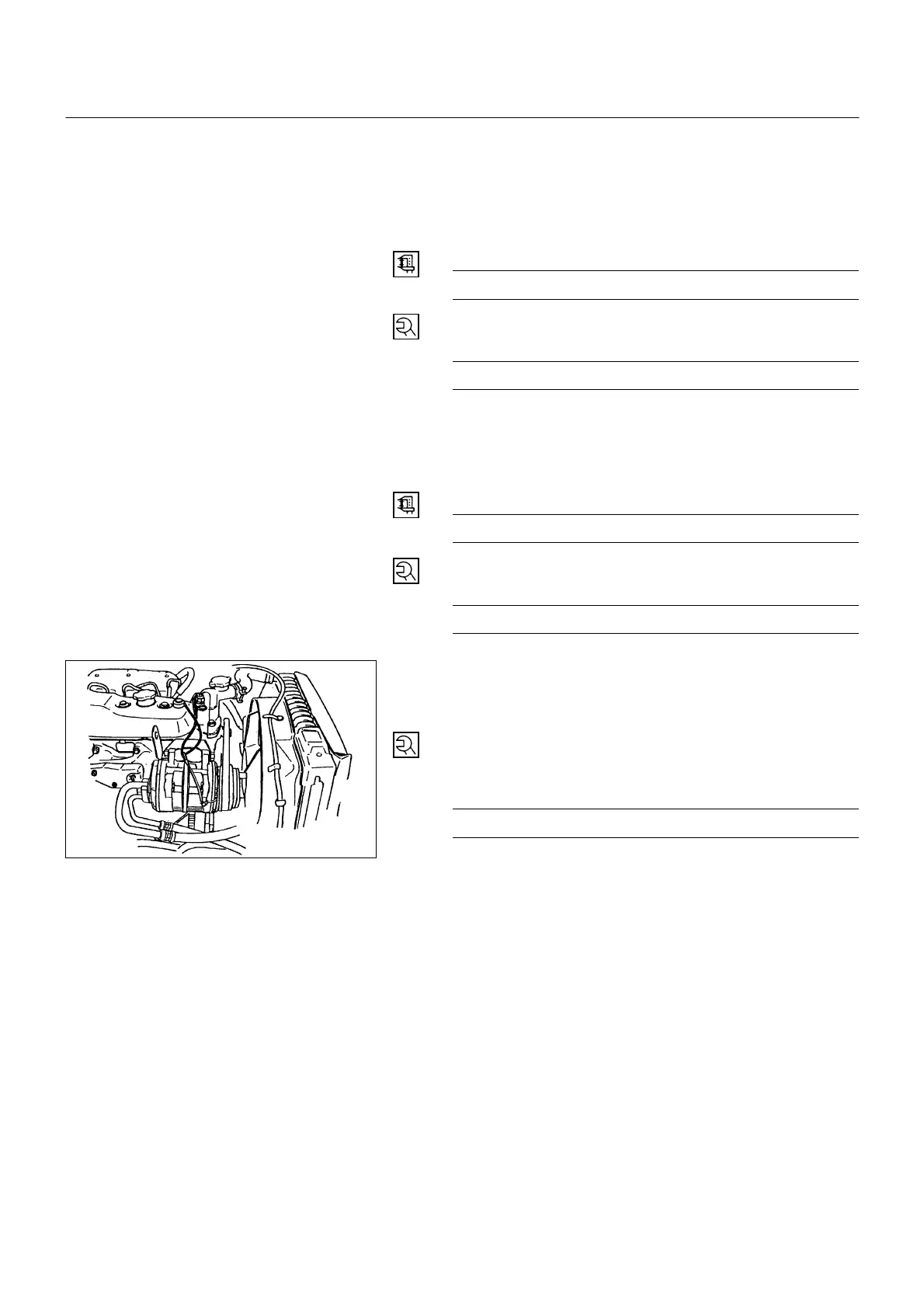

1. Cooling Fan Assembly
• Mount fan pulley, distance piece, and cooling fan
assembly (in this order) on the water pump, and
tighten to the specified torque.
N∙m (Kg∙m/lb∙in)
8 (0.8/69)
• Connect battery ground cable.
• Pour coolant.
6C-29-1.tif
To Next Page
