Taking the OVP as example, detailed configuration steps are as follows:
1. Press the [Menu] key to enter the Power Menu Configuration interface.
2. Select “Config > Conf1” to enter the Configuration Menu interface.
3. Press the [Channel(1/2)] soft key to select editing CH1. (Only
IT6402/IT6412/IT6412S contain this step.)

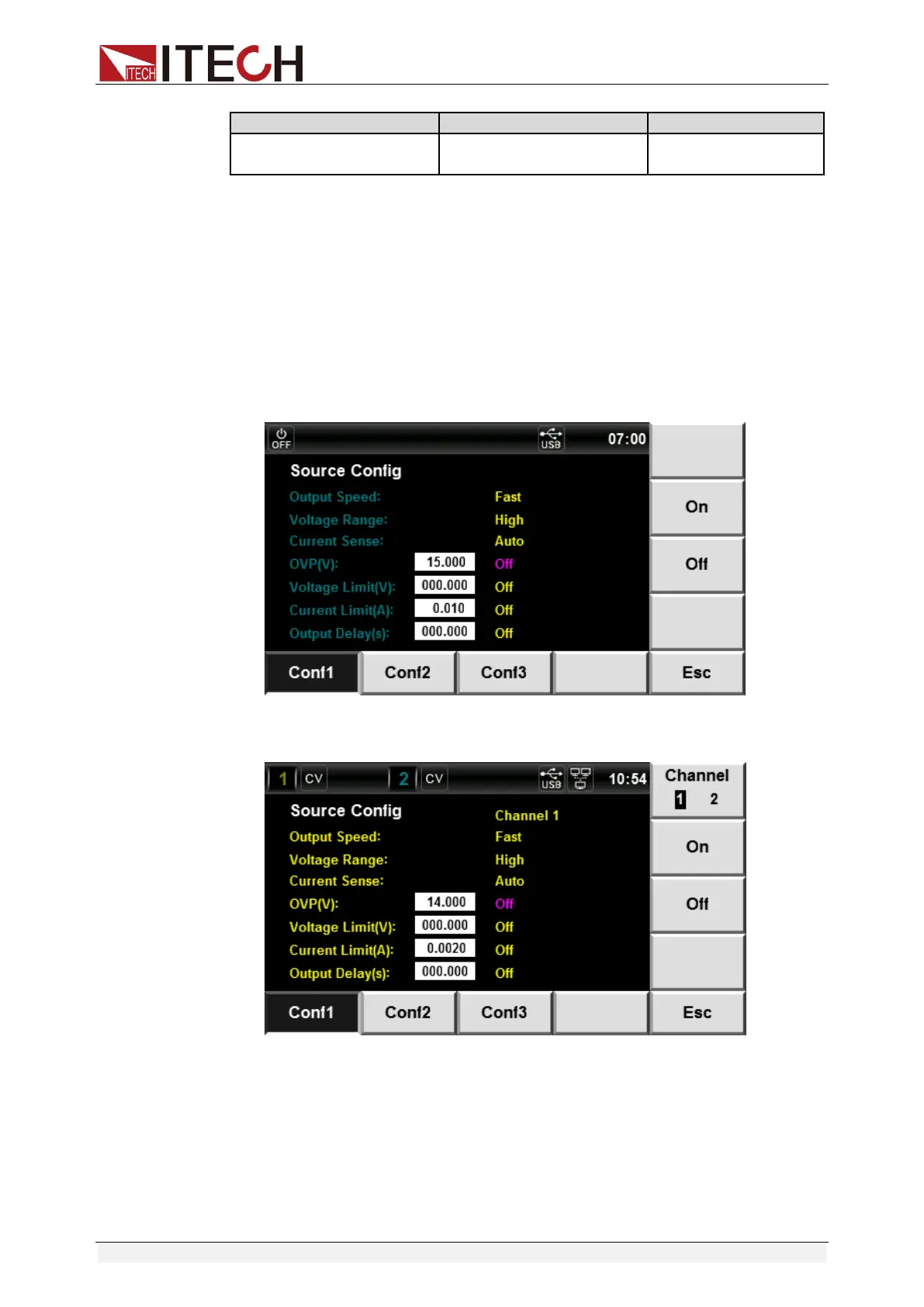

4. Press the Up/Down key to move the cursor to the configuration position of
OVP functional state, as shown in the figure below:
⚫ IT6411/IT6431/IT6432/IT6433/IT6411S/IT6432S
⚫ IT6402/IT6412/IT6412S
5. Press the corresponding soft key at right to configure the OVP functional
state. On: Switch on the OVP function; Off: Switch off the OVP function.
6. Press the Up/Down key to move the cursor to the configuration position of
OVP function protection point and directly use the Numeric keys or
Left/Right key and knob for adjustment to configure the voltage protection
point value.
⚫ IT6411/IT6431/IT6432/IT6433/IT6411S/IT6432S
