Battery Simulation Function
Copyright © Itech Electronic Co., Ltd. 53
No.
Description
Function Description
1
Status bar
-
2
Output setting area
⚫ V_limit/Vset: Charged voltage
⚫ I_limit/Iset: Charged current
3
System time
-
4
Output meter area
⚫ Q: Battery capacity
⚫ Vt/Udc: The real terminal voltage of the
battery.
⚫ I/Idc: The charging/discharging current.

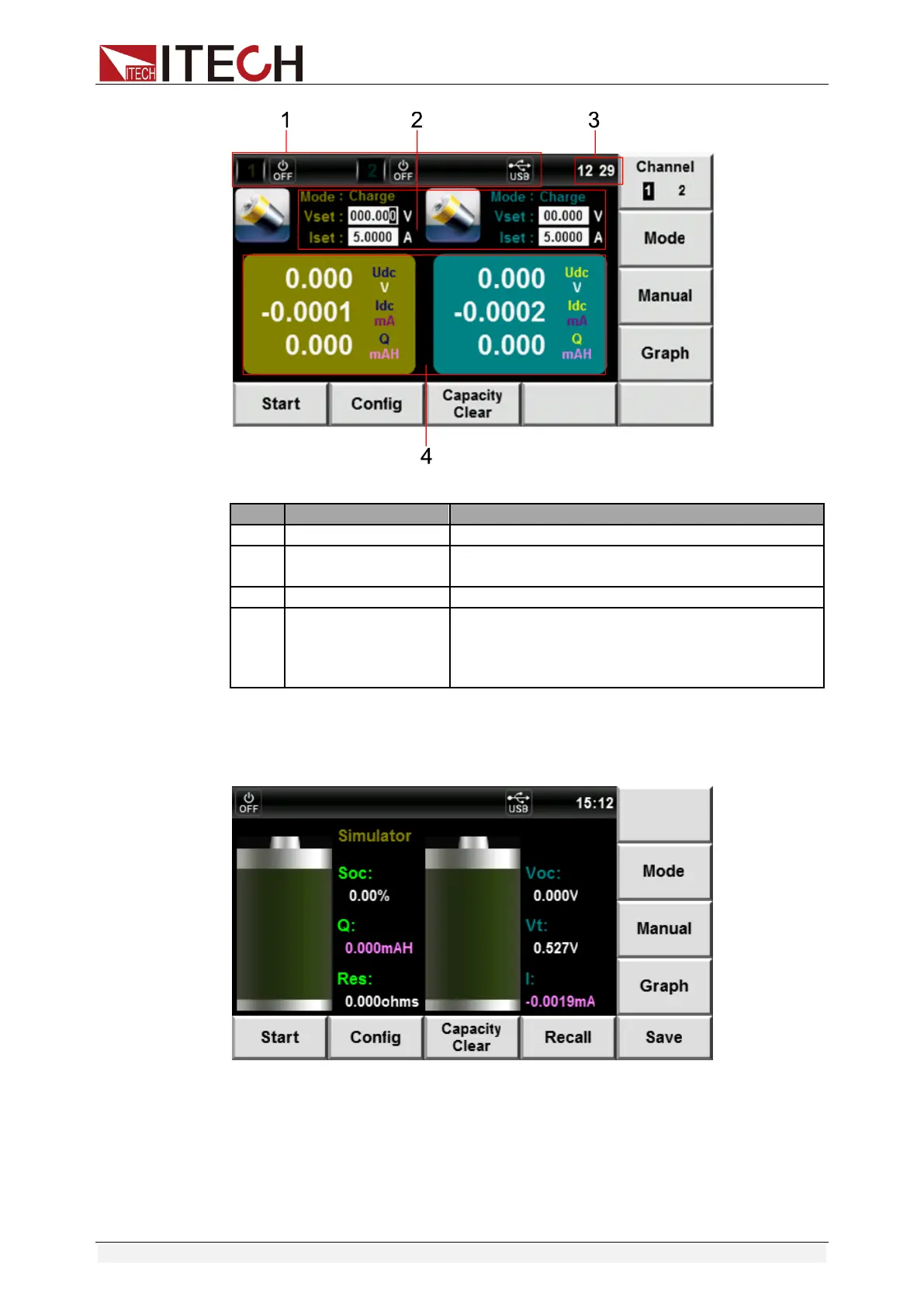

Introduction of Battery Simulation interface
⚫ IT6411/IT6431/IT6432/IT6433/IT6411S/IT6432S
⚫ IT6402/IT6412/IT6412S
