Battery Simulation Function
Copyright © Itech Electronic Co., Ltd. 64

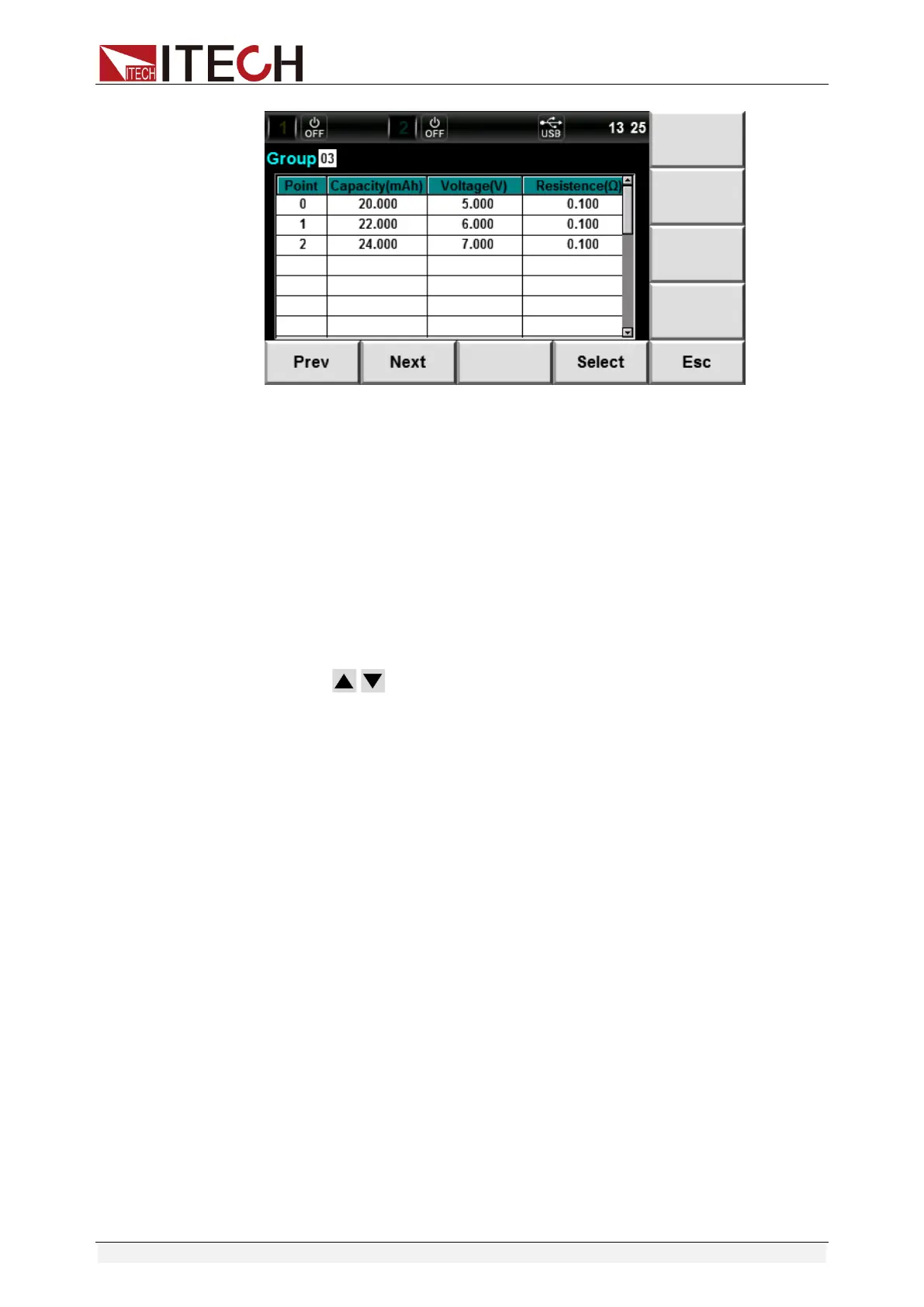

5. Press the [Select] soft key to recall data group.
6. Press the [Esc] soft key to return to the Battery Simulation Function
interface.
Battery characteristic simulation operation
1. Press the [Menu] key to enter the Menu Configuration page.
2. Select “Battery” to enter the Battery Simulation Function interface.
3. Press the right [Channel 1/2] soft key to select configuring channel CH2.
(Only IT6402/IT6412/IT6412S contain this step.)
4. Press the [Mode] soft key to select test mode.
5. Use the key or the Knob to select the “Simulator” (blue font
background).Press the [OK] key for confirmation.
6. Press the [Save] soft key. When the display screen prompts “Please Import
BatteryCH1.csv File”, import the external battery characteristic data.
⚫ External import: Insert the USB (containing BatteryCH1.csv
document) to the USB interface on the front panel of power supply.
The IT6400 series automatically detects and imports the
BatteryCH1.csv document.
⚫ Internal recall: Select the data group in which recall is required based
on the above steps in “Edit the battery characteristic data” and “Recall
the battery characteristic data group”.
7. Press the [Config] soft key and then input the maximum test current of the
battery characteristic simulation in the “Current Shut(A)” column.
8. Press the [Start] soft key to start battery simulation test.
9. The CH2 of the power supply will automatically switch off the output, once
the battery according to the characteristic data completes the test or the
setting conditions for stopping the test is reached. You can press [Stop] to
pause the test during the battery simulation test. And press [Capacity
Clear] to restart the test.
