星火全自动缝纫控制系统使用说明书
Operation Instruction for Xing Huo Automatic Sewing Control System

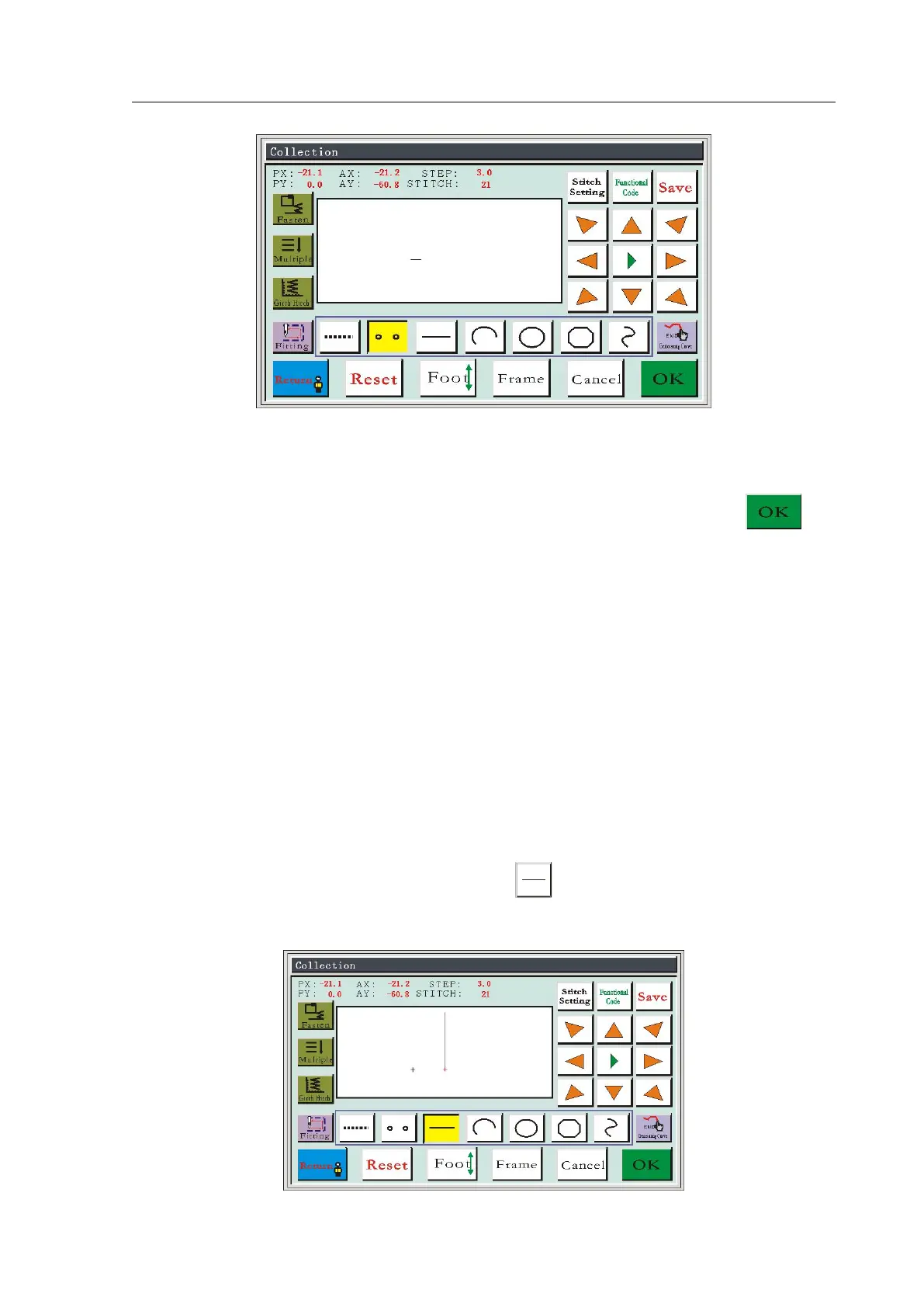

In single needle collection, two points generate a stitch.
Absolute origin or the end point of previous collection section is the first point of single
needle collection. Press keys to move the cursor to the needed position, press the key
to generate single needle. When single needle moving distance is greater than 12.7 MM,
collection of the section is invalid and it will return to the starting point of collection
automatically.
If it needs to insert the functional code at the end of the section, please refer to functional
code setting operations. This operation may be done at any time before the graphics
generation.
4.4 Straight Line Collection
In file collection main interface, press the key, the key background becomes
yellow, shows that the current section of collection is straight line mode, as shown in figure:
