星火全自动缝纫控制系统使用说明书
Operation Instruction for Xing Huo Automatic Sewing Control System
Press the Single Step or Continue key to move the cursor forward and backward to the
needed position. Press the key to enter the edit operation interface, as shown in figure:
Press numeric keys to input the number of threads needed to delete, press the
button to delete specified number of threads after the cursor point. If the deleted stitches are
more than the remaining stitches, all the subsequent stitches will be deleted.
It will return to the select stitch interface automatically, and you can continue to edit or
click button to save the changes and return to the edit file main interface.

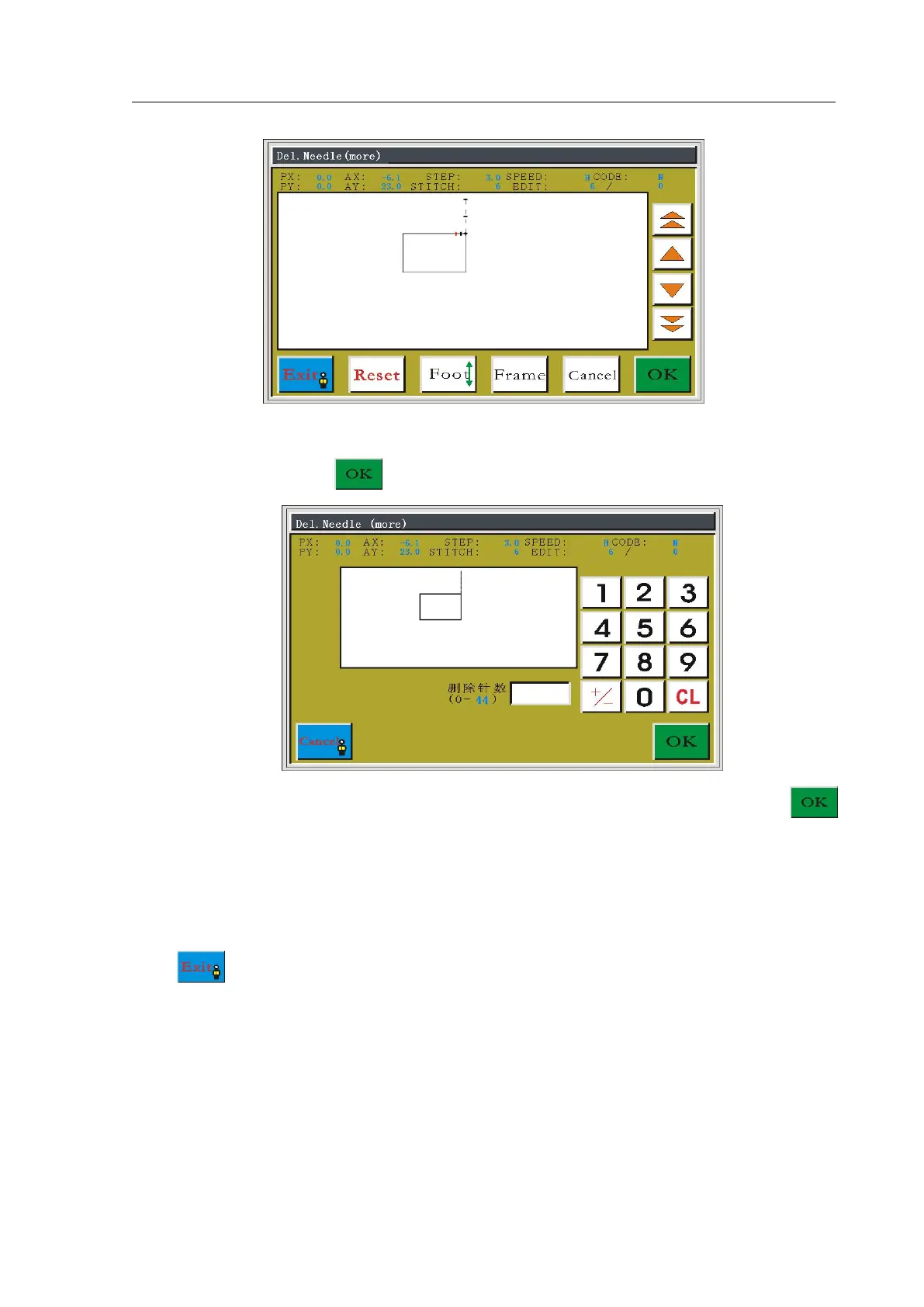

The following is the before and after contrast figures of deleting 3 threads at the 6th
needle position. After deleting, subsequent stitches will move as a whole.
