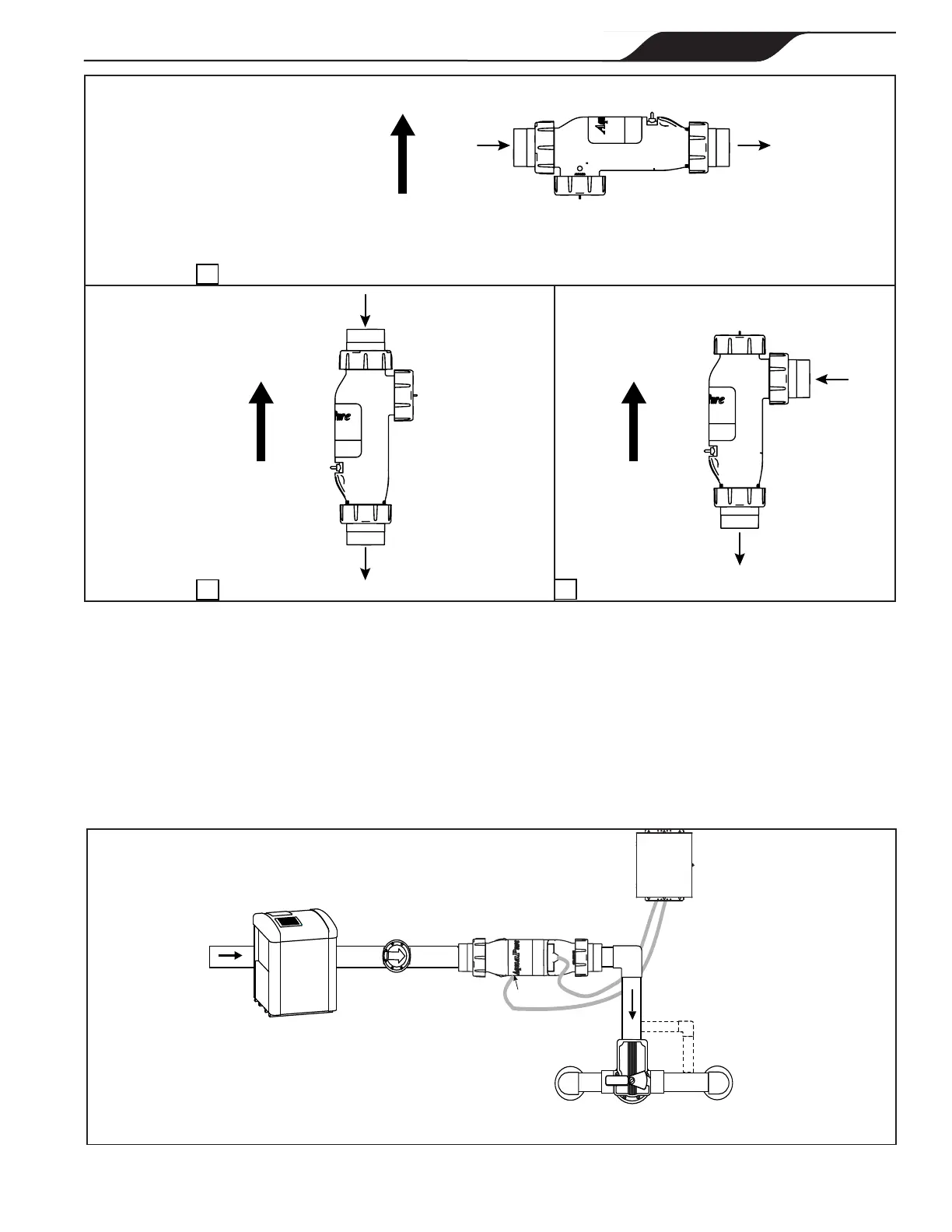

Figure 3. Chlorine Generator Cell and Sensor Orientation with Flow Direction
3.2.2 Recommended Plumbing Conguration
The preferred installation is that the cell and sensor are plumbed in the common line after (downstream)
the heater. The sensor is designed to be plumbed into the 3-port cell. Figure 4 illustrates the recommended
plumbing conguration, which results in the most reliable operation.
NOTE The AquaPure® and PureLink
TM
systems are powered from the LOAD SIDE of the pool circulation pump
relay.Thisensuresthatthecellonlyoperateswhenthepoolpumpisenergized.Theowsensorservesasa
secondarymeanstoensurethereissufcientowforthecelltooperate.
Spa
Bypass for
Spillover
Pool
Return
Cell
Spa
Return
JANDY
Sensor
Control/Power
Center
Heater
Figure 4. Recommended Plumbing Conguration for Pool/Spa Combination Systems
Page 13
ENGLISH
Page 13
ENGLISH
Jandy
®
AquaPure
®
/PureLink™ Power Center and Cell Kit
|
Installation and Operation Manual
