3.3 Installing AquaPure and PureLink Control/Power Centers
NOTE The control/power center should be located at or near the equipment pad.

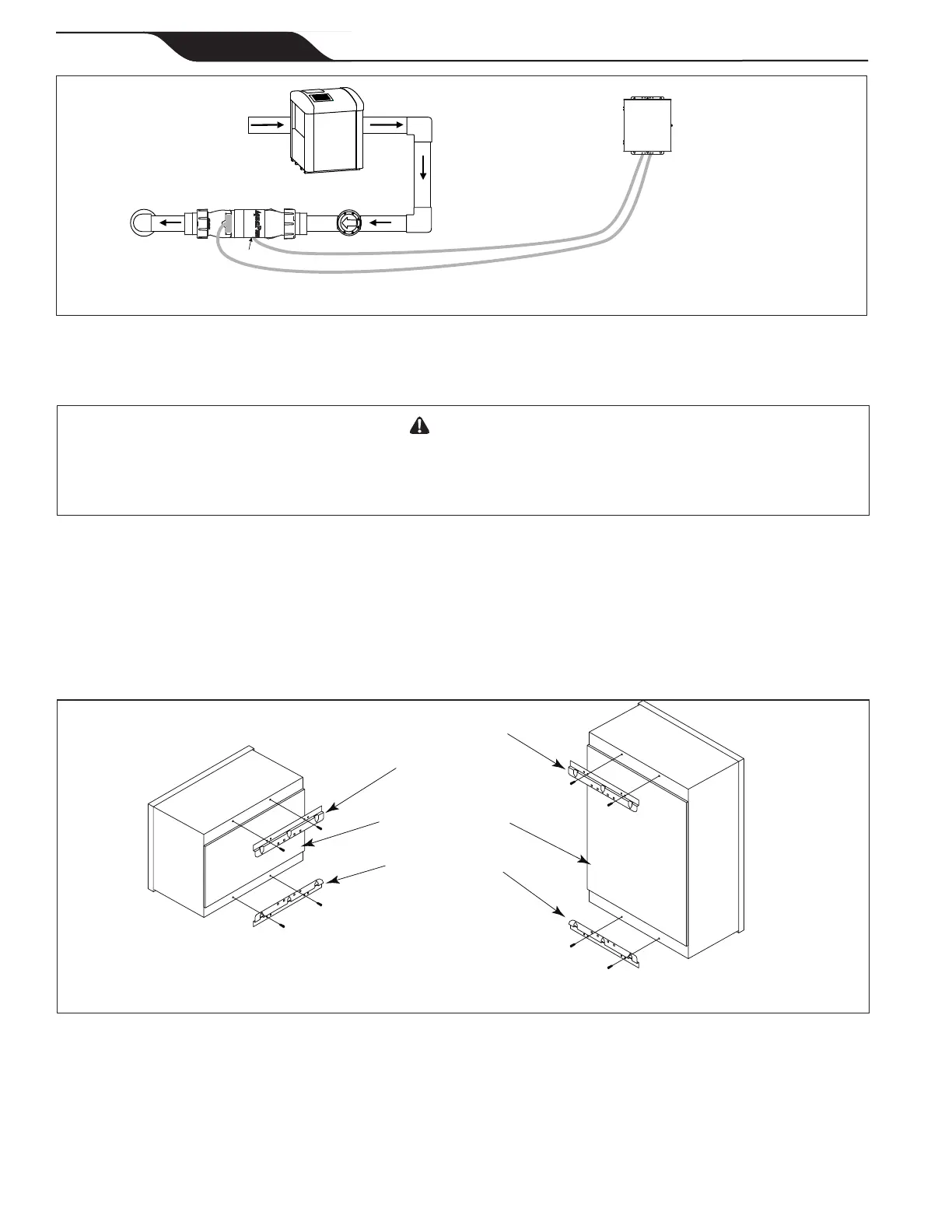

Figure 6. Removing the Control/Power Center Mounting Brackets from Shipping Position
1. Locate the control/power center at least ve (5) feet or more away from pool/spa and ve (5) feet off
the ground. All national, state, and local codes are applicable.
NOTE For Canadian installations, the control/power center must be at least three (3) meters (9.8 feet) away from the
pool/spa and 1.5 meters (5 feet) above the ground.
2. The control/power center comes with two (2) full length, heavy duty mounting brackets fastened to
the back of the power center during shipping. Remove the four (4) screws that are holding the two (2)
brackets and the cardboard shipping cover in place (see Figure 6). Remove and discard the cardboard.
3. Using the top mounting bracket as a guide, mark three (3) holes on the mounting surface where the
power center will ultimately reside (see Figure 7). Drill the holes in the mounting surface.
NOTE The three mounting holes are four inches (4") apart center to center.
NOTE Use heavy-weight screws. The power center with all available components installed can weigh up to 50
pounds.
CAUTION
The control/power center is not to be considered as suitable for use as service equipment. Therefore,
it is required to have the appropriate means of disconnection, circuit isolation, and/or branch circuit
protection installed upstream of the power center.
Remove the four (4)
screws that secure the
brackets to the Power
Center during shipping
Mounting Brackets (2)
Cardboard Shipping Cover
PureLink Power Center
AquaPure Control Center
Pool
Return
Cell
Control/Power
Center
Sensor
Heater
Figure 5. Recommended Plumbing Conguration for Pool or Dual Equipment Systems
