Jandy APUREM User Manual

9.3 3-Port Electrolytic Cell and Sensor
Replacement Parts (2” PVC Unions)
Dwg. # Kit # Description Qty.
1 R0475300
R0475400
3-Port Cell, APURE700, 2”
Threaded PVC Unions
3-Port Cell, APURE1400, 2”
Threaded PVC Unions
includes:
Cell Assembly
O-Ring, 2” Union, #2-144
O-Ring, Plug/Sensor, #2-231
DC 16’ Power Cord, Black
Plug, Port CG Cell
Nut, Union Universal
1
2
1
1
1
1
2 R0402800 16’ Cable, DC 1
3 R0476300 25’ Cable, DC 1
4 R0452500 Port Sensor 16’ w/O-Ring, 3-
Port Cell
1
5 R0476400 Port Sensor 25’ w/O-Ring,
3-Port Cell
1
6 R0412500 Nut, 2” PVC Union 1
7 R0412600 Tailpiece, 2” PVC 1
8 R0412700 O-ring, 2” Union 1
9 R0403800 Flow Sensor w/ 16’ Cable
(Tee Sensor Location Only)
1
10 SP3PLX 3-Port Spool Cleaning Kit
includes:
Spool, GC Cell, 3-Port
O-Ring, 2” Union, #2-144
O-Ring, Plug/Sensor, #2-231
Nut, 2” PVC Union
Nut, Union Universal
Tailpiece, 2” PVC
Plug, Port CG Cell
1
3
2
2
1
2
1

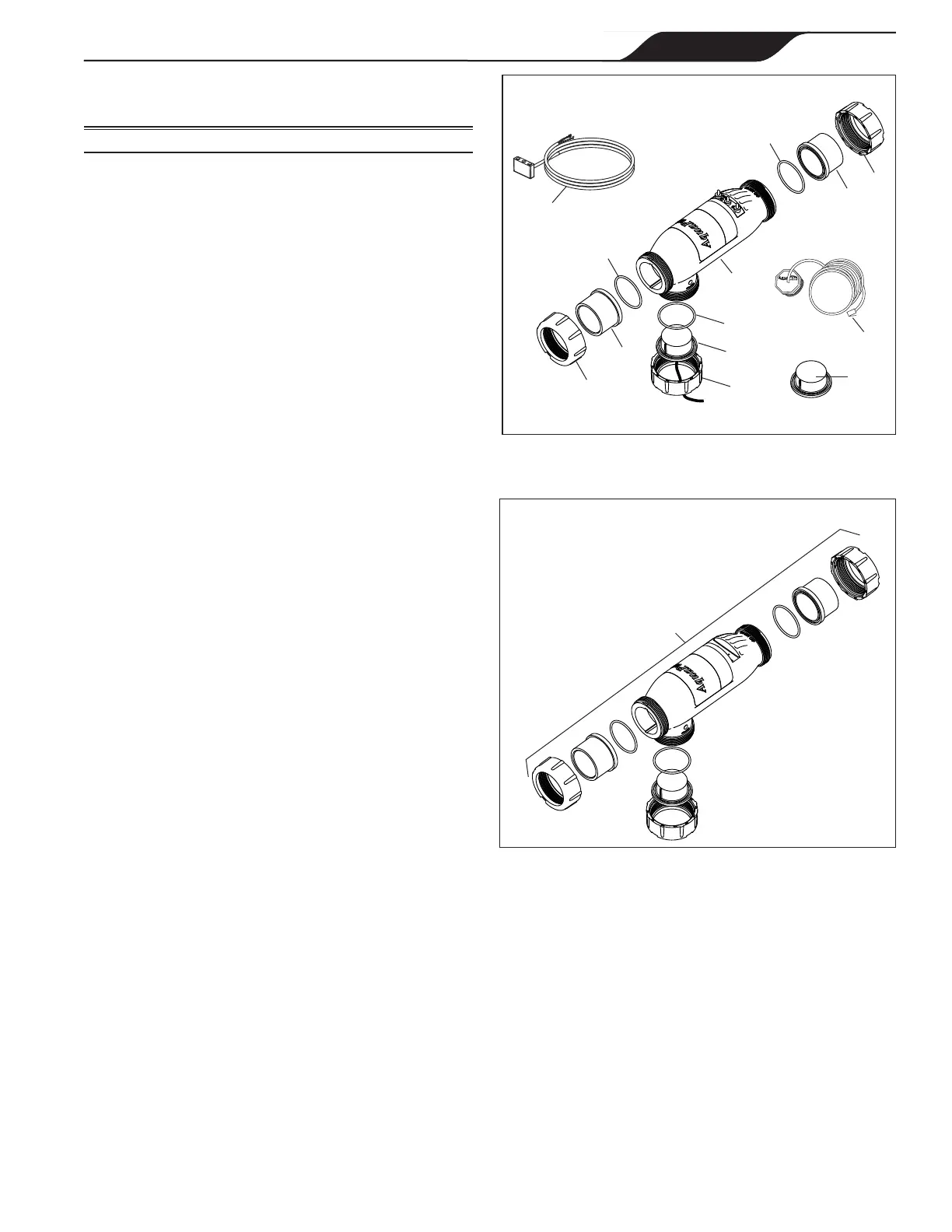

Figure 24. 3-Port Spool Exploded View
10
1, 2, 3
Figure 23. 3-Port Electrolytic Cell and Sensor
Exploded View (2” PVC Unions)
6
7
1, 8
1, 4, 5
4, 5
1
1
(Plug)
7
6
1, 8
9
1
Page 49
ENGLISH
Page 49
ENGLISH
Jandy
®
AquaPure
®
/PureLink™ Power Center and Cell Kit
|
Installation and Operation Manual
