Jandy APUREM User Manual

9.2 3-Port Electrolytic Cell and Sensor
Replacement Parts with Universal
Unions (2”-2½”)
Dwg.
#
Kit # Description Qty.
1 R0452100 Universal Union/Tailpiece/
Plug, 3-Port Cell includes:
Nut, Union Universal
O-Ring, #2-231
Tailpiece, 2” X 2 ½”
Plug, Port CG Cell
3
3
2
1
2 R0452200 O-Rings and Terminal
Adapter, 3-Port Cell includes:
O-Ring, #2-231
O-Ring, #2-106
Terminal Adapter
Screw, #6 X 1/2”
3
6
1
2
3 R0452300
R0452400
7-Blade Cell, 3-Port Cell
14-Blade Cell, 3-Port Cell
Includes:
Cell Assy, Apure
O-Ring, #2-231
DC 16’ Power Cord, Black
1
3
1
4 R0452500 Port Sensor 16’ w/O-Ring,
3-Port Cell
1
5 R0476400 Port Sensor 25’ w/O-Ring,
3-Port Cell
1
6 SP3P 3-Port Spool Cleaning Kit
includes:
Spool, GC Cell, 3-Port
O-Ring, #2-231
Nut, Union Universal
Tailpiece, 2” X 2½”
Plug, Port CG Cell
1
4
3
2
2
7 R0402800 16’ Cable DC 1
8 R0476300 25’ Cable, DC 1

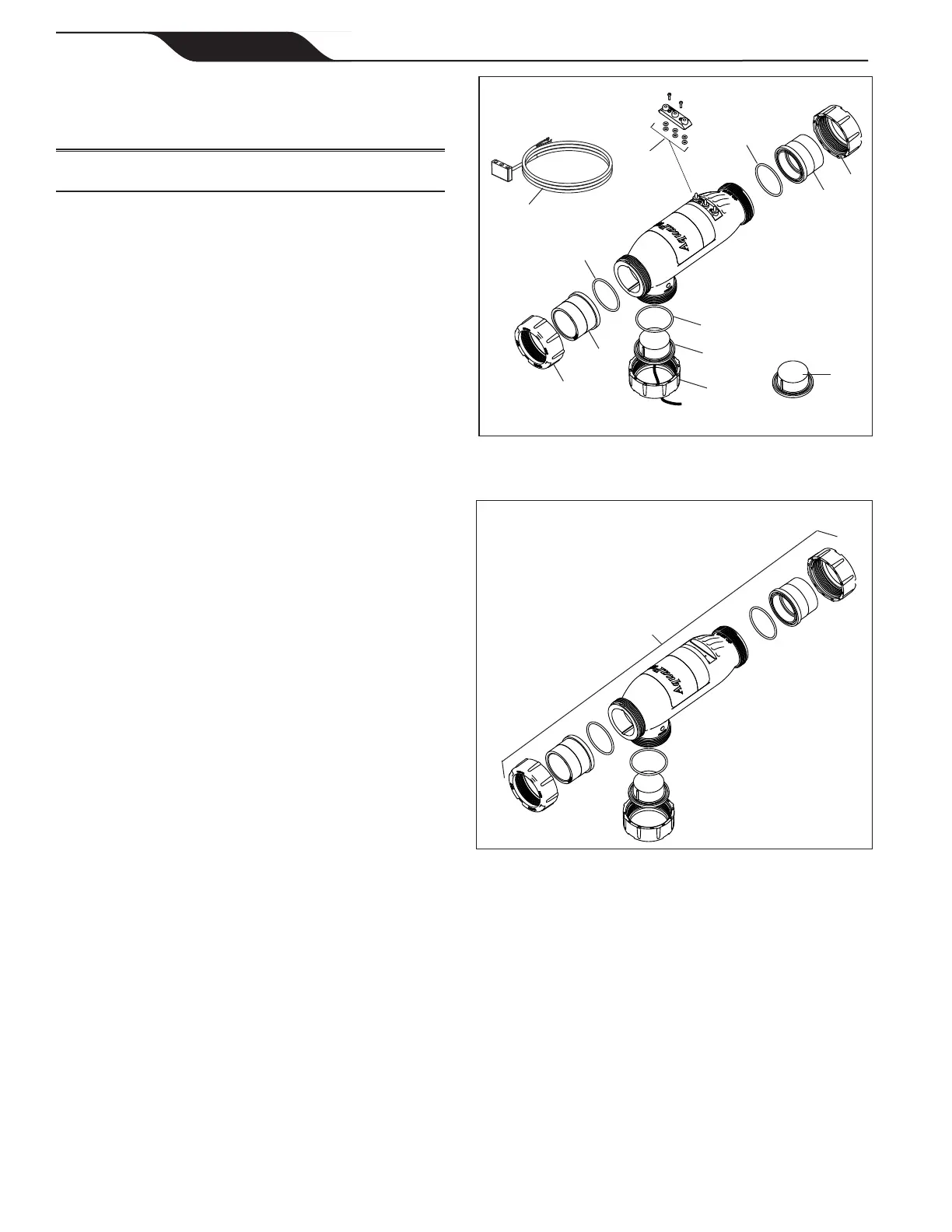

Figure 22. 3-Port Spool Exploded View
6
3, 7, 8
Figure 21. 3-Port Electrolytic Cell and Sensor
Exploded View (Universal Unions)
2
1
1
1, 2, 3
1, 2, 3, 4, 5
4, 5
1
1
1
1, 2, 3
1
(Plug)
Page 48
ENGLISH
Page 48
ENGLISH
Jandy
®
AquaPure
®
/PureLink™ Power Center and Cell Kit
|
Installation and Operation Manual
