Jandy APUREM User Manual

3.8.2 Connection of PureLink Chlorine Generator Electronics to an AquaLink
®
Control
System
The chlorine generator electronics in the PureLink Power Center and the AquaLink controller require a
four (4) wire connection to communicate. Any outdoor rated four (4) conductor cable, minimum 22 AWG,
can be used. Locate the appropriate screw terminals on the circuit board according to Figures 16. Wire the
chlorine generator Power Interface Board (PIB) from the red 4-pin terminal bar to the AquaLink red 4-pin
terminal bar (see Figure 16).
Referring to Figures 2a or 2b, wire the PureLink power center transformer to the load side of the lter pump
relay.

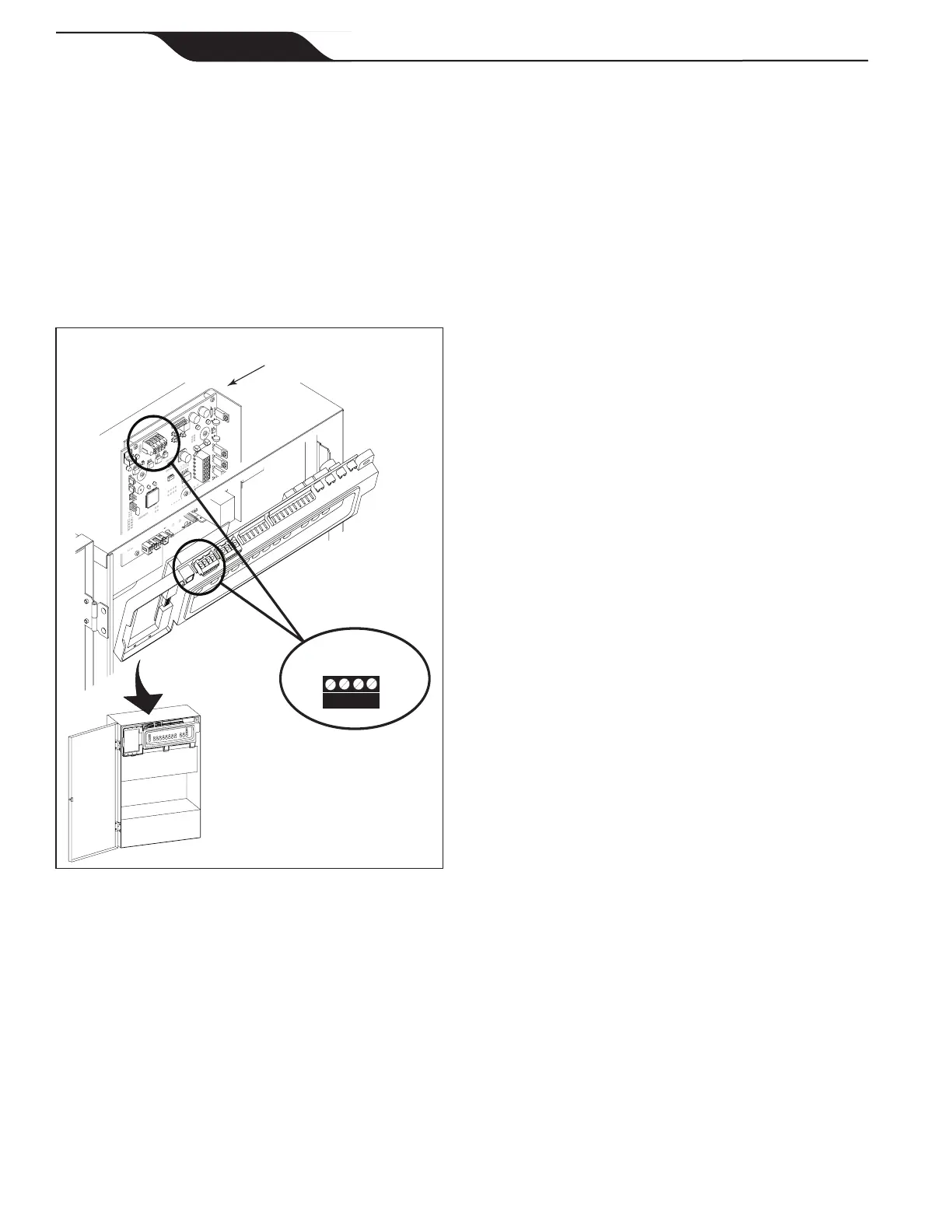

Figure 16. Wiring a PureLink Control System Network
PureLink
Power Center
Chlorine Generator
Power Interface Board
4321
RED BLK YEL GRN
Red, 4-Pin
Terminal Bar
Page 24
ENGLISH
Page 24
ENGLISH
Jandy
®
AquaPure
®
/PureLink™ Power Center and Cell Kit
|
Installation and Operation Manual
