MV & LV SERIES ENGINEERED DRY CHEMICAL FIRE EXTINGUISHING SYSTEM
OPERATION, DESIGN, & SERVICE MANUAL
REV C
Document # DOC324
Issued: April 26, 2018
Revised: March 22, 2022
UL FILE # EX27541

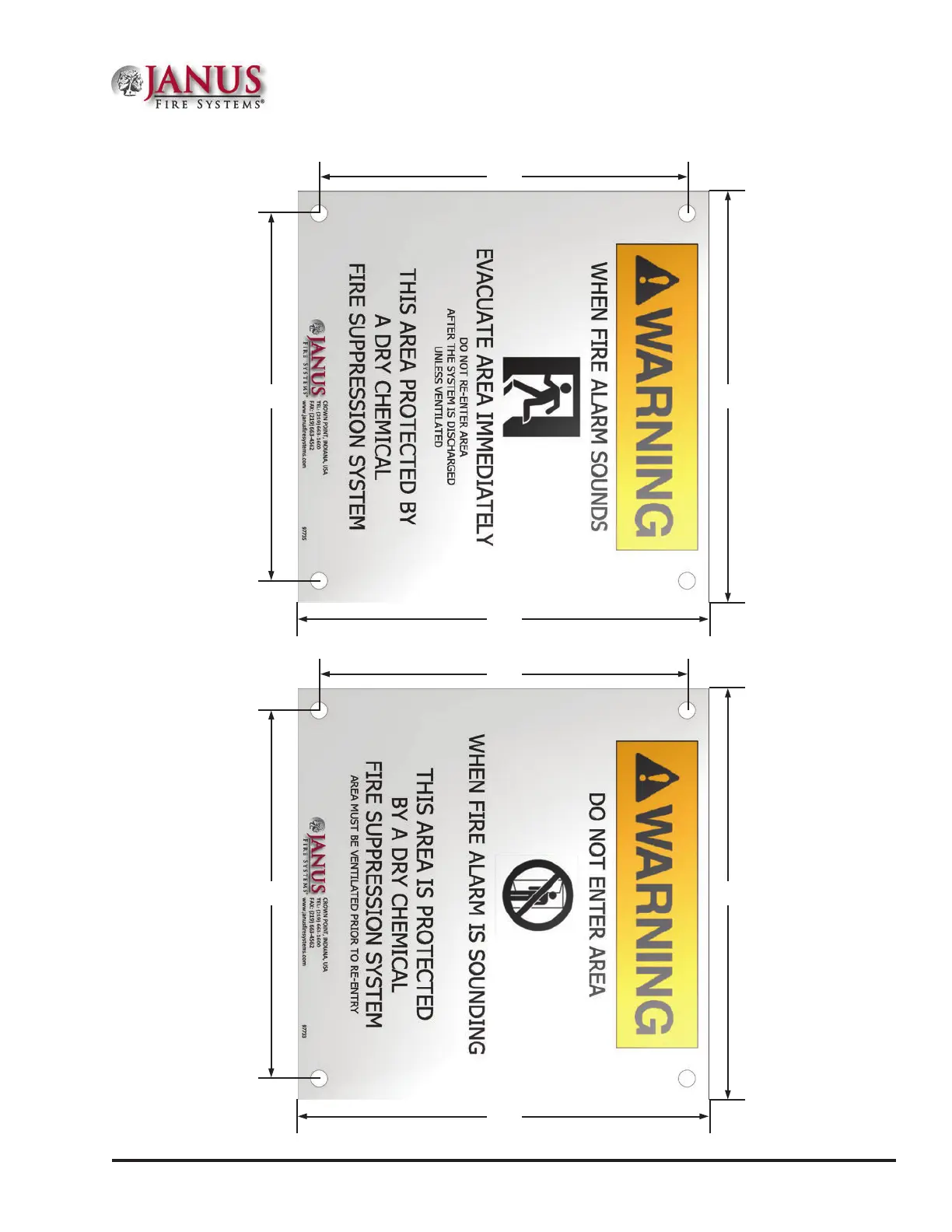

Figure 5.6a Dry Chemical Warning Sign - Exit (P/N 97735)
Figure 5.6b Dry Chemical Warning Sign - Entrance (P/N 97733)
6.0 in
152 mm
6.0 in
152 mm
6.0 in
152 mm
6.0 in
152 mm
5.5 in
140 mm
5.5 in
140 mm
5.5 in
140 mm
5.5 in
140 mm
Section 5 Commissioning System
