5.8 Manual
An "as built" instruction and maintenance manual that includes a full sequence of operations and a full set
of drawings and calculations shall be maintained on site.
5.9 Label
Each cylinder is fitted with an identification label indicating the fill quantity of Dry Chemical agent.
ENGINEERED DRY CHEMICAL FIRE SUPPRESSION SYSTEM
DANGER:
DANGER:
HIGH-PRESSURE CYLINDER, CAPABLE OF VIOLENT DISCHARGE. EXTREMELY HAZARDOUS. CAN CAUSE SEVERE INJURY OR DEATH.
EXTINCTEUR À HAUTE PRESSION, CAPABLE D'UNE DÉCHARGE VIOLENTE. EXTRÊMEMENT DANGEREUX. PEUT CAUSER DES
BLESSURES GRAVES OU LA MORT.
CONTENTS: ABC DRY CHEMICAL / HMIS 1-0-0 MONO-AMMONIUM PHOSPHATE, FULLERS EARTH MAGNESIUM ALUMINUM SILICATE, MICA-POTASSIUM
ALUMINUM SILICATE / NUISANCE DUST, IRRITANT / SUPERPRESSURIZED WITH DRY NITROGEN AT 70°F (21°C) TO 500 PSI (34.48 BAR). NITROGEN
EXPELLANT GAS / HMIS 0-0-0, VERY COLD DISCHARGE
FOR CHEMICAL EMERGENCY CONTACT: 1-800-424-9300 OR 1-703-527-3887
TEMPERATURE LIMITATIONS: LOCAL APPLICATION, OVERHEAD: 32°F TO 120°F (0°C TO 49°C) TANKSIDE: -20°F TO 120°F (-29°C TO 49°C)
TOTAL FLOOD: -40°F TO 120°F (-40° TO 49°C) VEHICLE PAINT SPRAY BOOTH: -20°F TO 120°F (-29°C TO 49°C)
OPEN PAINT SPRAY BOOTH: -20°F TO 120°F (-29°C TO 49°C)
SYSTEM DESIGN REFERENCES
THE SYSTEM IS DESIGNED TO BE INSTALLED, INSPECTED AND MAINTAINED IN ACCORDANCE WITH JANUS INSTALLATION,
OPERATION AND MAINTENANCE MANUAL (DOC324, DOC348) AND NFPA 17, STANDARD FOR DRY CHEMICAL EXTINGUISHING
SYSTEMS. THIS SYSTEM IS MADE UP OF UNITS TESTED WITHIN LIMITATIONS CONTAINED IN THE DETAILED INSTALLATION
MANUAL. THE SYSTEM DESIGNER MUST BE CONSULTED WHENEVER CHANGES ARE PLANNED FOR THE SYSTEM OR AREA OF
PROTECTION. AN AUTHORIZED INSTALLER OR SYSTEM DESIGNER MUST BE CONSULTED AFTER THE SYSTEM HAS DISCHARGED
INSPECTION INSTRUCTIONS
INSPECT MONTHLY OR AT MORE FREQUENT INTERVALS WHEN CIRCUMSTANCES REQUIRE. VERIFY THAT ALL PARTS ARE FREE
FROM DAMAGE OR CORROSION. CYLINDER PRESSURE MUST BE IN OPERABLE RANGE. DISCHARGE HOSE AND NOZZLES SHALL
BE FREE FROM OBSTRUCTIONS. ALL NOZZLES, DETECTORS, CYLINDERS AND OTHER HARDWARE MUST BE SECURE. NOZZLE
DUST CAPS SHALL BE IN PLACE. RECORD DATE OF INSPECTION ON INSPECTION TAG. CYLINDER WEIGHT AND PRESSURE SHALL
BE CHECKED AT LEAST SEMIANNUALLY.
RECHARGE
A DISCHARGE MAY CAUSE AGENT CYLINDER DISCHARGE VALVE TO LEAK IF NOT CLEANED AND MAINTAINED PRIOR TO FILLING.
COMPLETE RECHARGE REQUIREMENTS ARE FOUND IN INSTALLATION, OPERATION
AND MAINTENANCE MANUAL(DOC324, DOC348).
CAUTION:
CAUTION:
THIS CYLINDER MUST BE TRANSPORTED, STORED, AND MOUNTED VERTICALLY.
IMPROPER INSTALLATION WILL RESULT IN SYSTEM MALFUNCTION.
BEFORE HANDLING JANUS FIRE SYSTEMS® PRODUCTS, ALL PERSONNEL MUST BE THOROUGHLY TRAINED IN THE SAFE HANDLING OF THE
CYLINDERS, AS WELL AS IN THE PROPER PROCEDURES FOR INSTALLATION, REMOVAL, AND CONNECTION OF OTHER CRITICAL DEVICES,
SUCH AS FLEXIBLE HOSE, VALVE ACTUATORS, AND ANTI-RECOIL DEVICES.
WARNING:
THE DISCHARGE OF DRY CHEMICAL SYSTEMS TO EXTINGUISH A FIRE CAN RESULT IN A POTENTIAL
HAZARD TO PERSONNEL FROM THE NATURAL FORM OF THE ABC POWDER OR FROM THE PRODUCTS OF COMBUSTION
THAT RESULT FROM EXPOSURE OF THE AGENT TO THE FIRE OR HOT SURFACES. UNNECESSARY EXPOSURE OF
PERSONNEL EITHER TO THE NATURAL AGENT OR TO THE PRODUCTS OF DECOMPOSITION SHALL BE AVOIDED.
MISE EN GARDE:
LA DÉCHARGE DES SYSTÈMES CHIMIQUES SECS POUR ÉTEINDRE UN INCENDIE PEUT ENTRAÎNER UN
RISQUE POTENTIEL POUR LE PERSONNEL EN RAISON DE LA FORME NATURELLE DE LA POUDRE ABC OU DES PRODUITS
DE COMBUSTION QUI RÉSULTENT DE L'EXPOSITION DE L'AGENT AU FEU OU AUX SURFACES CHAUDES. TOUTE
EXPOSITION INUTILE DU PERSONNEL À L'AGENT NATUREL OU AUX PRODUITS DE DÉCOMPOSITION DOIT ÊTRE ÉVITÉE
ANTI-RECOIL DEVICE SHALL BE INSTALLED ON VALVE OUTLET AT ALL TIMES EXCEPT WHEN AGENT
CYLINDER IS CONNECTED TO SYSTEM DISTRIBUTION NETWORK OR BEING PRESSURIZED. AGENT CYLINDER IS
HIGHLY PRESSURIZED. DO NOT INCINERATE.
RECYCLING PROTECTS THE ENVIRONMENT. DO NOT DISPOSE. DISCHARGE ONLY IN CASE OF FIRE. ABC DRY CHEMICAL SHALL BE COLLECTED AND RECYCLED IN AN ENVIRONMENTALLY SOUND MANNER AND IN ACCORDANCE WITH EXISTING LAWS AND REGULATIONS.
IF CONTAINER CONTENTS MUST BE REMOVED FOR SERVICE, MAINTENANCE OR DISMANTLING OF THE SYSTEM – PRIOR TO REMOVAL, CONTACT YOUR LOCAL INSTALLER OR MANUFACTURER FOR INSTRUCTIONS ON HANDLING EQUIPMENT.
LBS. (KG) ABC DRY CHEMICALAGENT WEIGHT
EMPTY WEIGHT
FULL WEIGHT
FILL STATION #
AGENT LOT #
CYLINDER
ASSEMBLY P/N
MANUFACTURER
FILL DATE
LBS. (KG) INCLUDING INSTALLED ANTI-RECOIL DEVICE
LBS. (KG) ABC DRY CHEMICAL &
NITROGEN PRESS
URIZED TO 500 PSI (34.48 BAR) AT 70°F (21°C)
TEL: (219) 663-1600 FAX: (219) 663-4562
DO NOT COVER, REMOVE, OR DEFACE THIS LAB
CYLINDER INSTALLATION
1. PLACE CYLINDER IN BRACKET
ASSEMBLY AND SECURE WITH
STRAP.
2. REMOVE ANTI-RECOIL SAFETY
DEVICE FROM CYLINDER/VALVE
ASSEMBLY.
3. SECURELY CONNECT CYLINDER
VALVE TO MANIFOLD OR PIPING
SYSTEM.
4. ATTACH THE REQUIRED VALVE
ACTUATION DEVICES.
CYLINDER REMOVAL FROM SERVICE
1. REMOVE ALL VALVE ACTUATION
DEVICES (ELECTRIC, MANUAL,
AND/OR PNEUMATIC) FROM
CYLINDER VALVE.
2. DISCONNECT CYLINDER/VALVE
ASSEMBLY FROM MANIFOLD OR
PIPING SYSTEM.
3. INSTALL ANTI-RECOIL SAFETY
DEVICE TO DISCHARGE OUTLET.
4. REMOVE CYLINDER STRAP AND
REMOVE CYLINDER FROM
BRACKET ASSEMBLY.
PART NO.: 25166
DO NOT DEPRESS VALVE STEM. AGENT DISCHARGE WILL RESULT.
DRY-CHEMICAL EXTINGUISHING
SYSTEM UNIT - ENGINEERED TYPE
UL FILE # EX27541
STANDARD
MANUAL VALVE
ACTUATOR
EXPLOSION-PROOF
MANUAL VALVE
ACTUATOR
EXPLOSION-PROOF PRIMARY TRIM KIT
STANDARD INDUSTRIAL
PRIMARY ACTUATION
COMPONENTS
MARINE PRIMARY
ACTUATION
COMPONENTS
SLAVE CYLINDER
ACTUATION
COMPONENTS
EXPLOSION-PROOF
MANUAL-PNEUMATIC VALVE
ACTUATOR
EXPLOSION-PROOF
SOLENOID KIT
W/ PRESSURE SWITCH
STANDARD
ELECTRIC VALVE
ACTUATOR
VENT
CHECK
PNEUMATIC
VALVE
ACTUATOR
MARINE
MANUAL-PNEUMATIC
VALVE
ACTUATOR
VENT
CHECK
MARINE
MANUAL VALVE
ACTUATOR
CONTACT JANUS FIRE SYSTEMS FOR ALL OTHER CONCERNS
WARNING:
UN DISPOSITIF ANTI-RETOUR DOIT ÊTRE INSTALLÉ SUR LA SORTIE DE LA VANNE EN PERMANENCE,
SAUF LORSQUE LE CYLINDRE D'AGENT EXTINCTEUR EST RACCORDÉ AU RÉSEAU DE DISTRIBUTION DU SYSTÈME OU
SE TROUVE SOUS PRESSION. LE CYLINDRE D'AGENT EXTINCTEUR EST HAUTEMENT PRESSURISÉ. NE PAS L'INCINÉRER.
MISE EN GARDE:
ANTI-RECOIL
SAFETY PLUG
(SV ONLY)
ANTI-RECOIL
SAFETY DEVICE
(MV AND LV)

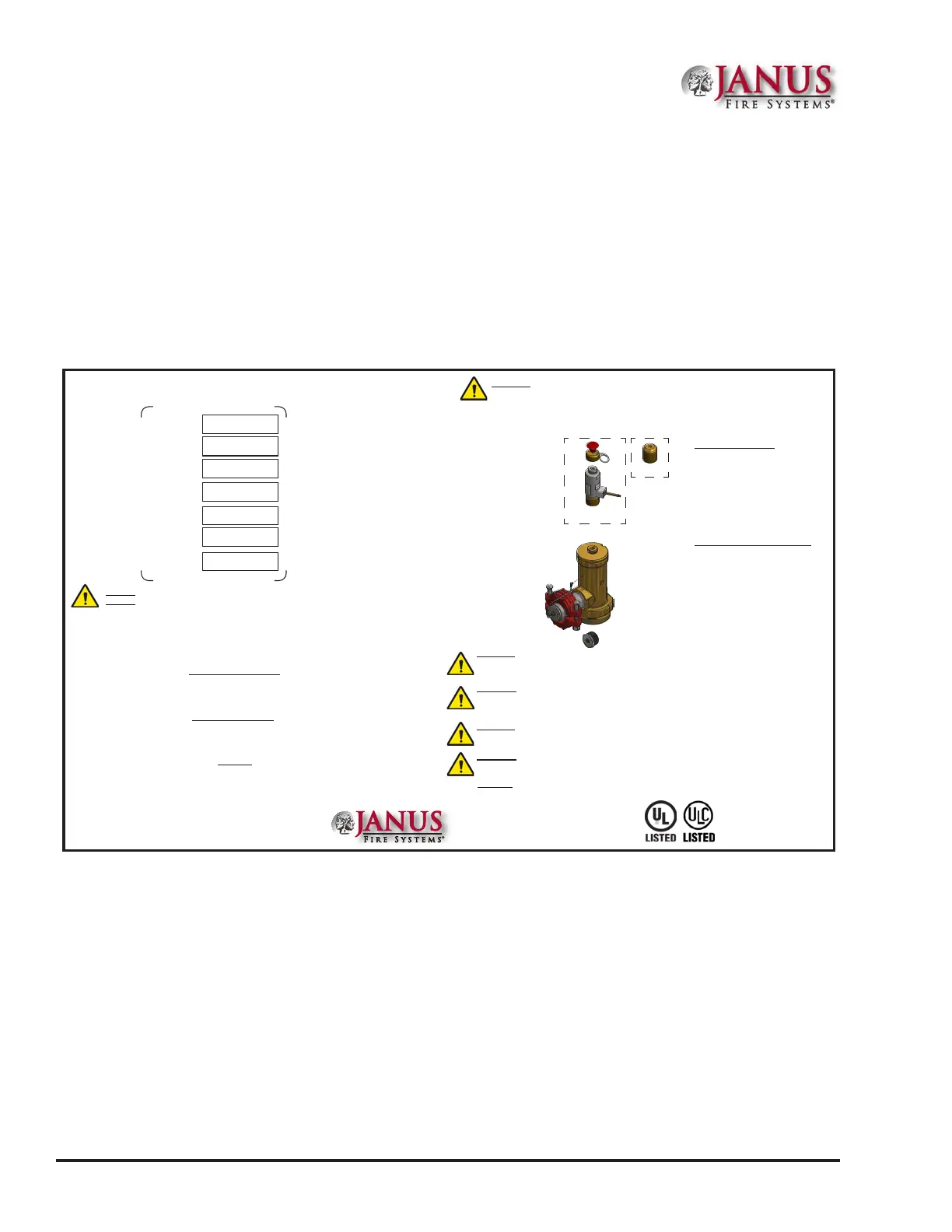

Figure 5.9 Cylinder Label
