MV & LV SERIES ENGINEERED DRY CHEMICAL FIRE EXTINGUISHING SYSTEM
OPERATION, DESIGN, & SERVICE MANUAL
REV C
Document # DOC324
Issued: April 26, 2018
Revised: March 22, 2022
UL FILE # EX27541
Section 3 System Design
3.3.4 Duct Coverage, VPSB
e D/P Nozzle will protect either round or rectangular ducts
up to 28 ft (8534 mm) in length. Any change in duct direction
or additional length requires an additional D/P nozzle. e
duct nozzle must be centered at the duct entrance, pointed in
the direction of air flow. e tip of the duct nozzle must be
within 6 in (152 mm) of the duct entrance.
Round Ducts
Maximum Diameter, Single Nozzle = 46 in (1168 mm)
Maximum Diameter, Two Nozzles = 52 in (1321 mm)
(nozzle spacing: .5 x duct diameter, located on the same plane)
Rectangular Ducts
e Table 3.3.4 shows sample maximum rectangular dimensions, based on the following two requirements:
Maximum Perimeter = 144.5 in (3670 mm)
Maximum Diagonal = 46 in (1168 mm)

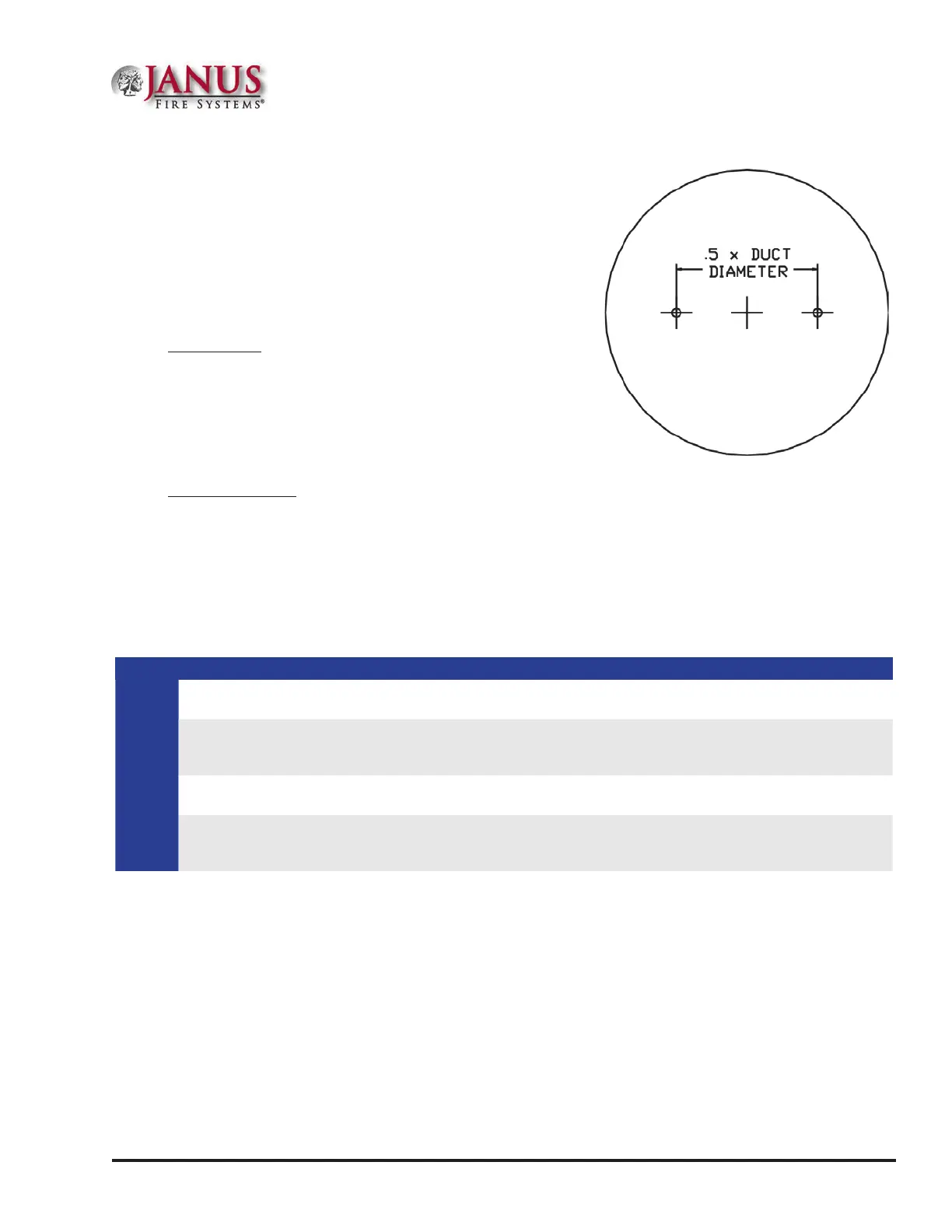

Figure 3.3.4 Spacing For Two Nozzles,
Round Duct
Table 3.3.4 Rectangular Duct Dimensions
Side 1,
inch
12 14 16 18 20 22 24 26 28 30 32 32.5 34 36 38 40 42 44
Side 2,
inch,
MAX
44.4 43.8 43.1 42.3 41.4 40.4 39.2 37.9 36.5 34.8 33 32.5 31 28.6 25.9 22.7 18.7 13.4
Side 1,
mm
305 356 406 457 508 559 610 660 711 762 813 826 864 914 965 1016 1067 1118
Side
2, mm,
MAX
1128 1113 1095 1074 1052 1026 996 963 927 884 838 826 787 726 658 577 475 340
