MV & LV SERIES ENGINEERED DRY CHEMICAL FIRE EXTINGUISHING SYSTEM
OPERATION, DESIGN, & SERVICE MANUAL
REV C
Document # DOC324
Issued: April 26, 2018
Revised: March 22, 2022
UL FILE # EX27541

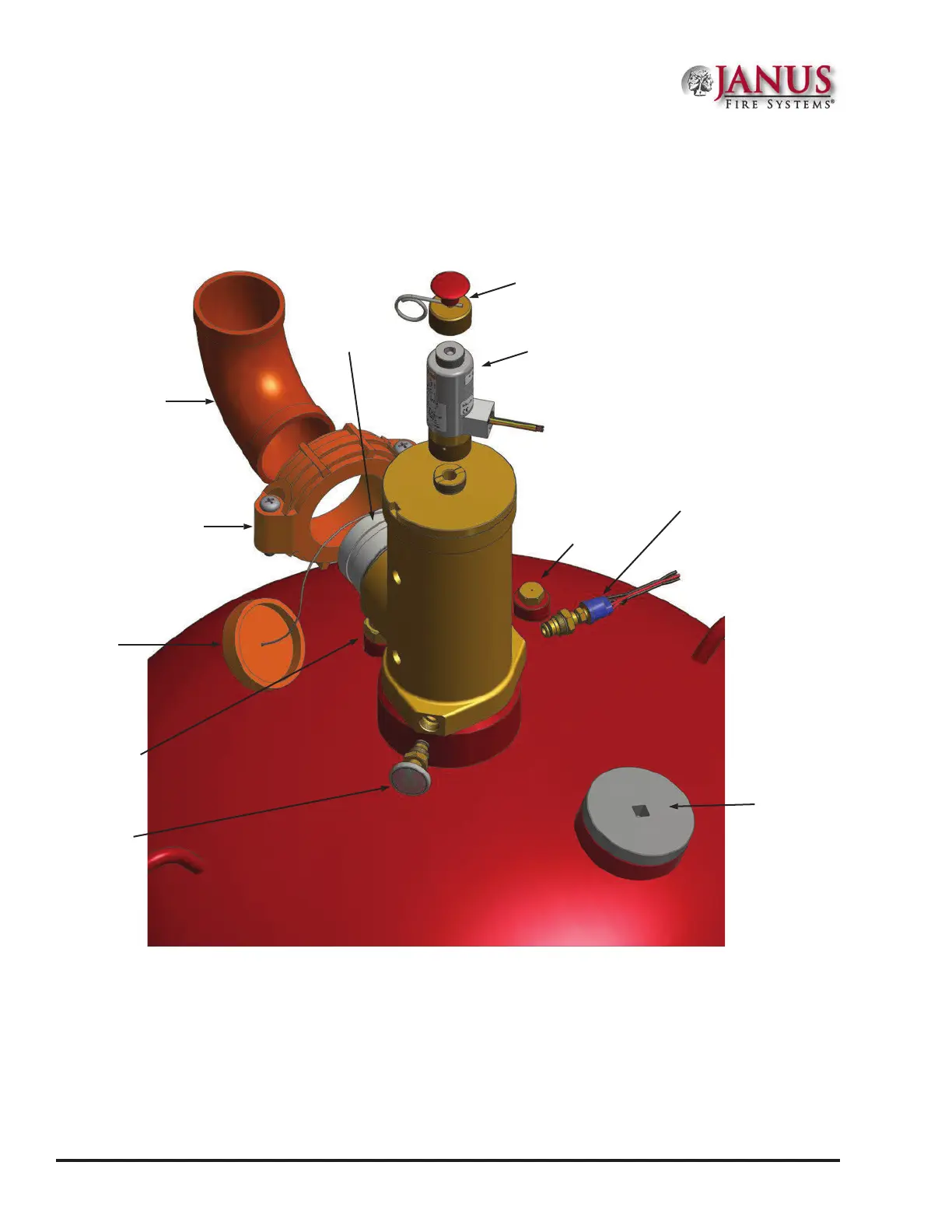

Figure 2.1.3.3b Lv Cylinder Valve w/ Trim Kit (Single Cylinder System)
Discharge
Outlet
Manual Valve
Actuator
(P/N 17001)
3” Grooved Coupling
(80 mm)
(P/N 18554)
Shipped with Cylinder Valve
as part of Anti-Recoil Safety
Device
3” Grooved
Elbow
(80 mm)
(P/N 18550)
Electric Valve Actuator
w/ Supervisory Limit Switch
(P/N 20722)
Pressure
Gauge
Assembly
(P/N 25804)
Pressure
Vent Port
Axed to
Cylinder
Agent Fill Port
Axed to
Cylinder
Low-Pressure
Supervisory Switch
Assembly
(P/N 22946)
Anti-Recoil
Safety Cap
Shipped with
Cylinder Valve
as part of
Anti-Recoil Safety
Device
Section 2 System Components and Description
Rupture Disc
Axed to
Cylinder
