MV & LV SERIES ENGINEERED DRY CHEMICAL FIRE EXTINGUISHING SYSTEM
OPERATION, DESIGN, & SERVICE MANUAL
REV C
Document # DOC324
Issued: April 26, 2018
Revised: March 22, 2022
UL FILE # EX27541

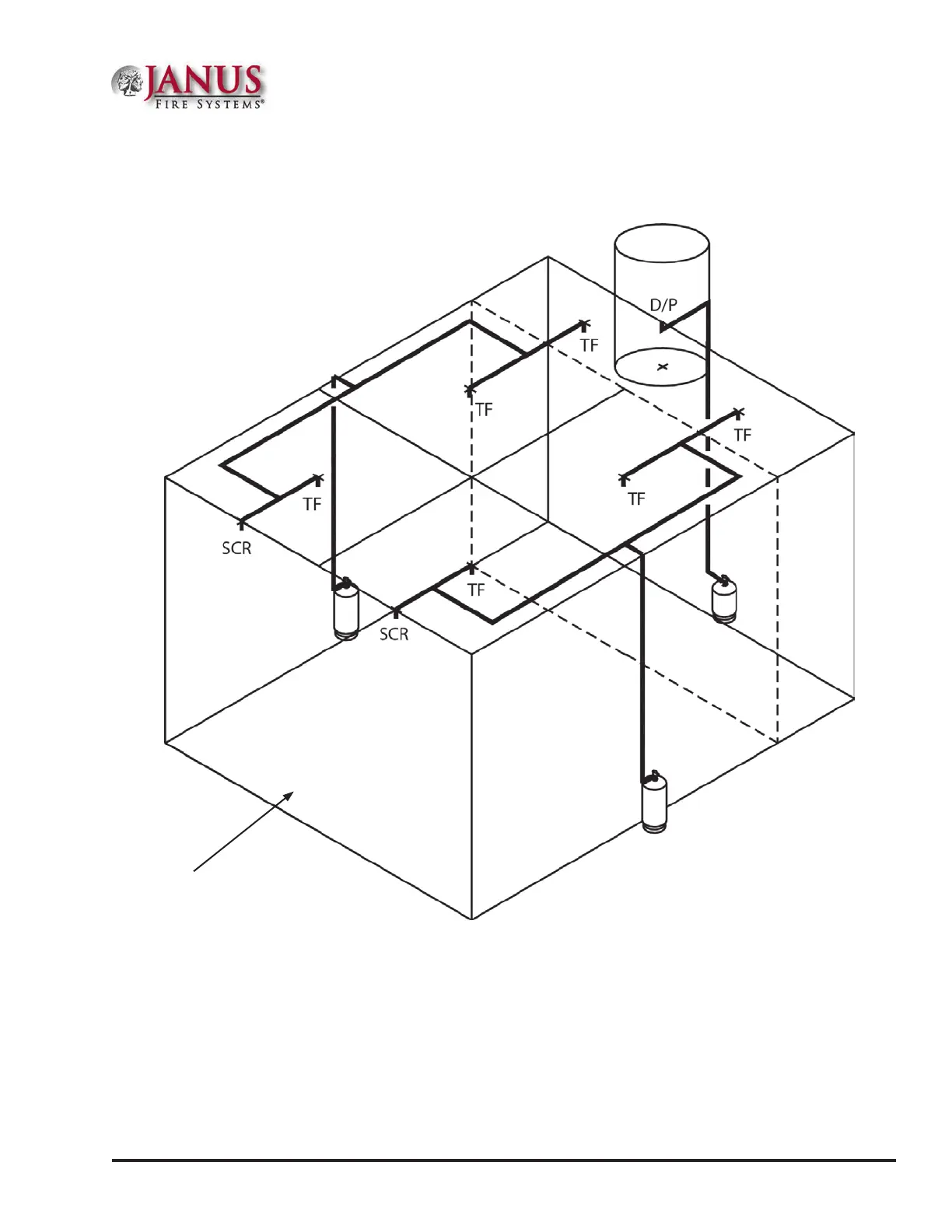

Figure 3.4.3a Open Front Paint Spray Booths (OFPSB) Nozzle Placement, Example
OPEN FRONT
Section 3 System Design
