Jay electronique Orion OREL User Manual

- 81 -Orion - 324501H
DE
FREN
1

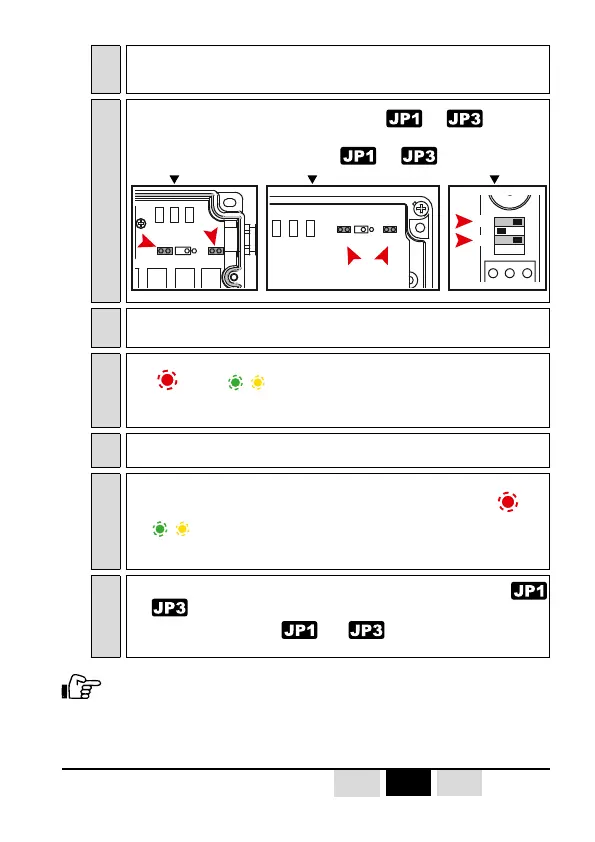

ORRS and ORRA receivers : Switch off the receiver
ORRD receiver : the receiver can remain powered up throughout the procedure.
2
ORRS and ORRA receivers : install the jumpers and to confi gure
the settings.
ORRD receiver : set the microswitches
and to the «ON» position
R2
R3
R4
V1 V2 V3
JP1
JP2
JP3
V1 V2 V3
JP1
JP2
JP3
JP2
JP4
V1 V3 V2
JP3
ONOFF
JP1
ORRS ORRA ORRD
3
ORRS and ORRA receivers : Switch on the receiver
ORRD receiver : go to the next step
4
-
V2
and
V3
ORRA
ORRS
ORRD
LEDs are blinking.
- The receiver waits for an identity code reception (pressure on a transmitter
function button) to auto-confi gure its relays.
5
If transmitter is equipped with an «On/Off» button, switch on the transmitter.
6
Press on one transmitter button (anyone) and maintain button pressed to
associate transmitter with the receiver, until receiver LEDs
V2
and
V3
ORRA
ORRS
ORRD
go off.
The receiver has received the command to assign the buttons and identity code
of the transmitter to the function relays.
7
ORRS and ORRA receivers : switch off the receiver and remove the
and jumpers.
ORRD receiver : set the and microswitches to the «OFF»
position
If no transmitter button is activated during this programming
procedure, the receiver parameter settings (buttons / relay
association, interlocking and operating mode previously
programmed) will not be erased.
DRAFT a
