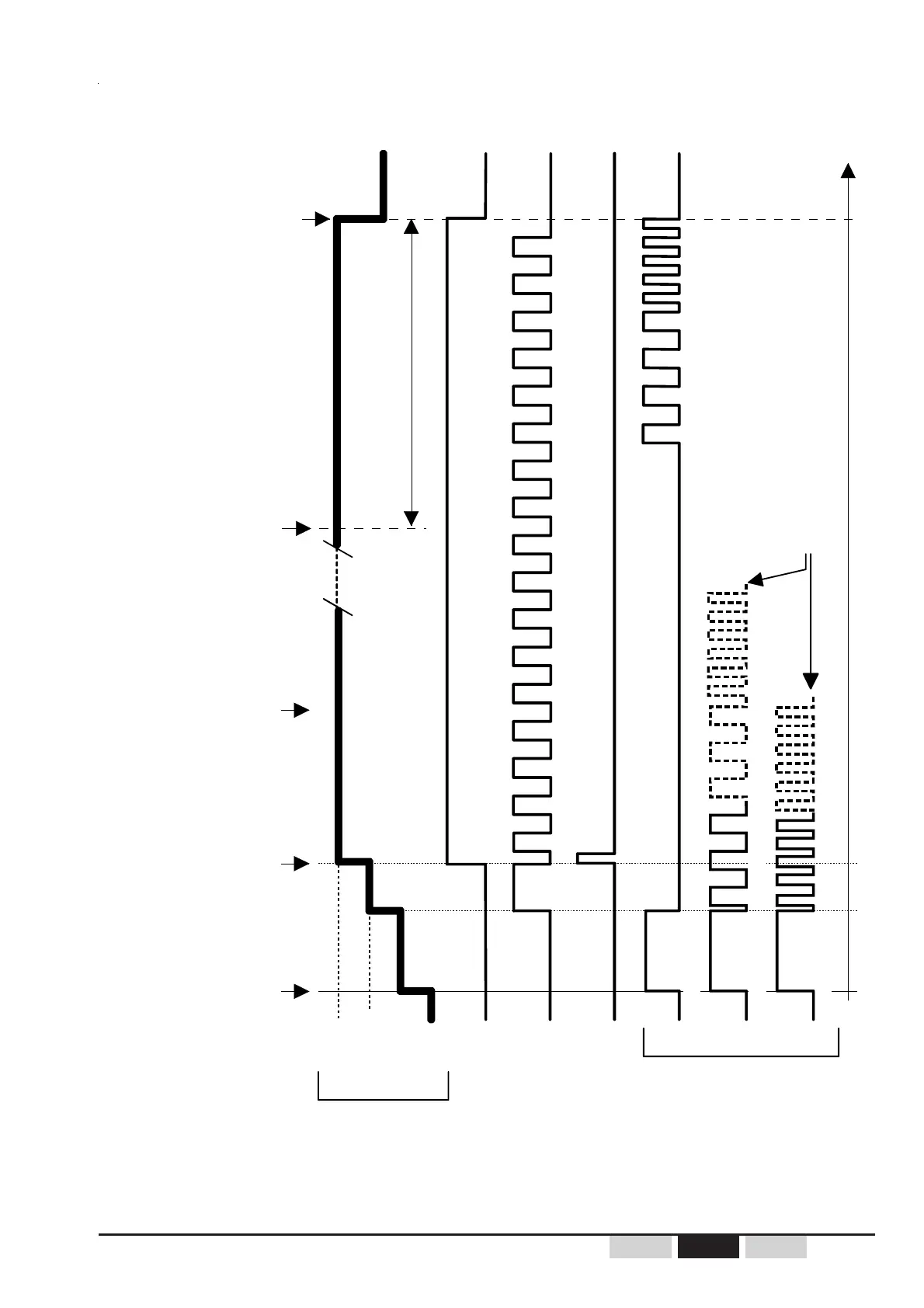

6.2.1- Startup block diagram
T
Red stop palmswitch button unlocked URE transmitter powered up.
Green "On/Horn" button pressed
OFF
Standby
Active
UTILISATION
(2)
Battery charge > 50 % 50% > Battery charge > 10% Battery charge < 10%
2s 2s
2s
Initialization
2s
Last action on function pushbuton
Passive shutdown when : "Dead man" duration is exceeded
(1)
or Battery is disconnected/discharged (2) or Electronic key removed from URE in operation
Active shutdown by pressing stop palmswitch button
OR
4 states of URE
(1) "Dead man" duration
Battery charge < 50% ...
< 10%
URR safety relays
URE green indicator light
Red indicator light of UDF
(if IR start-up option installed)
3 states of orange indicator light of URE (battery charge state)
Passive shutdown : battery is discharged
