- 64 - UR - 323245JFR EN DE
STOP

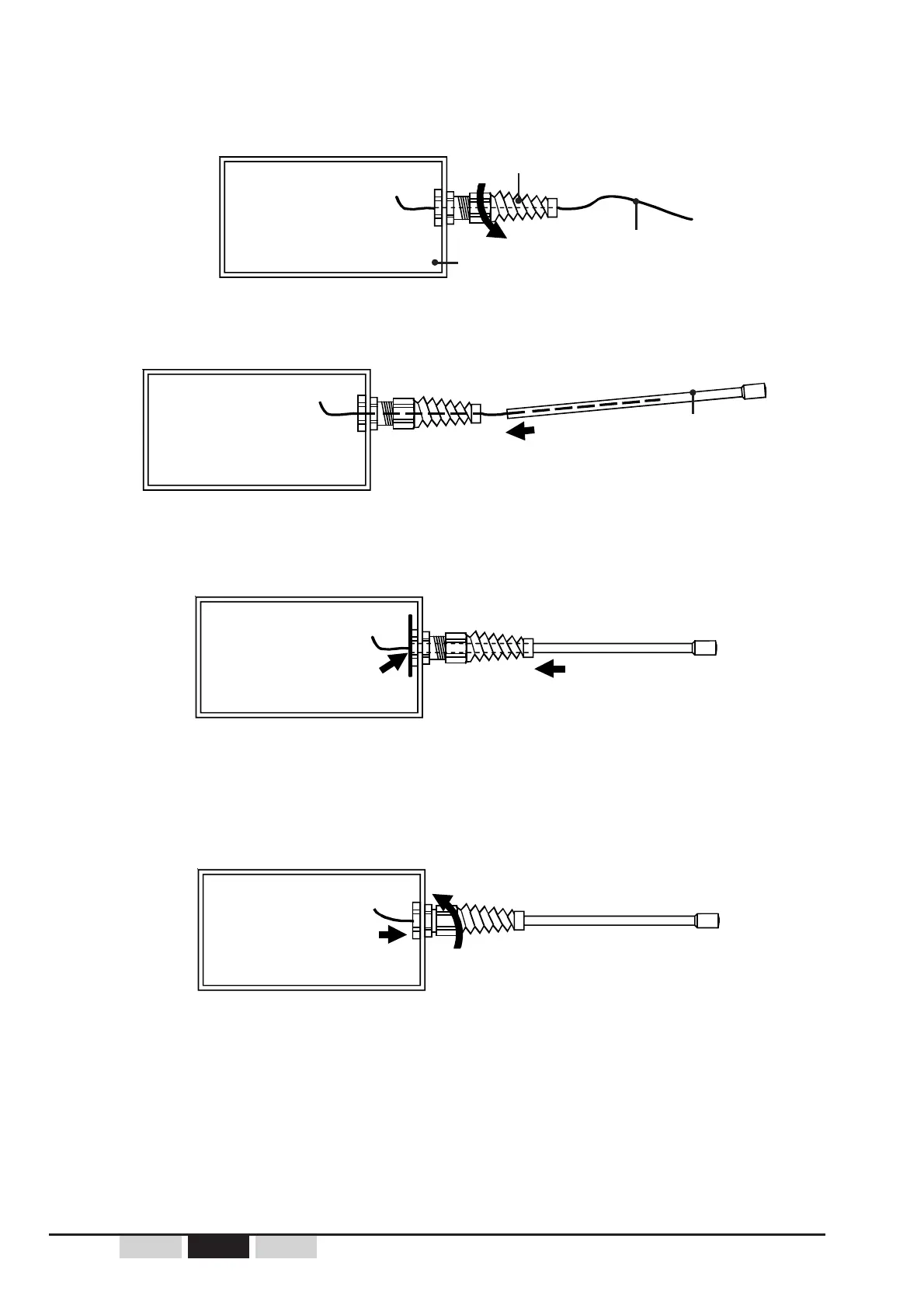

1- Open the receiver housing and unscrew the spiral nut used to secure the antenna.
2- Insert the antenna wire in the guide.
3- Slide the guide into the spiral nut, then fully into the cable gland base upto the limit in
the base.
4- Tighten the spiral nut to the sticking point, then add a quarter turn to lock the antenna
guide and ensure tightness of the assembly. Check that the guide is securely mounted.
Check that the antenna entered at most the guide to allow an optimal reception.
Receiver housing
Spiral nut
Guide
5.4- Installation of receiver antenna before comissioning
Antenna wire
