1.2- Delivery configuration
• Radio channel number : Channel 01 : 433.100 MHz.
• Duration of the temporization for the "Dead Man" function (automatic shutdown of remote
control in case of prolonged non-use) :
- Programmed for 4mn. as standard timing
• Button / relay configuration and button interlocking:
- Complies with definition of equipment on order, standard or special (customisation sheet).
• Locking of the URE transmitter programming access :
- The transmitter is supplied "unlocked", the "Dead man" duration and "Frequency" configurations
can be directly modified by a trained operator (see chapter "configuring the UR radio
remote control").
Various types of button can be used on the URE transmitter :
- One-step pushbuttons (single speed) «BPSV» :
- Two-step pushbuttons (double speed) «BPDV» :
- Rotary switches with 2 fixed positions «COM2» :
- Rotary switches with 3 fixed positions «COM3» :
- Rotary switches with 3 positions with automatic return «COM3R» :
R
2
1
R
2
1
R
1
1,2
1

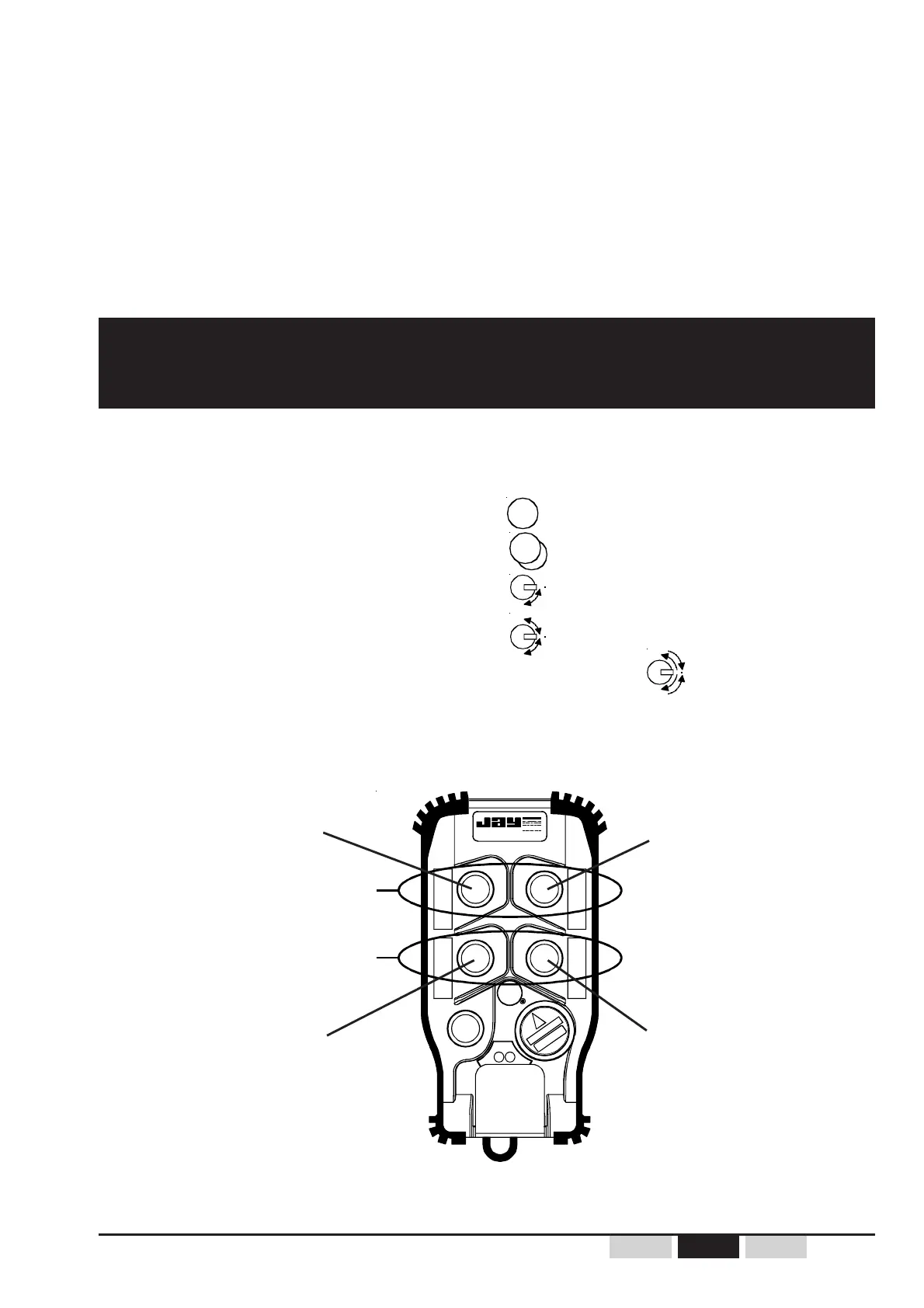

The function buttons are grouped by "couples" and form two "rows" on the transmitter :
row n°1
row n°2
button n°4
button n°3
button n°2
button n°1
The possible button configurations are listed in a table in §3.1.



2- Type and specification of function buttons on
URE transmitter
